Problem Meets Sonnet Solution

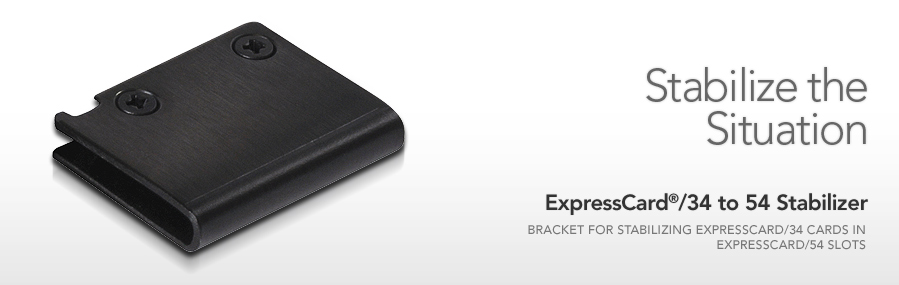

ExpressCard/34 to 54 Stabilizer AttachedIf your laptop computer has an ExpressCard/54 slot, using ExpressCard/34 adapter cards doesn’t have to be problematic— ExpressCard/54 and ExpressCard/34 cards share the same connector and plug in the same way. But if you use a smaller card with cables connected to it, you may be in for a nasty surprise. The ExpressCard/54 slot was designed to accommodate smaller cards, using a guide that guides an ExpressCard/34 adapter into place to mate the connectors properly as you insert the card into the slot. Unfortunately, this guide won't keep an ExpressCard/34 card from shifting in the slot and potentially disconnecting the card and anything connected to it. Sonnet's ExpressCard/34 to 54 Stabilizer helps prevents the problem. This steel bracket clamps to the side of an ExpressCard/34 adapter to make it just wide enough to fit snugly in an ExpressCard/54 slot and prevent free side-to-side movement, providing needed stability. The ExpressCard/34 to 54 Stabilizer is easily attached and removed, and is compatible with most ExpressCard/34 adapter cards.

Key Features

Stabilizes an ExpressCard/34 Card in an ExpressCard/54 Slot—Added width helps prevent adapter card from shifting and disconnecting

Easy Installation—Clamps to the edge of the adapter card and secured with included screws

Shadow

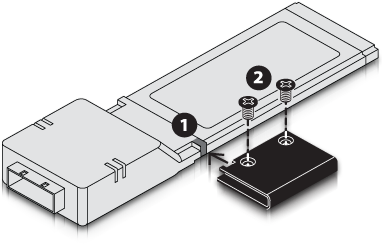

ExpressCard/34 to 54 Stabilizer Installation
Part No.
SBLZR-E54

Discontinued

Hardware
Warranty 2-year
Form Factor Computer bracket
Dimensions (WxDxH) 21.75 x 27 x 5 mm
RoHS Compliant Yes
Package Contents
  • ExpressCard/34 to 54 Stabilizer

  • Screws



Specifications subject to change without notice.







Compatibility

Compatible with most ExpressCard/34 cards

Compatible Sonnet ExpressCards

4-Port USB 2.0 ExpressCard/34

FireWire 800 Pro ExpressCard/34

FireWire/USB ExpressCard/34

Pro Dual CompactFlash Adapter ExpressCard/34

SDHC Adapter for SxS Camera Slot

SDXC UHS-I Reader/Writer ExpressCard/34

Tempo edge SATA 6Gb/s ExpressCard/34

Tempo SAS Pro ExpressCard/34

Tempo SATA 6Gb/s ExpressCard/34

Tempo SATA edge ExpressCard/34

Tempo SATA ExpressCard/34

Tempo SATA Pro ExpressCard/34

USB 3.0 ExpressCard/34



Mac OS LogoWindows LogoExpressCard LogoroHS Logo
