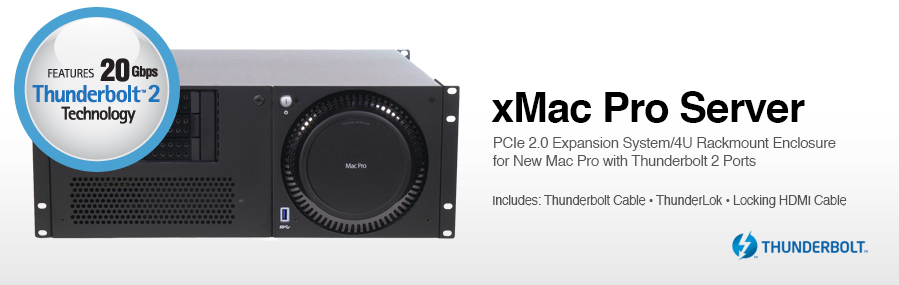

xMac Pro Server Thunderbolt 2 PCIe Enclosure

Part No.
XMAC-PS
Hardware
Warranty	2-year
Dimensions (WxDxH)	19 x 16 x 7 in. (48.3 x 40.6 x 17.8 cm)
Rack Depths Supported	16 to 26 in. standard 22.5 to 32.5 in. with optional Extension Rails
Weight	32.5 lbs (14.7 kg)
Rack Depths Supported	16 to 26 in. standard 22.5 to 32.5 in. with optional Extension Rails
External Connectors	Two RJ-45 Gigabit Ethernet port extensions Four USB 3.0 port extensions (one front-mounted, and three rear-mounted) One HDMI port extension One 3.5 mm audio (in or out) extension One C-13 power port extension
Internal Connectors	One 6-pin Mini-Fit Jr (same type as on legacy Mac Pro motherboard; provides up to 75W of power for PCIe cards that require supplemental power) One C-13 power
PCIe Expansion Slots	Top to Bottom One x8 mechanical (x4 electrical) PCIe 2.0 One x16 mechanical (x8 electrical) PCIe 2.0 One x8 mechanical (x8 electrical) PCIe 2.0
PCIe Cards Supported⁽¹⁾	Three full-length PCIe cards, or One full-length, double-width PCIe card, plus one single-width card
Compatible PCIe Cards⁽²⁾	Up-to-date PCIe cards listed on our supporting PCIe Card Thunderbolt Compatibility Chart
Power Supply	Universal 300W, 115-230V AC, 50-60 Hz
Operating Temperature	0º C to 35º C (32º F to 95º F)
RoHS Compliant	Yes
Package Contents	xMac Pro Server (includes PCIe card expansion module; computer mounting module with one HDMI, one 3.5 mm audio (in or out), one power, two Gigabit Ethernet, and four USB 3.0 pass-through cables; assembled) Thunderbolt cable ThunderLok Thunderbolt connector retainer clip⁽³⁾ Locking HDMI cable Power cord 5/64-inch hex wrench Documentation Notes: Mac Pro, PCIe cards, Mobile Rack Device Mounting Kits, and Twin 10G sold separately. Mac Pro Wi-Fi and Bluetooth antenna shielded from effective use upon installation.
Specifications subject to change without notice.

Compatibility

Mac Pro (Late 2013)

OS X® 10.9.5+

macOS Monterey compatible

PCIe Card Compatibility

For up-to-date PCIe card compatibility see our PCIe Card Thunderbolt Compatibility Chart

For maximum PCIe bandwidth, dedicate one Thunderbolt 2 bus to the PCIe expansion slots.

Technical Notes

Mac Pro and PCIe cards sold separately.
Compatibility requires the installation of Thunderbolt technology-aware drivers, available from the manufacturer. See our supporting PCIe Card Thunderbolt Compatibility Chart for a list of up-to-date compatible PCIe cards.
ThunderLok compatible with all copper Thunderbolt cables. Not yet compatible with optical Thunderbolt cables.
Power supply will operate at 90-115V AC, with linear power deration of 240W-300W over that range.
Twin 10G installation supported only when no Mobile Rack Device Mounting Kit is installed; Twin 10G Mounting Kit required.

Accessories		Part No.	Description
	ThunderLok Thunderbolt Connector Retainer Clip (2-Pack)	TB-LOK2	Secures copper Thunderbolt cables with ThunderLok-compatible products
	Avid Pro Tools\|HDX PCIe Card Power Adapter Cable	TCB-HDXB	Avid Pro Tools\|HDX PCIe Card Power Adapter Cable for Echo Express III-D or III-R, xMac mini Server or Pro Server
	Power Cable (OWC Excelsior)	TCB-EXCEL	Cable, Power, for OWC Excelsior in Sonnet Echo Express III-D/R, xMac Pro Server, and xMac mini Server
	Twin 10G	TWIN10G-TB2	Thunderbolt 2 to Dual-Port 10 Gigabit Ethernet Adapter
	Twin 10G Mounting Kit	Twin 10G Mounting Kit	Twin 10G Mounting Kit for xMac Pro Server
