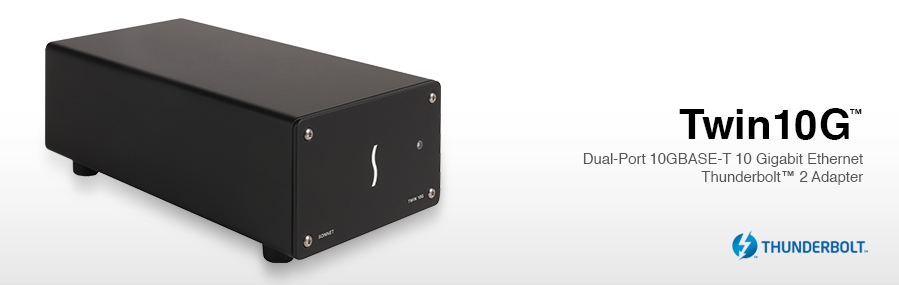

Lightning-Fast 10GBASE-T Connectivity Over Thunderbolt 2

With increasing demand for greater data transfer speeds, more bandwidth, and support for 4K video editing via shared storage systems, the need for 10 Gigabit Ethernet (10GbE) networking has skyrocketed. Now that very affordable 10GbE switches with RJ45 (copper) are available, the cost of setting up a 10GbE infrastructure has been significantly reduced. The problem is, most computers aren’t equipped to get you connected. If you have a computer with a Thunderbolt port, Sonnet has a simple solution—the Twin 10G.

10GbE & Thunderbolt Logos
inexpensive CAT 6 or CAT 6A copper cabling at distances up to 55 or 100 meters, respectively. This adapter is a powerful and cost-effective way to add dual-port 10GBASE-T connectivity to your Mac® with Thunderbolt 2 or Thunderbolt ports, or Windows® computer with Thunderbolt 2 ports.

Aluminum LogoSmall and Quiet

Measuring just 4 inches wide, by 8.25 inches long, x 2.75 inches high, the Twin 10G is small enough to easily fit in most workspaces. To ensure its operation doesn’t get in the way, the adapter’s temperature-controlled, variable-speed fan keeps the device running cool and whisper-quiet at all times, making it suitable for use in noise-sensitive environments.

Simple Configuration, Advanced Features

The Twin 10G is easy to set up—after connecting to your computer, configure it through the macOS® or OS X® Network control panel, or Windows Device Manager. Further configuration enables you to activate its advanced features: link aggregation (teaming)(1) of its two 10GbE ports increases throughput beyond what a single connection can sustain; transparent failover between 10GbE ports keeps your computer connected in case a single cable is disconnected or one of the ports fails; and jumbo packet (jumbo frame) support can increase throughput and reduce CPU utilization.

10x the Performance of Gigabit Ethernet

This Sonnet solution is perfect for high-performance computing where low latency, high bandwidth, and low CPU overhead are required. Its increased throughput performance and low host-CPU utilization are achieved with stateless offloads, allowing your computer to perform better while large files transfers or high I/O operations take place.



Key Features

Adds 10GbE Connectivity—Simple way to add dual RJ45 10 Gigabit Ethernet ports to your Thunderbolt 2- or Thunderbolt-enabled computer

Cost Effective—Connects to 10GbE infrastructure via inexpensive CAT 6 or CAT 6A cables at distances up to 55 or 100 meters, respectively

Mac and Windows Compatible—One-size-fits-many solution for mixed computer environments

Small and Quiet—Compact enough to sit on most any work surface, and quiet enough for use in noise-sensitive environments

Easy Setup—Simple driver installation, configured through OS X or macOS Network control panel, or Windows Device Manager

Supports Link Aggregation (Teaming)—Increases throughput beyond what a single connection can sustain

Supports Transparent Failover—Keeps your computer connected in case a single cable is disconnected or one of the ports fails

Two Thunderbolt 2 Ports—Maximum performance with computers with 20Gbps Thunderbolt 2 technology, works with Mac computers and other devices equipped with 10Gbps Thunderbolt technology. Daisy chain up to an additional five devices.

Thunderbolt Cable & ThunderLok Included—Includes 0.5-meter Thunderbolt cable and ThunderLok Thunderbolt connector retainer clip to secure cable against accidental disconnections

Shadow

20Gbps Thunderbolt 2 Interface

The Twin 10G features a dual-port 20Gbps Thunderbolt 2 interface that offers ample bandwidth to support the adapter’s high performance, supports daisy-chaining of up to five additional Thunderbolt peripheral devices to a single port on your computer, and includes support for connecting a 4K video monitor. The Twin 10G is also compatible with older Mac computers with 10Gbps Thunderbolt.

Thunderbolt Cable and ThunderLok Included

The Twin 10G adapter includes a 0.5-meter Thunderbolt cable to connect to your computer, and a Sonnet ThunderLok Thunderbolt connector retainer clip(2) to secure the cable to the adapter. The ThunderLok helps prevent accidental cable disconnects that can lead to data loss, securing the Thunderbolt cable to the adapter. ThunderLok is easy to install and use—just slide it over one of the cable’s connectors, plug in the connector, and then secure it to the adapter by turning a thumbscrew. Because the clip doesn’t attach to the connector, it remains on the cable and won’t get lost when not in use.



Sonnet 10 Gigabit Ethernet PCIe Cards & Thunderbolt Adapters

Product
Interface(s)
10G Support
5G/2.5G Support†
Controller
macOS§
Windows
Linux,
FreeBSD
RJ45 Port
CAT 6A (100m)
CAT 6 (55m)
CAT 5e (100m)
Aquantia AQC107S
macOS 10.13.6+
Windows 10, 8, 7;
Server 2016, 2012
Linux
2x RJ45 Ports CAT 6A (100m)
CAT 6 (55m)
CAT 5e (100m)‡ Intel x550 macOS 10.8.5+ Windows 10, 8, 7;
Server 2016, 2012,
2008 R2
(64-bit)
Linux, FreeBSD
2x SFP+ Sockets* LC, Optical
CAT 6A (30m)
  Intel 82599 macOS 10.8.5+ Windows 10, 8, 7;
Server 2016, 2012,
2008 R2
(64-bit)
Linux, FreeBSD
2x RJ45 Ports CAT 6A (100m)
CAT 6 (55m)
  Intel x550 macOS 10.8.5+ Windows 10
(64-bit)

2x SFP+ Sockets* LC, Optical
CAT 6A (30m)
  Intel 82599 macOS 10.8.5+ Windows 10
(64-bit)

RJ45 Port CAT 6A (100m)
CAT 6 (55m)
CAT 5e (100m) Aquantia AQC107S macOS 10.13.6+ Windows 10
(64-bit)

2x RJ45 Ports CAT 6A (100m)
CAT 6 (55m)
  Intel x550 macOS 10.12.6+ Windows 10
(64-bit)

2x SFP+ Sockets* LC, Optical
CAT 6A (30m)
  Intel 82599 macOS 10.12.6+ Windows 10
(64-bit)


* 10GBASE-SR, 10GBASE-LR or 10GBASE-T SFP+ transceiver(s), or SFP+ cable(s) required, sold separately.
† 5Gb/s and 2.5Gb/s speeds supported when used with NBASE-T compatible (multi-Gigabit) switches.
‡ Intel x550 supports NBASE-T only under Windows and Linux. A firmware update may be required.
§ All products listed here are macOS Mojave compatible. Sonnet recommends macOS 10.13.4+ when connecting via SMB protocol.
* See product page for details




 See Tech Specs Tab for footnotes
Part No.
TWIN10GC-TB2 Twin 10G Thunderbolt 2 Edition Dual-Port 10GBASE-T 10 Gigabit Ethernet Thunderbolt 2 Adapter
Hardware
Warranty 1-year
Form Factor Thunderbolt adapter
External Connectors
  • Two Thunderbolt 2 ports
  • Two RJ45 ports
  • 12V power port
10GbE Controller Intel X550
Network Support

10GBASE-T
• 100 meters using CAT-6A cabling
• 55 meters using CAT-6 cabling

5GBASE-T(1), 2.5GBASE-T(1), 100BASE-T
• 100 meters using CAT 5E, CAT 6, or
CAT 6A cabling

Link Aggregation
(Teaming)
Supported(2)
Packets Maximum packet size: 15872 bytes (jumbo frames)
Advanced Features
  • Flow control support
  • Message Signaled Interrupts (MSI)
  • RSS (Receive-Side Scaling)
  • Interrupt coalescing
  • Multicast filtering
  • 64-bit address support for systems using more than 4GB of physical memory
  • Wake-on-LAN not supported

Stateless Offloads

  • TCP, UDP and IPv4 checksum offloading
  • TSO (TCP Segmentation Offload, AKA Large Send Offload)
  • LRO (Large Receive Offload)
Power Adapter Universal 60W, 100-240V AC, 50-60 Hz
Operating Temperature 0˚C to 35˚C (32˚F to 95˚F)
Dimensions WxDxH: 4.9 x 6.3 x 2.7 in. (12.5 x 16 x 6.8 cm)
Weight (including power supply) 2.95 lbs. (1.34 kg)
RoHS Compliant Yes
Package Contents • Twin 10G Thunderbolt 2 Edition Dual-Port 10GBASE-T 10 Gigabit Ethernet Thunderbolt 2 Adapter
• 0.5m Thunderbolt cable
• ThunderLok Thunderbolt connector retainer clip(3)
• Universal power adapter
• Power cord
• Documentation



Specifications subject to change without notice.

white space









Mac Compatibility

Mac with Thunderbolt or Thunderbolt 2 ports

Mac with Thunderbolt 3 ports with an Apple Thunderbolt 3 (USB-C) to Thunderbolt 2 Adapter

OS X 10.8.5+

macOS Mojave compatible

Windows Compatibility

Computer with a Thunderbolt 2 port

64-bit editions of Windows 10, 8, 7

Technical Notes

  1. 1. Intel x550 supports NBASE-T only under Windows and Linux. A firmware update may be required.
  2. Switch/router must support link aggregation (teaming) and ports must be configured for link aggregation. Windows 10 teaming requires Creator's update, version 1703 or greater.
  3. ThunderLok compatible with all copper Thunderbolt cables. Not compatible with optical Thunderbolt cables.

Mac LogoWindows LogoroHS Logo



Accessories Part No. Description
Thunderbolt 2 Cable Thunderbolt 2 Cable TCB-TB-05M 0.5-meter Thunderbolt 2 cable (compatible with original Thunderbolt)
Thunderbolt 2 Cable Thunderbolt 2 Cable TCB-TB-1M 1-meter Thunderbolt 2 cable (compatible with original Thunderbolt)
Power Adapter Power Adapter (12V, 5A) PWR-5A-12VA Spare power adapter
