Improve Your “Peripheral Vision”

Usage implication vignetteEverybody with a computer has peripherals with USB 2.0 or FireWire® 400 (1394a) connectors—keyboards, mice, printers, scanners, digital cameras, iPod® mobile digital devices, external hard drives, and DV camcorders to name a few—but computers never seem to have enough ports to connect them all. Plug and unplug peripherals all the time? Talk about inconvenient. Hubs—who needs them? Install Sonnet’s Tango™ 2.0 card into your computer to instantly add the USB 2.0 and FireWire 400 ports you need!

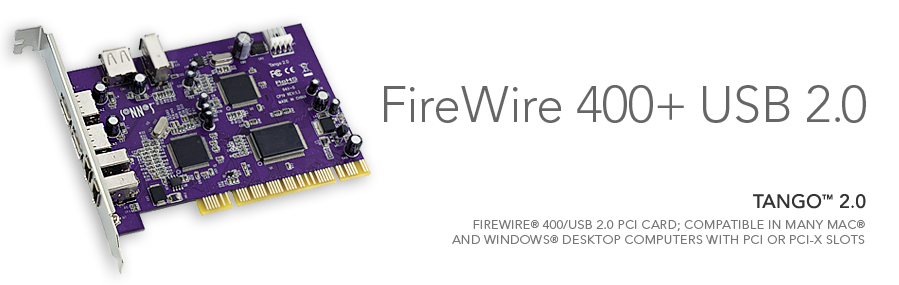

Sonnet's Tango 2.0 adds three (two external plus 1 internal) USB 2.0 and three (two external plus 1 internal) FireWire 400 ports to your computer. This adapter card installs easily into one of your computer’s PCI slots, features hot-pluggable and hot-swappable device connection support with automatic device configuration, and works with all industry-standard USB 2.0 and FireWire 400 peripherals.



Key Features

Simple way to add USB 2.0 ports (2 external + 1 internal) and FireWire 400 ports (2 external + 1 internal) to any compatible computer

Easy installation—plug and play

Supports all industry-standard FireWire 400 (a.k.a. i.LINK®, 1394a), and USB 1.1/2.0 peripherals

Supports hot-swappable device connection—plug in and disconnect peripherals without shutting off your computer

Shadow


From importing and editing video files to backing up your computer, FireWire 400 offers exceptional speed for digital-intensive work. For connecting almost any peripheral, USB 2.0 can’t be beat. Get a Tango 2.0 to expand your computer and your possibilities at the same time!

a Fusion D400Q, a camcorder, and an external single hard drive.





Part No.
FWUSB2A Discontinued
Hardware
Warranty 1-year
Bus Interface PCI
Number of Ports FireWire 400: 2 external + 1 internal, USB 2.0: 2 external + 1 internal
RoHS Compliant Yes
FireWire Support
Standard IEEE 1394A compliant
Cables Supported 6-pin male FireWire 400 cables
Peripherals Supported Supports all industry standard FireWire 400 peripherals
Data Transfer Rates 400/200/100 MBits/s
Number of Devices Supported Up to 63 (data only)
Hot Plug Supports hot-pluggable and hot swappable device connection
Target Disk Mode Not supported
Chipset NEC
USB Support
Standard USB Specification v. 1.0/1.1/2.0 compatible. Complies with OHCI (Open Host Controller Interface) and EHCI (Enhanced Host Controller Interface)
Cables Supported USB 2.0 with Standard-A male connector
Peripherals Supported Supports all industry standard USB 2.0/1.1 peripherals
Data Transfer Rates 480/12 Mbits/s
Number of Devices Supported Up to 127
Hot Plug Supports hot-pluggable and hot swappable device connection



Specifications subject to change without notice.










Mac Compatibility

Power Mac® G5 (with PCI or PCI-X slots only)

Power Mac G4

OS X® 10.5.2+, 10.4(1), or 10.3(1)

Mac OS® 9.2.2 (at USB 1.1 speed)

PC Compatibility

PC desktop (with PCI slot)

Windows® 8, 7, Vista®, XP (SP2)


Technical Notes

  1. Deep Sleep not supported under Mac OS X Versions 10.4 or 10.3.
