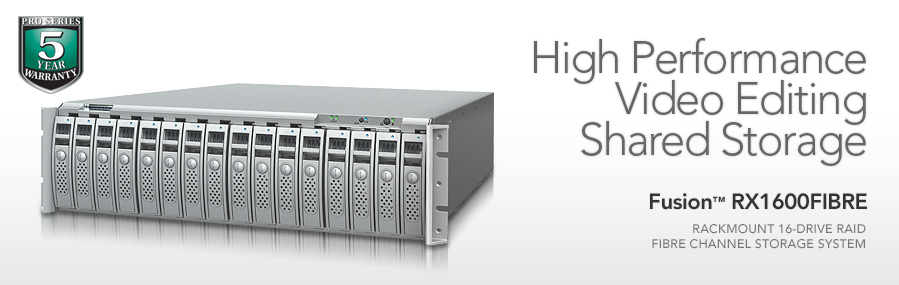

Performance So Good, You’ll Want to Share

Sonnet’s Fusion RAID systems have been providing fast, dependable, local storage for individual users for years. In the past, accessing files at high speed on another computer meant moving the system to the other computer. Today, files are centralized and served from fast network storage systems. Sonnet's Fusion RX1600Fibre 16-drive RAID Fibre Channel storage system provides multiple users with general purpose shared storage system. This 32TB, 48TB, or 64TB 3U rackmount system is designed to be the stellar performer for video editing workgroups. Fusion RX1600Fibre features a high-performance internal RAID controller with a high speed, 4-port 8Gb Fibre Channel interface that enables multiple users to connect and access data at the same time. This system can deliver 30 streams of ProRes 422 HQ (twice as many as general purpose Fibre storage), and also maintains aggregate stream capacity for multiple simultaneous clients—an area where general purpose Fibre storage falls behind.

Much Higher Stream Counts

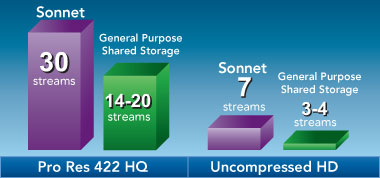

Fusion RX1600Fibre Streamcounts


Fusion RX1600Fibre boasts a 4-port 8Gb Fibre Chanel interface that enables it to deliver much higher stream counts to workgroups, with up to twice as many streams available than when using general purpose shared storage systems.

Big Performance for Small Workgroups

The Fusion RX1600Fibre storage system’s 8Gb Fibre Channel host interface can provide four workstations direct, high-speed access to stored assets without an added Fibre Channel switch—depending on your workflow and the SAN software used, even using a dedicated server is optional. Fusion RX1600Fibre delivers aggregate bandwidth up to 1,000 MB/sec, with high bandwidth available to individual workstations.

Higher Bandwidth

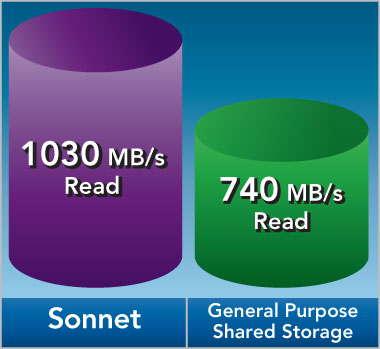

Fusion RX1600Fibre Bandwidth


Its fast interface and multipathing support enable Fusion RX1600Fibre bandwidth than general purpose shared storage systems.

Scalable Access

While ideal for small workgroups, the Fusion RX1600Fibre storage system is equally suited for use in larger storage area networks (SANs) with a switch and many video editing users. Because it employs a 4-port 8Gb Fibre Channel host interface rather than a common 2-port 4Gb interface, the Fusion RX1600Fibre offersScalable Access more speed and flexibility than general purpose shared storage systems. For example, you can connect two of the Sonnet system’s ports to a Fibre Channel switch to yield improved performance and redundancy for the general storage pool, while the remaining ports can be connected to two more workstations requiring the highest bandwidth. The high-speed 8Gb interface also delivers higher aggregate bandwidth, providing more users with up to one hundred percent more streams than general purpose shared storage systems.

Power and Excellent Handling

ATTO LogoDriving the Fusion RX1600Fibre storage system is the ATTO FastStream™ SC 8500E storage controller. This state of the art RAID engine is based on the latest-generation Intel® 81348 RAID processor. Running at 1.2 GHz and configured with 1GB of ECC-protected RAM, this controller can handle the throughput from all the drives with plenty of overhead, especially important to maintain data stream writes as the disk array nears capacity. Featuring ATTO’s exclusive Advanced Data Streaming (ADS™)ATTO ADS Logo Technology, this RAID controller provides controlled transfer acceleration for steady data streaming, especially important when working with video. ADS compensates for data transfer rate peaks and drops, maintaining a consistent data flow to allow more streams for the bandwidth available. The FastStream controller provides tunable rebuild priority, enabling the Sonnet system to deliver users full performance during a RAID group rebuild, unlike general purpose shared storage systems which typically experience a severe drop in performance during a rebuild.

Performance During Rebuilds

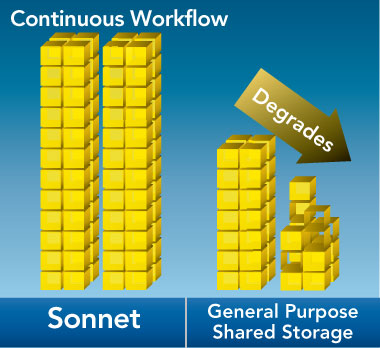

Fusion RX1600Fibre Rebuild Performance


Fusion RX1600Fibre maintains full read performance during RAID group rebuilds, allowing you to keep working, not waiting!

Key Features

Large Storage—32TB, 48TB, or 64TB capacity(1)

Perfect for Small Workgroups—4-port 8Gb Fibre Channel (FC) interface supports up to four users without the need for an FC switch, reducing cost, cabling, and complexity, while providing direct, high-speed access to stored assets

Great Flexibility—Easily integrated into larger SANS; drops into an Xserve® RAID domain, supports Final Cut Pro® Server environments, and also provides for AVID volume locking

High Performance for Multiple Users—Delivers aggregate bandwidth up to 1,000 MB/sec. read, and up to 100% more streams to multiple simultaneous users than general purpose shared storage systems

Full Read Performance During Rebuilds—Tunable rebuild priority enables you to continue working on your project with full read performance during a RAID group rebuild; doesn’t degrade like general purpose shared storage systems

Multipathing Support—Combines data paths from two or more FC ports to increase bandwidth and redundancy, and to provide load balancing for improved performance

File Protection—Supports RAID levels 4, 5, and 6 to protect data in case of a drive failure (two drives with RAID 6) while maintaining great performance

Monitored Operation—SES (SCSI Enclosure Services) and S.M.A.R.T. data reporting provide realtime monitoring and reporting of the enclosure and drives’ status

Easy, Economic Expandability—Internal SAS expanders enable you to connect Fusion RX1600 Expansion enclosures without the need for an additional RAID controller

Complete System—Includes enclosure with internal RAID controller, drive modules, cables, rackmount kit, software, and user's guides

Cross Platform Compatibility—Supports Mac®, Windows®, and Linux® computers

Shadow

Multipath I/O
Multipathing Support

The Fusion RX1600Fibre supports multipath I/O, a technique that enhances performance and fault tolerance, combining data paths from two or more Fibre Channel ports to increase performance and provide redundancy in case of a port or cable malfunction, the leading causes of storage failure. Multipathing additionally provides load balancing to distribute I/O across multiple paths for improved system and application performance.

RAID Flexibility

Fusion RX1600Fibre systems support RAID 4, 5, 6, and 10 drive formatting for balanced performance and file protection; RAID 1 for ultimate redundancy; and RAID 0 for pure, unadulterated speed; JBOD support is available, too. Fusion RX1600Fibre systems even support dedicated and global hot spares—you can set up your RAID groups so that one or more designated hot spare drives wait unused in the background to automatically replace a failed drive without you having to lift a finger. All this flexibility is accomplished without switches—the simple to use Web GUI enables you to optimize your setup for specific workflow requirements.

Status Supervisor

Hard Drive Monitoring IconThe reliability of the Fusion RX1600Fibre is further enhanced through SES (SCSI Enclosure Services) 2.0 compliance and enhanced S.M.A.R.T (Self-Monitoring Analysis and Reporting Technology) data reporting for each hard drive installed in the system. Built into the Fusion RX1600Fibre enclosure, SES functionality provides enhanced real-time monitoring and reporting of drive, power supply, and temperature status, with real time results displayed in the RX1600Fibre’s onscreen interface and the illumination of LEDs on the enclosure—warning alarms sound in case of a power supply or fan issue, too. You can also configure the system to automatically send email notifications to multiple addresses to notify you (and others) of an impending drive failure or other issue, enabling you to minimize downtime as a result.

Easy Storage Expandability

When you need access to more than 64TB of assets, Sonnet offers an economical upgrade path that is simple to deploy—Fusion RX1600 Expansion systems. Fusion RX1600Fibre storage systems feature dual internal SAS (Serial Attached SCSI) expanders that enable you to connect additional RX1600 Expansion systems in a daisy chain, no additional RAID controller card needed. This simplifies installation and significantly reduces your cost to expand capacity. As a matter of fact, incorporating more storage capacity is nearly as simple as installing additional Fusion RX1600 Expansion systems into the rack and connecting two cables. Of course, if you don't need access to all your files all the time, the Fusion storage system’s user-swappable drive modules enable you to easily change sets of drives as you go.

Driving Force

Enterprise DrivesFusion storage systems employ Enterprise/RAID Edition hard drives that have been selected for their superior performance, error handling, and reliability characteristics, especially when used in RAID groups. These drives are subjected to hours of additional, stringent testing to check for soft errors, vibration, and other reliability predictors. Just the sturdiest drives pass these tests and are prepared with special RAID-optimized firmware to become the building blocks of a super-reliable Fusion storage system.

Versatile Performance

These systems are ideal for use in mixed environments—various operating systems, editing applications and output demands requiring the flexibility and interoperability that Fusion RX1600Fibre storage systems provide. Fusion RX1600Fibre systems support OS X®, Windows®, and Linux® systems. They are compatible with capture cards from AJA, Blackmagic Design, Matrox, and Bluefish444, work with all mainstream video editing applications, and are compatible with file sharing SAN management software packages including, but not limited to Apple Xsan® 2, Tiger Technology metaSAN 4, and CommandSoft® FibreJet®. Fusion RX1600Fibre supports 8Gb, 4Gb, 2Gb, and 1Gb Fibre Channel host adapters.



Part No.
FUS-R16F Discontinued
Hardware
Warranty 5-year
External Connectors
  • Four 8Gb LC FC
  • Two mini-SAS
  • One RJ-45
  • One RJ-11
eSATA Interface Speed 3 Gb/s
Data Transfer Speed Up to 1040 MB/sec read, 740 MB/sec write, depending on configuration
Drives Supported Up-to-date compatible hard drives listed on our Certified Hard Drive Compatibility Chart
Supported Drive Configurations Hardware-based JBOD;
RAID 0, 1, 4, 5, 6, and 10
Supported Video Formats 2K (2048 x 1556) LOG RGB, 10-bit 1080 4:4:4 HD, uncompressed 8-bit 1080i HD, ProRes 422, DV, HDV, DVCPRO, and uncompressed SD
Power Supplies Redundant, hot-swappable 600W, 100-260V, 50/60Hz Universal
Power Consumption (Typical 3TB Hard Drives)
  • 270W Operating
  • 250W Standby
Operating Temperature +41º F to +104º F (5º C to +40º C)
Dimensions WxDxH: 17.4 x 25 x 5.2 in
(42.2 x 63.5 x 13.2 cm)
Weight (with drives) 59.5 lbs (27 kg)
RoHS Complaint Yes
Package Contents
  • Rackmount disk enclosure with internal RAID controller, 4-port 8Gb FC host interface, and two mini-SAS expansion ports
  • Two rackmount rail assemblies and mounting hardware
  • Sixteen 3.5" Enterprise/RAID drive modules
  • Two power cords
  • One 2-meter RJ-45 CAT 5 Ethernet cable
  • One 2-meter RJ-11 to DB9 RS-232 cable
  • Software CD
  • User’s guides













Hardware Compatibility

Mac, Windows, or Linux computer with a compatible Fibre Channel host controller card, operating system software, and if used, SAN software

OS Compatibility

OS X and OS X Server 10.4.8+

OS X Mavericks & Server compatible

Windows 8, Windows 7, Windows Vista®, Windows XP Pro, and Windows Server: 2008, 2003

Linux (RedHat ES 3, 4; Suse RedHat ES 3, 4; Suse Linux 9, 9.1, 9.2, 9.3, 10, 10.1 and the following architectures: i386; x86_64 (AMD64, Intel EM64T)

SAN Software Compatibility

Tiger Technology metaSAN

Apple® Xsan® 2

CommandSoft® FibreJet®

Quantum® StorNext®

Technical Notes

  1. Although hard drive manu facturers and Mac OS X 10.6 define 1 gigabyte as 1,000,000,000 byte, many other computer operating systems calculate a gigabyte by dividing the bytes by 1,073,741,824 (). This distinction may be a cause of confusion, as a hard disk with a manufacturer rating of 1000GB may have its capacity reported by the operating system as 915GB.



Specifications subject to change without notice.

Mac Logo Windows Logo Linux LogoeSATA LogoroHS Logo





  Product Part No. Description
Platinum Drive Modules Fusion 1TB RAID Drive Module FUS-RM6-1000GB Spare drive module for Fusion RX1600Fibre
Fusion 2TB RAID Drive Module FUS-RM6-2000GB Spare drive module for Fusion RX1600Fibre
Fusion 3TB RAID Drive Module FUS-RM6-3000GB Spare drive module for Fusion RX1600Fibre
Fusion RX1600Fibre Spare Fan Module Fusion RX1600Fibre Spare Fan Module XFAN-R16F Spare fan module
Fusion RX1600Fibre Spare Power Supply Module Fusion RX1600Fibre Spare Power Supply Module FUS-XPS-R16F Spare power supply module
Sonnet 1-Port 8Gb Fibre Channel PCIe 2.0 Adapter Card Sonnet 1-Port 8Gb Fibre Channel PCIe 2.0 Adapter Card FIBRE-81-E2 8Gb Fibre Channel PCIe 2.0 adapter card
LC/LC Fibre Optic Cable 1-Meter LC/LC Fiber Optic Cable TCB-FBR-1M Fibre optic cable
5-Meter LC/LC Fiber Optic Cable TCB-FBR-5M Fibre optic cable
10-Meter LC/LC Fiber Optic Cable TCB-FBR-10M Fibre optic cable
20-Meter LC/LC Fiber Optic Cable TCB-FBR-20M Fibre optic cable
