Pro Power Graphics
Add a High-performance Video Card to Create Your Own Personal eGPU Workstation
eGPU Breakaway Box 750eGPU Breakaway Box 750ex
Thunderbolt to eGPU Card Expansion Systems
Thunderbolt 3 Computers

Transform Your Thunderbolt Computer Into a Graphics Workstation

Whether you’re editing, rendering, color grading, animating or creating special effects, many of the pro applications you use rely on desktop and workstation graphics (GPU) cards to do the heavy lifting in processing data. Unfortunately, many popular computers are equipped only with integrated graphics or low-power discrete GPUs that bottleneck performance when performing these tasks. Happily, there’s a simple path to greater productivity—add a Sonnet external GPU (eGPU). The eGPU Breakaway™ Box 750 and 750ex Thunderbolt™ to GPU PCIe card expansion systems boost your eGPU-compatible computer’s graphics performance by connecting a high-performance GPU card to your computer via a single cable.
Thunderbolt Certified Logo
Radeon RX 6800 & 6900 XT
IN STOCK
LIMITED TIME AVAILABILITY
The Most Powerful GPUs Ever Can Now Be Yours!
Supercharge your eGPU Breakaway Box, DuoModo eGPU Expansion System, or 2019 Mac Pro's performance with an AMD Radeon RX 6800 or 6900 XT
Future Proof Icon

Future-proof Upgrade

With each new generation of GPU cards, users can look forward to a step (or leap) forward in performance. Less predictable is how much power they will require to operate—better performance frequently requires increased power. For eGPU users, power consumption can be a concern. Don’t limit your future video graphics card choices—choose a Sonnet eGPU Breakaway Box 750 or 750ex. Equipped with 750W power supplies, these Sonnet chassis easily support the highest power demands of latest GPUs and have plenty of extra power to support GPU cards from generations to come.

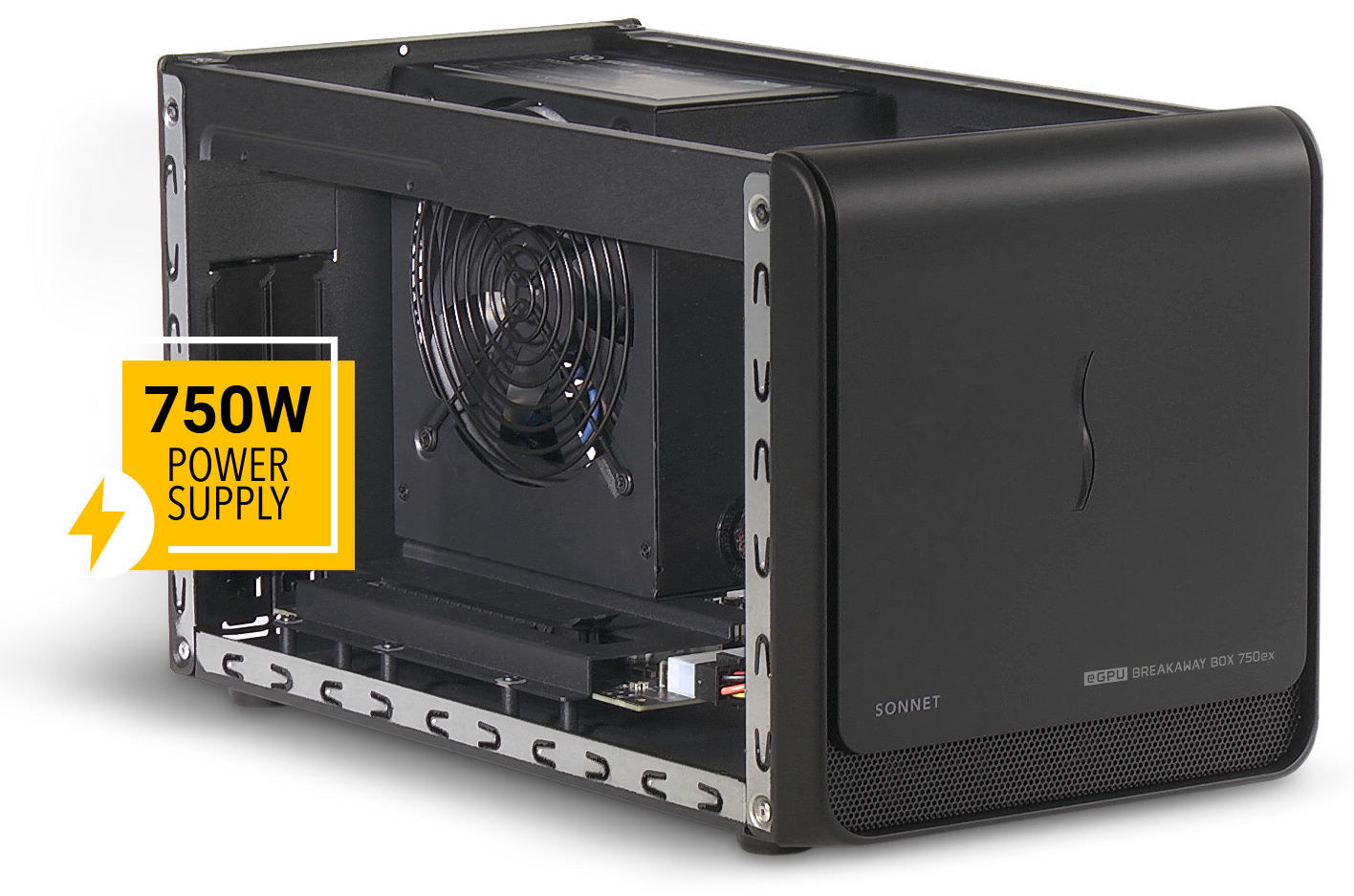

750 and 750ex Models Feature 750W Power Supply

Three Models. Your Choice:

All eGPU Breakaway Box models are Thunderbolt Certified and include a Thunderbolt cable to connect the system to your computer. The 750 offers basic eGPU functionality. The 750ex provides a handy connection hub for USB devices and Ethernet connectivity, while the 750ex with AMD Radeon RX 6900 XT includes one of the most powerful GPU cards ever.

eGPU Breakaway Box 750 Model

eGPU Breakaway Box 750

  • Includes two 8-pin (6+2 pin) auxiliary power connectors
  • 750W power supply; supports cards requiring up to 375W of continuous power plus an additional 100W peak power
  • Provides 100W of upstream power (useful for charging your notebook)
  • AMD approved for the air-cooled editions of the AMD Radeon RX Vega 64, Radeon Pro WX 8200, and WX 9100
  • Designed to also support overclocked NVIDIA cards with high peak power requirements
  • See the list of Supported GPU Cards (PDF)
eGPU Breakaway Box 750ex Model

eGPU Breakaway Box 750ex

  • Includes two 8-pin (6+2 pin) auxiliary power connectors
  • 750W power supply; supports cards requiring up to 375W of continuous power plus an additional 100W peak power
  • Provides 85W of upstream power (useful for charging your notebook)
  • AMD approved for the air-cooled editions of the AMD Radeon RX Vega 64, Radeon Pro WX 8200, and WX 9100
  • Designed and qualified to also support overclocked NVIDIA cards with high peak power requirements
  • See the list of Supported GPU Cards (PDF)
  • 750ex Model Includes: Integrated hub with four USB 3.2 Gen 1 Type A ports and one Gigabit Ethernet port
eGPU Breakaway Box 750ex with AMD Radeon RX 6900 XT

Breakaway Box 750/750ex eGPU Bundle

  • Configure bundle with eGPU Breakaway Box 750 or 750ex and AMD Radeon™ RX 6900 XT graphics card
  • Limited Time Availability

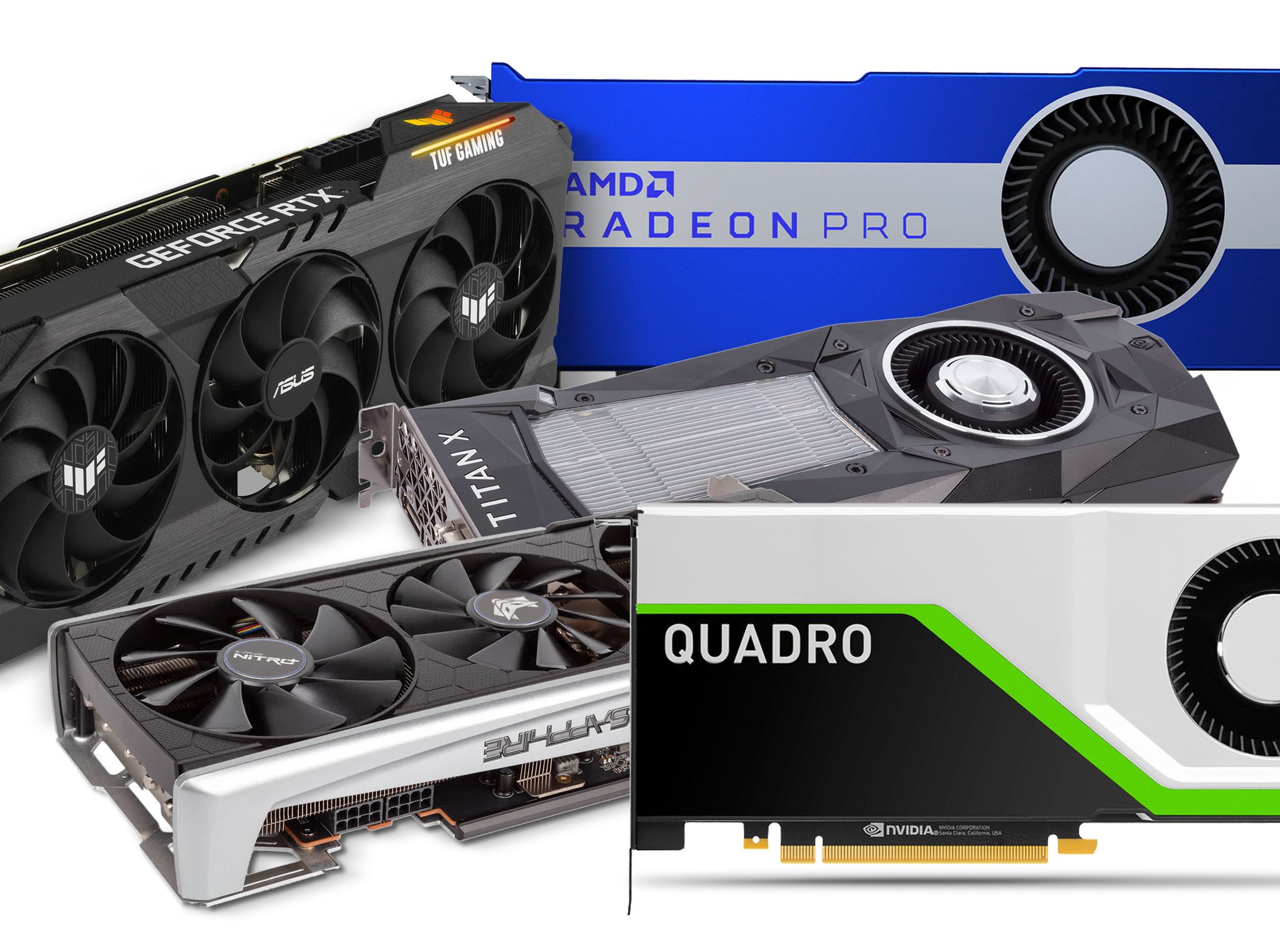

    Expansive GPU Card Compatibility

    eGPU Cards

    No Compromise GPU Card Choice

    eGPU Breakaway Box 750 systems are designed specifically to accommodate the most power-hungry double-width GPU cards. They support Thunderbolt-compatible cards(1) with popular GPU chipsets—such as AMD Radeon™ RX series (including VEGA GPUs); and NVIDIA® GeForce® series and TITAN GPUs. Even the latest pro cards—AMD Radeon Pro and NVIDIA Quadro® GPUs—are supported! (Note that macOS® supports only AMD GPU cards in eGPU systems, while Windows® supports AMD and NVIDIA cards.) With a GPU card installed, a Breakaway Box functions as a simple plug-in upgrade to significantly accelerate the demanding needs of your video production workflow.

    Key Features

    Boost Graphics Performance Icon

    Boosts Graphics Performance

    Connects a high-performance GPU card to your computer with Thunderbolt 3 or Thunderbolt 4 ports.

    Cut Applications In Half Icon

    Cuts Application Task Times

    Enables GPU acceleration to significantly improve editing, rendering, color grading, animation, and special effects performance.

    750W Power Supply Icon

    750W Power Supply

    Support the power requirements of the latest compatible GPU cards; future-proof design handles higher power requirements of cards to come.

    Supports Latest eGPU Cards Icon

    Supports Many of the Latest GPU Cards

    Includes AMD Radeon VII, RX, RX Vega, Pro W and Pro WX models; and NVIDIA GeForce RTX series, TITAN, and Quadro models.

    Multi-eGPU Acceleration Icon

    Multi-eGPU Acceleration Support

    Connect two, three, or four eGPU Breakaway Boxes to slash task times on supported applications.

    Supports Non-GPU Cards Icon

    Supports Non-GPU PCIe Cards

    Supports Thunderbolt-compatible full-length, full-height, single- or double-width cards –perfect for pro audio I/O and DSP cards and pro video I/O and transcoding cards.

    Quietest Configurable eGPU System Icon

    Quietest Configurable eGPU System Available

    Large built-in, variable-speed, temperature-controlled fan quietly and effectively cools whatever card you install.

    Choice of Models Icon

    Choice of Models

    Both models support the same GPU cards, include the same power supply, and provide the same portable computer charging support; the 750ex adds additional connectivity.

    Additional Connectivity Icon

    750ex Model: Additional Connectivity

    Adds four 5Gb/s USB Type A ports to connect peripherals, plus an RJ45 Gigabit Ethernet port for a wired network connectivity.

    40Gpbs Icon

    Single-Port 40Gbps Thunderbolt 3 Interface

    Ensures full 2750 MB/s of PCIe bandwidth(2) is dedicated to the installed card.

    Thunderbolt Certified Icon

    Thunderbolt Certified

    Certified for Thunderbolt for use with Mac® computers.

    Mac & Windows Icon

    Mac and WIndows Compatible

    Compatible with Mac and Windows computers with Thunderbolt 3 or Thunderbolt 4 ports.

    Free Lifetime Tech Support
    Performance Comparisons
    Application eGPU Performance Examples
    Connecting a desktop or workstation GPU card delivers a significant graphics processing boost to the top video editing, visual effects, and modeling applications, cutting rendering times and enhancing VFX and color correction workflows. These performance comparisons illustrate potential advantages with popular eGPU cards and applications.

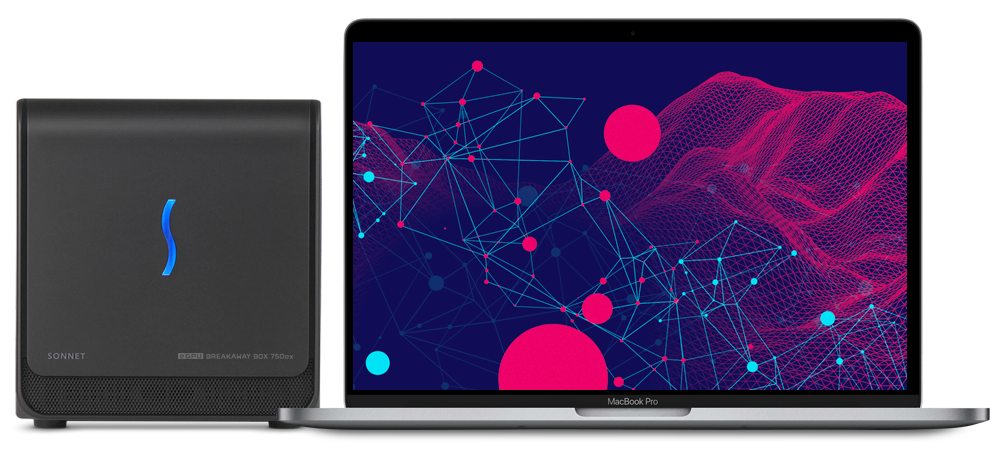

    MacBook Pro with eGPU Breakaway Box
    MacBook Pro Application Acceleration
    Adobe Premiere Pro
    H.264 Export Speed Test (10 minute timeline of 4K footage with multiple effects)
    Adobe Premiere H.24 Export Performance Graph
    Shorter bars better
    DaVinci Resolve
    1080p Candle Benchmark (24 fps timeline with 36 blur nodes)
    Davinci Resolve 1080p Candle Performance Graph
    Longer bars better
    Autodesk Maya
    Rendering Performance
    Autodesk Maya Rendering Performance Graph
    Longer bars better
    Maxon Cinema 4D
    Rendering Performance
    Maxon Cinema 4D Rendering Performance Graph
    Longer bars better

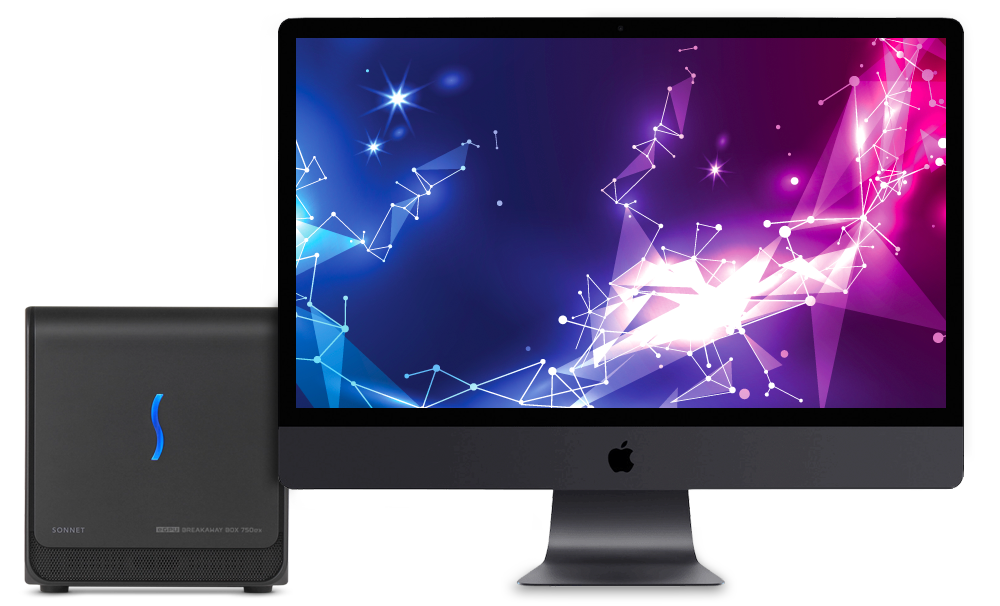

    iMac Pro with eGPU Breakaway Box
    iMac Pro Application Acceleration
    DaVinci Resolve 15
    1080p Candle Benchmark (24 fps timeline with 36 blur nodes)
    Davinci Resolve 15 1080p Candle Performance Graph
    Longer bars better
    DaVinci Resolve 15
    MP4 Render Speed Test (10 minute timeline of 8K footage with 4 nodes)
    Davinci Resolve 15 MP4 Render Performance Graph
    Shorter bars better
    iMac Pro (10-core) Application Acceleration
    Maxon Cinema 4D
    Rendering Speed Test (Bamboo demo scene, 200 Ray Trace iterations)
    Maxon Cinema 4K Rendering Performance Graph
    Shorter bars better
    Radeon Pro WX 9100 and Radeon RX 580 Video Cards
    Radeon Pro WX 9100 vs Radeon RX 580
    Installed in an eGPU Breakaway Box 750, the AMD Radeon Pro WX 9100 offers outstanding performance. The graphs below compare the WX 9100 against the RX 580 (as featured in the custom-designed, all-in-one Blackmagic eGPU). While delivering good performance, the RX580 is greatly outclassed by the WX 9100 for pro-graphics acceleration.
    Radeon Pro WX 9100 Performance Graph
    Longer bars better

    Multi-GPU Support

    Four eGPU Breakaway Boxes Icon

    4K to 8K Workflows –
    Connect Two or More Breakaway Boxes

    Many task times on supported applications—such as Adobe® Premiere® Pro, DaVinci Resolve™, and Maxon Cinema 4D™, to name a few—can be cut significantly with one eGPU Breakaway Box connected. But, for computers with multiple Thunderbolt ports, times can be slashed when two, three, or four Breakaway Boxes are employed. Connecting one or more eGPUs can multiply your computer’s graphics processing power, enabling it to handle 4K, 5K, 6K, and 8K workflows more efficiently. Plus, a computer’s onboard discrete GPU also contributes to the aggregate performance.

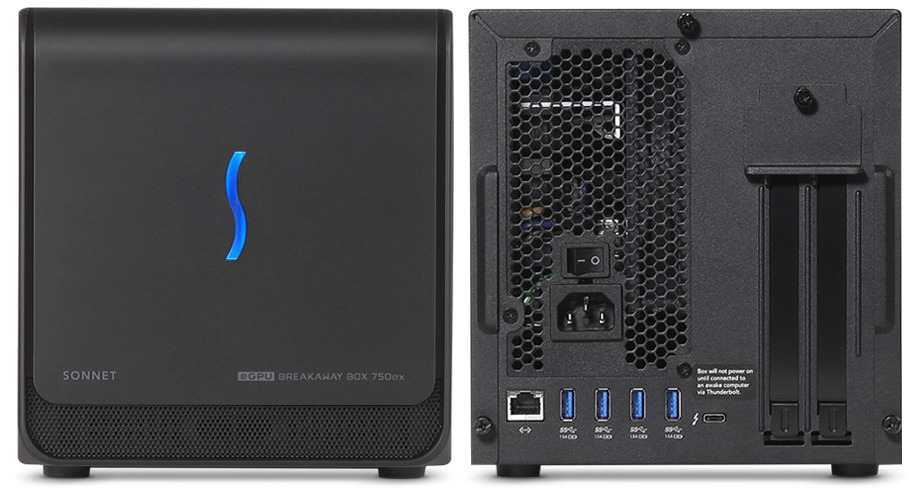

    eGPU Breakaway Box 750ex Front & Rear View

    More Ports, Additional Functionality: eGPU Breakaway Box 750ex

    Is your computer short on ports for basic connectivity? Step up to the eGPU Breakaway Box 750ex to add four 5Gb/s USB 3.2 Gen 1 Type A ports to connect peripherals, plus an RJ45 Gigabit Ethernet port for a wired network connection. The 750ex features a dual Thunderbolt controller design, enabling it to support both peripherals and GPU card through the single Thunderbolt connection to your computer.
    eGPU Breakaway Box 750ex Setup
    Thunderbolt Logo

    Designed for GPU Cards, Also Supports Other Demanding PCIe Cards

    The Breakaway Box’s single x16 PCIe 3.0 slot accommodates full-length, double-width cards, and its 750W power supply supports trouble-free operation. Its single-port 40Gbps Thunderbolt 3 interface ensures the full 2750 MB/s of PCIe bandwidth(2) is dedicated to the installed card.
    eGPU Breakaway Box PCIe SloteGPU Breakaway Box with GPU Card Installed

    Supports Latest eGPU Cards

    designed to house and power the latest power-hungry video cards

    eGPU  Breakaway Box with GPU Card Illustration
    Fan Icon

    Coolest & Quietest Add-your-own-card eGPU System Available

    With its large variable-speed temperature-controlled fan that quietly and effectively cools the installed card, the eGPU Breakaway Box can be comfortably used in noise-sensitive working environments.

    eGPU Breakaway Box Fan

    Graphic-Intensive Gaming Support

    There’s no need for you to carry a heavy, loud, and hot-running gaming laptop to have a great gaming experience—just plug in a Breakaway Box and add the GPU power you want when you need it! A Breakaway Box is ideal for empowering graphic-intensive gaming on an Intel® processor-based MacBook Air® or 13-inch MacBook Pro®, Ultrabook™ and other thin/light notebook computers that otherwise would deliver a poor gaming experience. Accelerated graphics can either be displayed on one, two, or more external monitors, or on your notebook’s own display panel(4). Best of all, you can upgrade the GPU card in the Box to keep up with the latest in GPU technology (unlike with gaming laptops).

    Notebook Illustration

    Add GPU Power to Mac and Windows Notebooks with Intel Integrated Graphics

    Multi-monitor Gaming Setup Illustration

    Experience Amazing Gaming on Your Notebook's Screen or an Expansive Multi-monitor Set-up

    eGPU Card Illustration

    Upgradeable – Plug in a New Card to Stay Current with GPU Technology

    Thunderbolt 4 Computers

    Forward Compatible with Thunderbolt 4 Computers

    The eGPU Breakaway Box 750 and 750ex are fully compatible with Thunderbolt 4 computers and were purposely designed with a Thunderbolt 3 controller and its four lanes of PCIe (not available in a Thunderbolt 4 peripheral) to achieve maximum performance. Learn more about the performance benefits of Thunderbolt 3 over Thunderbolt 4.

    Learn why Sonnet's Pro Products Rely on Thunderbolt 3 Technology for Maximum Performance
    See Tech Specs for footnotes.
    Product specifications and information subject to change without notice. Computer hardware and accessories featured in photos that are not included with product are shown for illustration purposes; items sold separately.
