Instant access – plug all your peripherals into the Echo dock and connect your computer to the dock with the included Thunderbolt 4 cable.

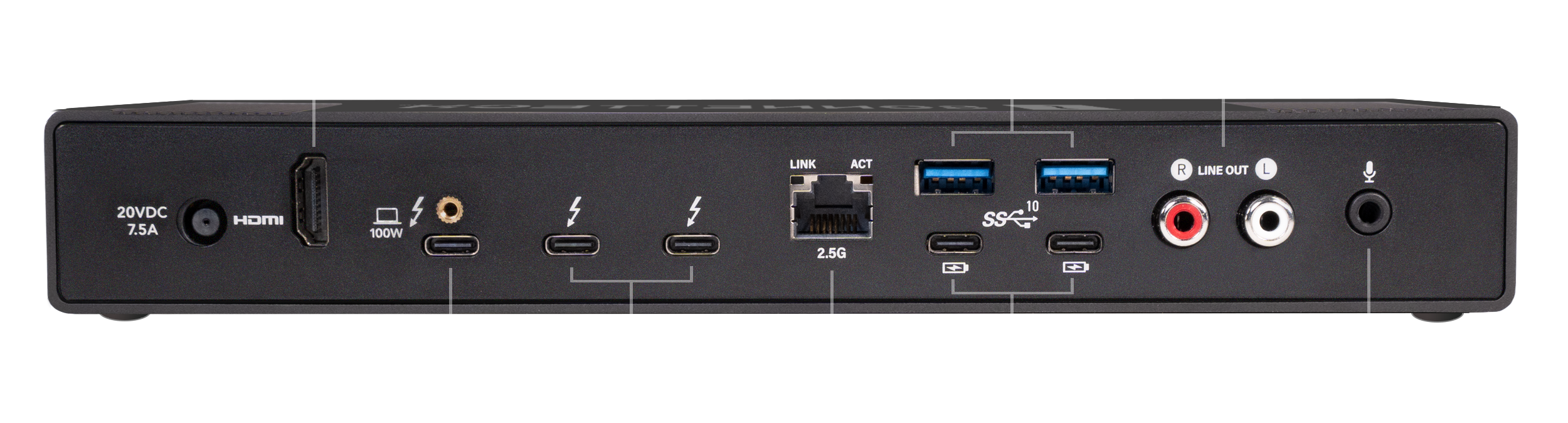

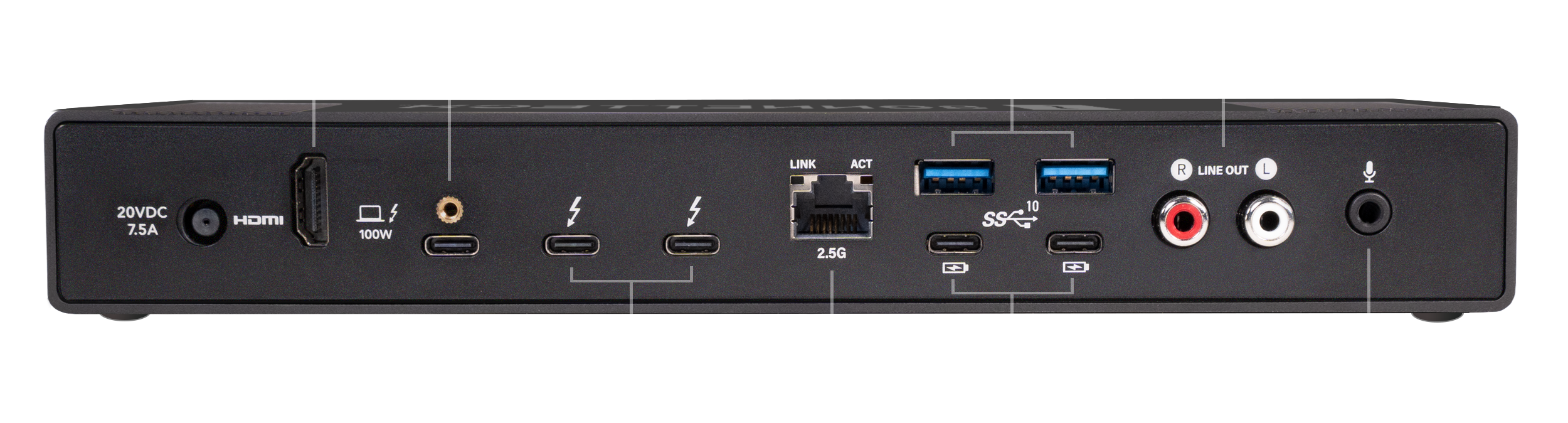

SuperDock includes three Thunderbolt 4, four USB 3.2 Gen 2 Type A, and four USB 3.2 Gen 2 Type-C charging ports; HDMI port; RJ45 2.5 Gigabit Ethernet; 3.5mm combo audio; 3.5mm microphone; line-level R+L RCA audio out; fast UHS-II SD card slot; and M.2 SSD slot.

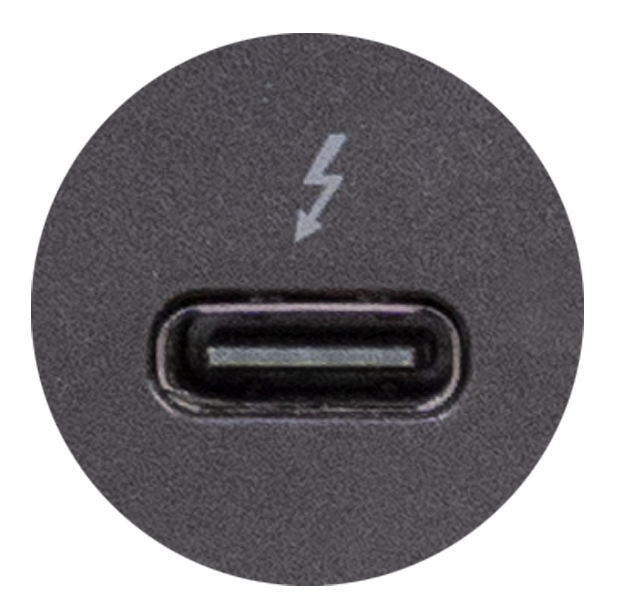

Connect two Thunderbolt peripherals (with support for daisy chaining additional peripherals). Also support USB4 and USB 3 devices, plus displays.

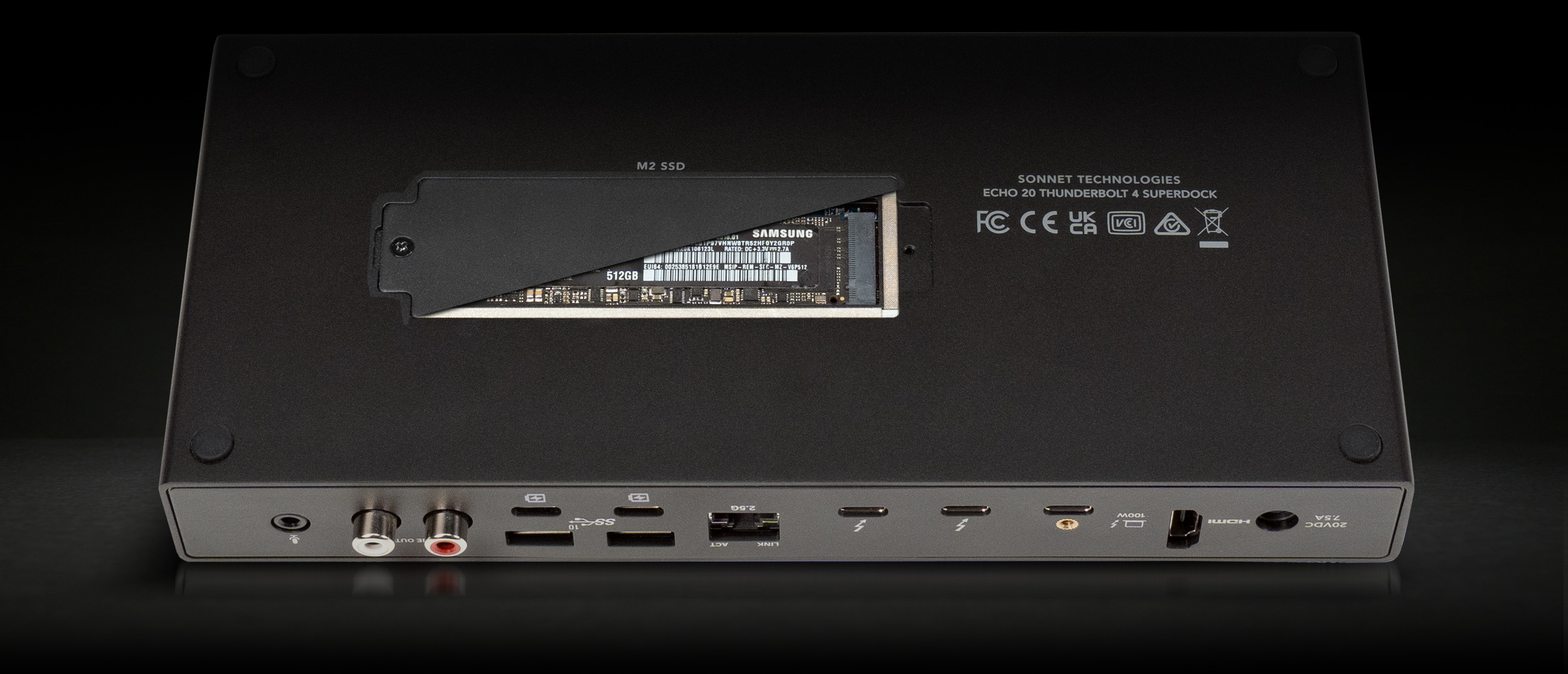

Add up to 8TB of storage inside (SSD sold separately); data transfer speeds up to 800MB/s for fast media storage and Time Machine backups.

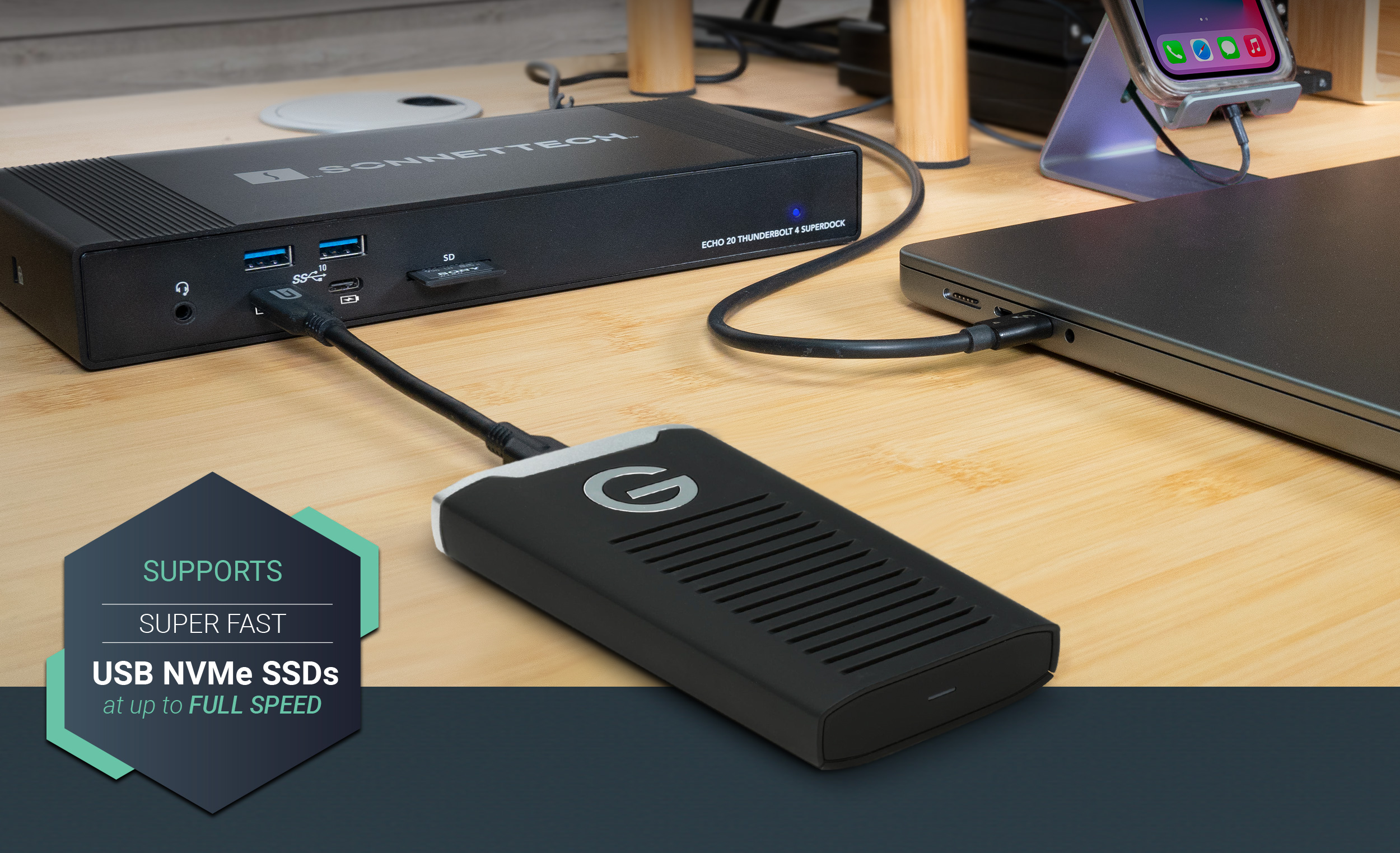

Four USB 3.2 Gen 2 USB-C ports support the USB Type-C charging spec and provide up to 7.5W of power each. Ports support super-fast USB NVMe SSDs at up to full speed, and device charging too.

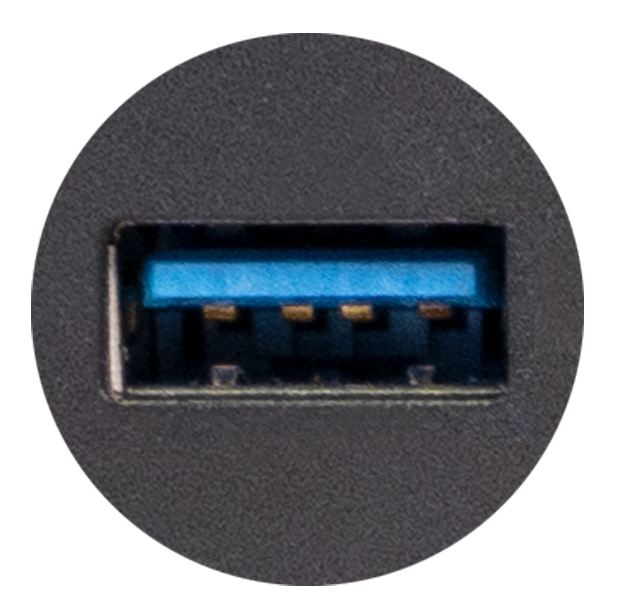

Four USB 3.2 Gen 2 USB-A ports provide up to 7.5W of power each, supporting super-fast USB NVMe SSDs at up to full speed.

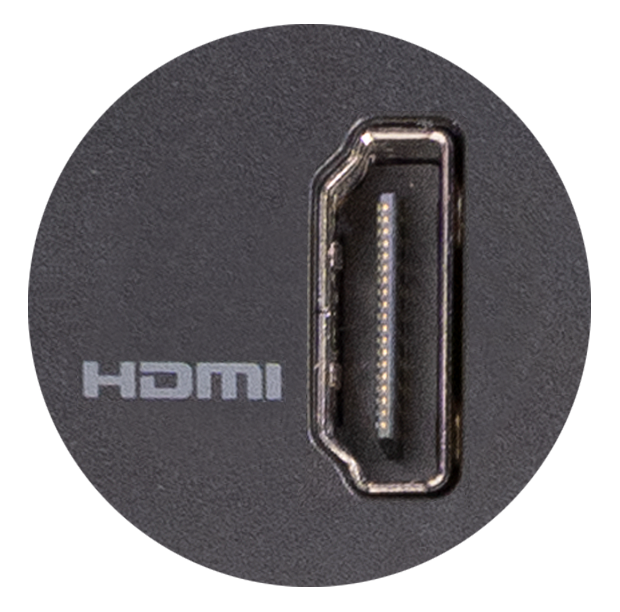

Connect a 1080p, 1440p, 4K, 5K, 6K, or 8K @60Hz HDMI display directly, no adapter required.
Depending on your computer, supports up to two 6K displays or a single 8K display (see Displays Compatibility PDF).
Connect a Thunderbolt or USB-C display directly. Supports an HDMI or DisplayPort display with a Thunderbolt-compatible adapter (sold separately).
Provides up to 100W through the included Thunderbolt 4 cable to power and charge your laptop.

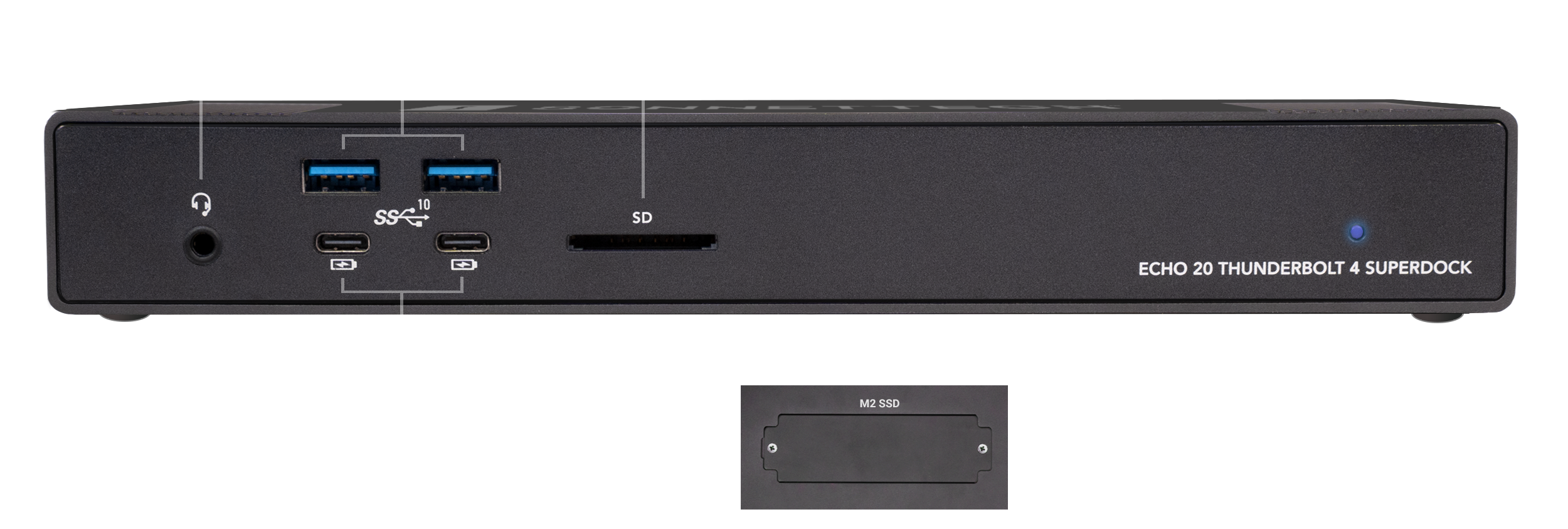

3.5mm stereo headset jack on the front panel. Separate left/right channel RCA line out jacks that deliver a clean signal to powered speakers or an amplifier, plus a 3.5mm microphone jack populate the back panel.
Compatible with SD™, SDHC™, and SDXC™ memory cards; supports 320 MB/s read speeds with UHS-II SDXC cards. Also supports microSD™ cards when used with adapter.
Supports all M series Macs.
Supports Thunderbolt 3 Intel Macs; all Thunderbolt 4 and USB4 Windows computers; and late model Thunderbolt 3 Windows computers.
Supports Chromebook computers with Thunderbolt 4 or USB4 ports.
Supports all M series iPad Pro tablets.
Founded in 1986 in Orange County, Southern California — the vibrant hub of technology and engineering south of Silicon Valley — Sonnet has been at the forefront of innovation. Over the years, we've developed numerous award-winning products that enhance performance and connectivity for Mac, Windows, and other industry-standard computers. Many of our team members have been with us for over two decades, providing us with extensive expertise about our current and past offerings. If you ever need technical support for any of our products, don’t hesitate to reach out; we’re here to assist you.
Sonnet includes a Thunderbolt cable and security clip with Echo 20 SuperDock. The Thunderbolt cable supports Thunderbolt’s maximum bandwidth and 100W power charging capability. Sonnet also provides a compatible ThunderLok™ Thunderbolt connector retainer clip that prevents accidental cable disconnections.
With up to 8TB of valuable data inside, you may want to secure the Echo dock with a Kensington® Lock (sold separately).
