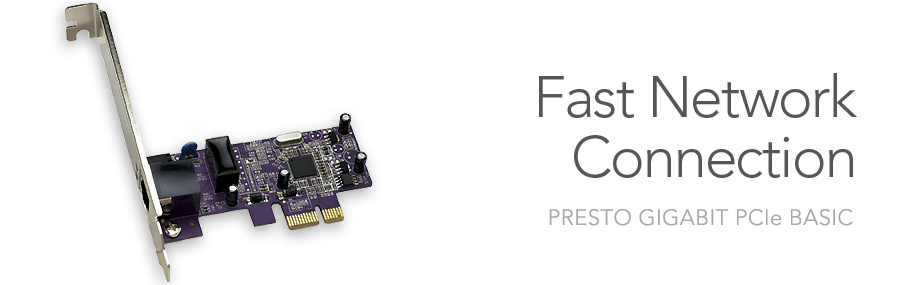

Presto Gigabit - Faster Networking
Buy from Sonnet Buy from Distributor/Reseller
Products & Solutions
Mac Compatibility

Mac Pro(1)

Power Mac G5 with PCI Express slots

Mac OS® X Version, 10.4.11+(2)

Snow Leopard compatible

Windows Compatibility

PC with PCI Express slot(1)

Windows 7

Windows Vista

Windows Server 2003

Windows XP

Technical Specifications

Part No.

Warranty

1-year limited warranty

Bus Interface

PCI Express

Network Connectors

One RJ-45 connector supports 1000 Mbps, 100 Mbps, 10 Mbps network speed and Auto-MDI/MDI-X

Standard

Compliant with 10/100/1000 IEEE 802.3 specification

Network

Gigabit Ethernet (1000BaseT, 100BaseTX, 10BaseT)

Network Power

UTP x 1 (Auto-MDI/MDI-X)

IRQ Line

Assigned by system

I/O Address

Assigned by system

Transmission Rates

10 Mbps/20 Mbps;
100 Mbps/200 Mbps;
1000 Mbps/2000 Mbps

Link

Does not support Link Aggregation

Packets

Maximum packet size: 1500 bytes

LEDs

1000 Mbps Link/Activity;
100 Mbps Link/Activity

Package Contents

PCIe Ethernet network adapter card, low profile mounting bracket, quick start guide.

Specifications subject to change without notice.

Simply Fast Network Connection
Whether you need to add an additional Ethernet port to your Mac, or step up to Gigabit Ethernet connectivity for your PC, get a Sonnet Presto™ Gigabit PCIe Basic Gigabit Ethernet adapter card for PCI Express for a simple networking solution! Presto Gigabit PCIe Basic is compatible in Mac Pro(1), and Power Mac G5 & PCs with a PCI Express (PCIe) slot, and its plug-and-play simplicity makes installation a breeze; you'll complete the process in a few simple steps.

Presto Gigabit PCIe Basic offers basic networking connectivity and supports gigabit speeds over common CAT-5 cabling, so costly cable replacement is unnecessary. If your computer already has onboard Gigabit Ethernet, you can add a Presto Gigabit PCIe Basic and use it for dedicated connection to a printer, AirPort® Extreme base station, DSL or cable modem, or a metadata server, while leaving your onboard Gigabit Ethernet port(s) available for other connections. This Sonnet card offers simple configuration, and its 1000/100/10BaseT auto-negotiation and full/half duplex communication support allow it to be used in most networks. Presto Gigabit PCIe Basic also includes a low profile mounting bracket that enables the card to be easily installed in low profile PCs.

Key Benefits

Simple way to add or expand Gigabit Ethernet connectivity to any compatible computer

Supports gigabit speeds on common CAT-5 cabling—no need for costly cable replacement

Easy installation

1000/100/10BaseT auto-negotiation

Full/half duplex

PCI Express x1

1000/100/10BaseT Gigabit Ethernet PCI Express Card for Mac and Windows.


If your computer already has onboard Gigabit Ethernet, you can add a Presto Gigabit PCIe Basic and use it for dedicated connection to a printer, AirPort Extreme base station, DSL or cable modem, or a metadata server, while leaving your onboard Gigabit Ethernet port(s) available for other connections.



Technical Notes:
(1) Not compatible with Mac Pro (Early 2009), or with slot 2 (PCIe 2.0 slot) in Mac Pro (Early 2008).
(2) Compatible with OS X, Version 10.6 only in 32-bit kernel boot (Mac Pro default).
