Two eSATA PortsProfessional 2-Port 6Gb/s SATA Solution for Mac & PC Notebooks with ExpressCard Slot

Why choose an eSATA Card? If you're planning to connect external storage to your computer, there's a good chance the enclosure will have two or more interfaces from which to choose, including USB, FireWire®, and eSATA. Your computer has USB ports, may have FireWire ports, and maybe even a Thunderbolt™ port, too. So if you can just plug into your computer's existing ports, why consider an eSATA card? Consider the facts that the 6Gb/s eSATA interface offers superior performance to that of FireWire 800, USB 2.0 and USB 3.0 interfaces, and Thunderbolt storage systems carry a price premium over eSATA storage systems. Sonnet's Tempo SATA Pro 6Gb ExpressCard/34 card is cost-effective solution for adding two high-performance eSATA ports to your computer so you can take advantage of this speedy interface.

External storage systems with eSATA interfaces offer great flexibility. Single drive enclosures are very handy if you need to back up data or move files from one computer to another. Many storage systems include swappable drive trays, which are perfect for managing daily backups and multiple projects. Some systems, like Sonnet's Fusion™ QR and Fusion F3, feature hardware RAID controllers that manage up to four drives and enable you to create large, protected RAID volumes, yet the systems only require a single cable to connect to this pro eSATA card.

Improved Performance

SpeedometerTempo SATA Pro 6Gb ExpressCard/34 is versatile. Its fast, 6Gb/s eSATA interface is well suited to deal with the increased bandwidth requirements of 6Gb/s SSDs. Built around a second generation 6Gb chipset, it offers greatly improved performance over older 6Gb/s eSATA cards and is capable of transferring files at up to 375 MB/s! More onboard cache enables this Sonnet controller to perform even better in the latest computers, and Sonnet's Echo™ ExpressCard Pro Thunderbolt Adapter

Key Features

Cost-effective solution for adding two high-performance 6Gb/s eSATA ports to your MacBook Pro® or PC notebook with an ExpressCard slot

Supports single SATA drive enclosures and multi-bay SATA drive enclosures (see Technical Specifications)

Great performance with data transfers up to 375 MB/s

Perfect for use in Sonnet's Echo ExpressCard Pro Thunderbolt Adapter

Supports drive hot-swapping under OS X®

Supports booting from attached drives under Microsoft Windows® 10, 8, and 7

AHCI compliant—no drivers required


Thunderbolt Compatible with Echo ExpressCard Pro

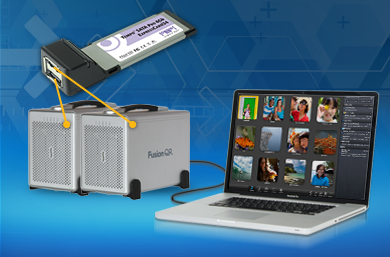

Tempo SATA Pro G6b ExpressCard/34 Connected to Fusion Storage Systems

For maximum performance, you can create a single, large RAID 0 set across multiple drives in up to two enclosures like Sonnet’s Fusion™ QR.

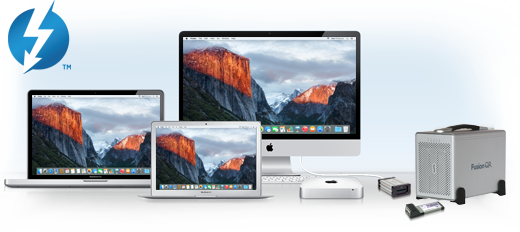

Thunderbolt ConnectionsWide Support – Optimized for Maximum Performance Over Thunderbolt

Got a Thunderbolt connection, but no ExpressCard slot? This card is ideal for use in Sonnet's Echo ExpressCard Pro Thunderbolt Adapter—the combo enables you to add two fast eSATA ports of connectivity to any computer with a Thunderbolt or Thunderbolt 2 port. This card supports the RAID features of OS X and Windows. It supports hot-swapping of drives under OS X, and supports booting from attached drives under Windows 10, 8, and 7. You can connect media readers with eSATA interfaces, too. AHCI compliance ensures installation of the card is simple—just plug it in to the ExpressCard slot—the necessary drivers are installed automatically. When you need to add flexible, external storage to your setup, Tempo SATA Pro 6Gb ExpressCard/34 gets you connected, fast.



Part No.
TSATA6-PRO2-E34 Discontinued
Warranty 5-year
Bus Interface ExpressCard/34 PCI Express 2.0
External Connectors Two eSATA
Drives Supported 10 (5 per port)
Data Transfer Rate Up to 375 MB/s
Drive Types Supported SATA 6Gb/s, SATA 3Gb/s, and SATA 1.5Gb/s
AHCI Support
System OS X Windows
10, 8, 7
Boot Support (1)
Port Multiplier Aware (2)
Hot Plug Card (3)
Hot Plug Drive
Advanced Features
  • Supports booting from attached drives under Windows 7

  • Supports drive hot-swapping under OS X
  • Supports ATAPI (CD/DVD/Blu-ray) drives
  • Supports port multipliers under Windows 7 and Vista
  • Supports S.M.A.R.T. status data reporting
  • Supports Spread Spectrum Clocking for compatibility with all SATA drives and lower EMI emissions
RoHS Compliant Yes
Package Contents
  • Tempo SATA Pro 6Gb ExpressCard/34 host controller card
  • Documentation


Specifications subject to change without notice.






Mac Compatibility

MacBook Pro (with an ExpressCard slot)(2)

OS X® 10.5.8+

macOS Sierra compatible

PC Compatibility

PC (with an ExpressCard slot)

Windows 10, 8, 7, Vista

Thunderbolt Compatibility

Mac or PC via Sonnet's Echo ExpressCard Pro Thunderbolt Adapter

Technical Notes

  1. OS X boot support requires MacBook Pro (early 2011).
  2. OS X port multiplier support requires Version 10.8.5+.
  3. Card not hot-pluggable in MacBook Pro (early 2011) ExpressCard slot (i.e. must boot with card installed).


Mac Logo Windows LogoeSATA Logo roHS Logo

  Product Name Part No. Description
Locking eSATA cable Sonnet 2-Meter Locking eSATA Cable TCB-SATA-2L-2M eSATA data cable with locking connectors
Locking eSATA cable Sonnet 1-Meter Locking eSATA Cable TCB-SATA-2L-1M eSATA data cable with locking connectors
ExpressCard/34 to 54 Stabilizer ExpressCard/34 to 54 Stabilizer E34-E54-BK Brace for stabilizing an ExpressCard/34 adapter card in an ExpressCard/54 slot
