Affordable 6Gb/s SATA Solution
Why an eSATA Card?
External storage systems with an eSATA interface offer great flexibility. Single drive enclosures are very handy if you need to back up data or move files from one computer to another. Many storage systems include swappable drive trays, which are perfect for managing daily backups and multiple projects. Some systems, like Sonnet's Fusion™ D400QR5 and Fusion F3, feature hardware RAID controllers that manage up to four drives and enable you to create large, protected RAID volumes, yet the systems only require a single cable to connect to the eSATA card.
Affordable solution for adding two 6Gb/s eSATA ports to your Mac Pro or desktop PC with PCI Express 2.0 slots
Supports booting under Windows® 7
Supports single SATA drive enclosures and multi-bay SATA drive enclosures (see Technical Specifications)
AHCI compliant—drives not required; however, Sonnet's Mac OS X driver significantly increases performance
Supports drive hot-swapping under Mac OS® X
Supports Sonnet-exclusive locking eSATA data cables

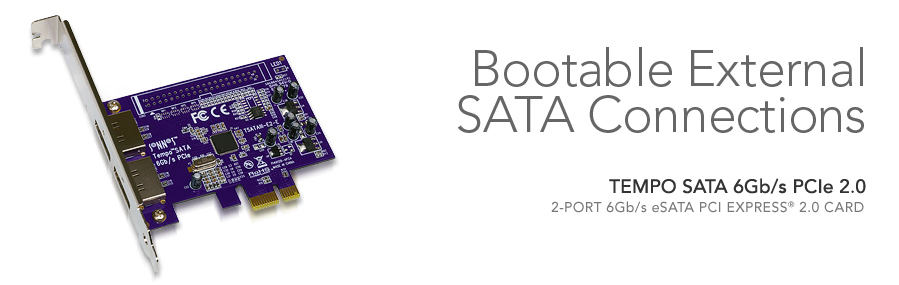

Tempo SATA 6Gb/s PCIe 2.0 is versatile. Its fast 6 Gb/s eSATA interface is well suited to deal with the increased bandwidth requirements of 6Gb/s SSDs. It supports the RAID features of Mac OS X, Windows 7, and Windows Vista. It also supports hot-swapping of drives under Mac OS X. You can connect optical drives, too. Installation is simple—just plug in the card to any available PCI Express® (PCIe) slot and then start your computer—the necessary drivers are installed automatically. When you need to add flexible, external storage to your setup, Tempo SATA 6Gb/s PCIe 2.0 gets you connected, fast.
Power Mac G5 (with PCIe slots)
Mac OS X Version 10.5.8+
OS X Yosemite compatible
PC (with PCIe slots)(1)
