Instant SATAsfaction!

No cables, no worries! Sonnet's Tempo™ Bridge board makes it a snap to use a parallel ATA drive in your G5, the first Apple® computer to feature the new standard in disk drive technology, Serial ATA (SATA). Serial ATA offers greater performance than parallel ATA and uses smaller cables and connectors (instead of ribbon cables) for better cooling, but is not directly compatible with parallel ATA. If you need to use a parallel drive in your SATA-based computer, install a Tempo Bridge and make it compatible!

The Tempo Bridge was engineered specifically for the Power Mac G5, but works in almost any computer with a Serial ATA interface. The board's design solves issues unique to the G5: it enables the user to mount a 3.5-inch parallel ATA drive in the G5's drive mounting bay and secure it with the computer's built-in latch, and directly connect the G5's short SATA data and power cables. Take the Tempo Bridge path to add a spare drive to your G5!



Key Features

Enables use of most 3.5" parallel ATA hard drives in Power Mac G5 computers

Uses the G5's SATA power and data connectors—no adapters needed

Simple installation—just plug the board into the drive!

Fastest way to move data from an old system to your new G5


Shadow

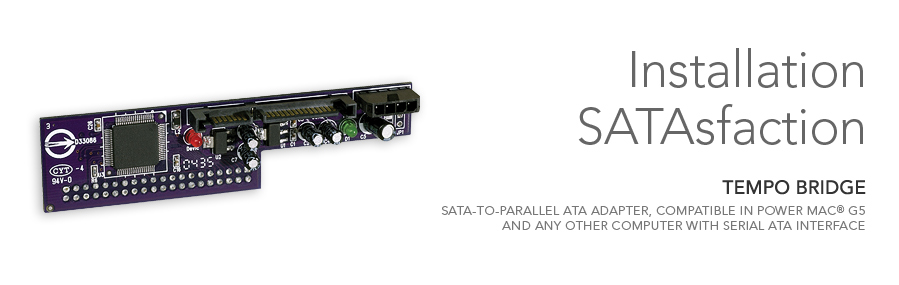

Sonnet's Tempo Bridge board makes it a snap to use a parallel ATA drive in your G5. Simple installation—just plug the board into the drive!



Part No.
TPASA Discontinued
Hardware
Warranty 1-year limited warranty
Specifications Compliant with Serial ATA 1.0 specification; data transfer rate up to 150MB/s; compatible with ATA 5 and ATA 6 specification IDE hard drives (ATA/66/100/133)

Specifications subject to change without notice.

spacer









Mac OS LogoWindows Logo

Computer Compatibility

Power Mac G5

Any computer with Serial ATA interface
