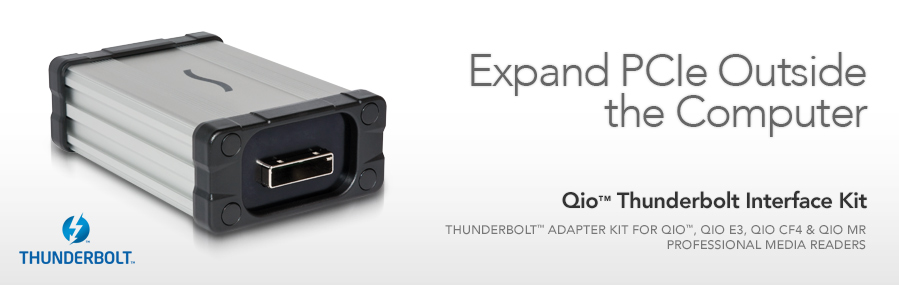

Thunderbolt Connection for Qio

Qio FamilySonnet’s Qio Thunderbolt Interface Kit connects your QioQio CF4, or Qio MR to any Mac® with Thunderbolt or Thunderbolt 2 ports; and your Qio E3 to any Mac with Thunderbolt or Thunderbolt 2 ports, or Windows® PC with Thunderbolt 2 ports to expand these pro media readers’ compatibility beyond computers with PCIe slots or an ExpressCard slot. The included Qio interface cable features robust locking mechanisms at both ends to connect your Qio reader to the Thunderbolt interface. The included Thunderbolt cable makes the connection between your computer and the Thunderbolt interface.

Key Features

Thunderbolt Interface for Qio Pro Media Readers—Connects Qio, Qio CF4, Qio E3, or Qio MR to computers with Thunderbolt or Thunderbolt 2 ports*

Secure Connection to Qio—Included interface cable locks securely at both ends

Includes Thunderbolt Cable—0.5 meter Thunderbolt cable provided

Shadow

Qio Thunderbolt Interface Adapter Kit


Complete Connection Kit to Interface with High-speed Thunderbolt —
The Qio Thunderbolt Interface Kit includes a Thunderbolt cable, the Thunderbolt interface, and a locking interface cable. The included interface cable features robust locking mechanisms at both ends to ensure secure connections.



* See important information regarding product compatibility on the Tech Specs Tab
Part No.
QTB-IFK Discontinued
Hardware
Warranty 2-year
Form Factor Computer adapter
External Connector
  • Thunderbolt
  • PCI Express x4 (SFF-8088)
Bus Interface PCI Express 2.0 x4 (to x1 with included PCIe interface cable)
Data Transfer Rate Up to 5.0 Gb/s
Supported Qio Media Readers Qio, Qio CF4, Qio E3, Qio MR
Dimensions (WxDxH) 2.7" x 4.0" x 1.3" (6.7 x 10.0 x 3.4 cm)
Weight .4 lbs (0.18 kg)
RoHS Compliant Yes
Package Contents
  • Qio Thunderbolt Interface Adapter
  • 1-meter external PCIe x4 to x1 interface cable
  • 0.5-meter Thunderbolt cable



Specifications subject to change without notice.

white space









Product Compatibility with Qio, Qio CF4, Qio MR

Mac Compatibility

OS X 10.6.8-10.11

Mac with a Thunderbolt or Thunderbolt 2 port

Windows Compatibility

Not compatible with Windows


Product Compatibility with Qio E3

Mac Compatibility

OS X 10.6.8-10.11

Mac with a Thunderbolt or Thunderbolt 2 port

Windows Compatibility

Windows 10, 8, 7, and Vista®

Windows Server 2012, Server 2008 R2, Server 2008

PC with a Thunderbolt 2 port



Mac OS LogoWindows Logo PCI Express Logo RoHS Compliant Logo

Qio Thunderbolt Interface Kit Accessories Part No. Description
Thunderbolt Cable Thunderbolt Cable TCB-TB-1M 1-meter copper Thunderbolt cable
