Route to the Outside

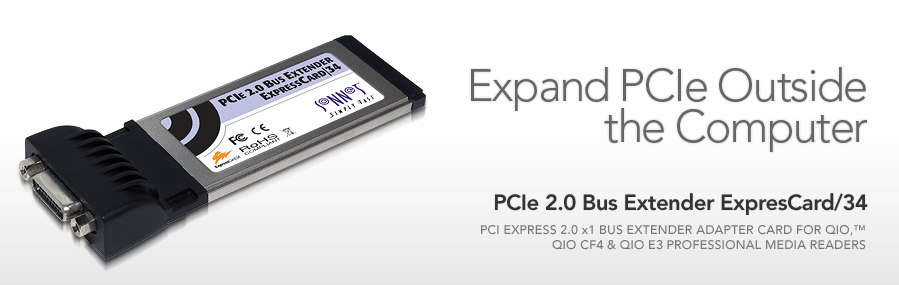

Sonnet's PCIe 2.0 Bus Extender ExpressCard/34 expands the PCIe bus outside your computer. Plug in the PCIe Bus Extender ExpressCard/34 adapter to your notebook computer and connect your Qio™, Qio CF4, or Qio E3 professional media readers for use in the field.

Key Features

Spare Interface Card for Qio, Qio CF4, or Qio E3—Works with Sonnet's professional media readers

Fast—Extends PCI Express bus interface to deliver superior performance; aggregate bandwidth of 430 MB/s (Qio CF4), 400MB/s (Qio E3) or 200MB/s (Qio)


Part No.
PCIE2-E34 Discontinued
Warranty 2-year
Form Factor ExpressCard/34 computer card
External Connectors External PCIe 2.0 x1 18-pin
Data Transfer Rate Up to 430MB/s (Qio CF4), 400MB/s (Qio E3), or 200MB/s (Qio)
Bus Interface PCI Express 2.0 x1 (PCI Express 1.1 slot compatible)
RoHS Compliant Yes
Package Contents
  • PCIe 2.0 Bus Extender ExpressCard/34 Computer Card
  • Documentaiton


Specifications subject to change without notice.




Product Compatibility

Sonnet Qio, Qio CF4, E3

AJA® Io Express

Magma® ExpressBox1, ExpressBox1 Pro

Matrox® MXO2 Mini, MXO2 LE, MXO2, MXO2 Rack

Panasonic® AJ-PCD35 Memory Card Drive


Mac OS LogoFor Windows LogoExpressCard/34 Logo For RoHS

Product Accessories Part No. Description
1 m external PCIe x1 interface cable Sonnet 1-meter external PCIe x1 interface cable QCB-PCIE-1M 1-meter external PCIe interface cable
Sonnet Cable Sonnet 3-meter external PCIe x1 interface cable QCB-PCIE-3M 3-meter external PCIe interface cable
