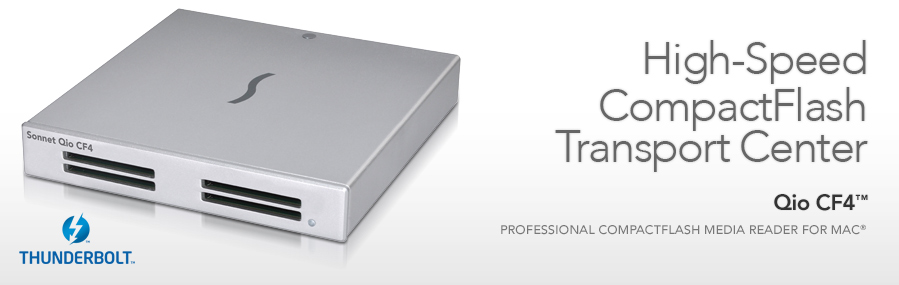

CompactFlash to the Power of Four

4 CompactFlash Cards CompactFlash (CF) memory cards are rugged, offer high storage capacities, and can deliver fast data transfers; that’s why HD camcorders from RED® and Canon®, as well as DSLR cameras from Canon and Nikon® use them. Even as the card specs have improved, moving ever-larger files from cards to computer has remained mostly a low speed affair. If you have ever ingested files from CF cards, you know what we mean. Plug in the camera, grab a cup of coffee, and relax while all those gigabytes of data are transferred at around 30 MB/s. But what if you need faster transfers? Or want to ingest files from more than one card at a time? Sonnet’s Qio CF4 is the answer to all of these questions.

This Sonnet pro media reader distills the feature set of the award-winning original Qio media reader, and is designed specifically for use with CF media cards. Providing a cost-effective, high-speed multi-slot alternative to stand-alone card readers for pro videographers and photographers alike, Qio CF4’s four CF slots enable you to ingest files faster and more efficiently, with aggregate ingest speed up to 410 MB/sec.

Key Features

Four Slots—Enable you to ingest files from four cards at the same time

Fast—Delivers superior performance using PCI Express® 2.0 bus interface; available aggregate bandwidth of up to 410 MB/sec.

Choice of Interfaces—Qio CF4 package includes your choice of interface: PCI Express 2.0 card for legacy Mac Pro, ExpressCard/34 for legacy MacBook Pro, or Thunderbolt™ interface adapter kit for any Mac with a Thunderbolt or Thunderbolt 2 port

Fast Aggregate Ingest Speed (four cards concurrently)—PCIe or Thunderbolt interface: 410 MB/s; ExpressCard/34: 200 MB/s

Mac Compatible—Qio CF4 works within your workflow, regardless the system you’ve chosen; simply connect Qio CF4 to the appropriate interface card or adapter and you’re good to go

Built-in SATA Connections—Connect media readers with eSATA interfaces

Small and Rugged—Strong aluminum case measures just 5.9" x 6.2" x 1"

Easy to Secure—Slot for Kensington® and similar security locks to secure the device and deter theft

Shadow

Qio Interfaces

Choice of Interface

Sonnet’s Qio CF4 is available with your choice of a PCIe 2.0 interface card for Mac Pro towers, an ExpressCard/34 interface adapter for legacy MacBook Pros, or a Thunderbolt interface adapter (with included Thunderbolt cable) for any Mac with a Thunderbolt or Thunderbolt 2 port. With the purchase of an additional Qio PCIe adapter card, ExpressCard/34 card, or Qio Thunderbolt Interface Adapter Kit, you can move your Qio CF4 from suite to suite, and then to location and back again without breaking a sweat. Whether you’re using an legacy Mac Pro or MacBook Pro®, or any recent Mac with a Thunderbolt or Thunderbolt 2 port, Qio CF4 fits seamlessly into your demanding production workflows.

Flexible Power Options

AC Power IconAC Power
For desktop use, a universal 12V output AC power supply (with wall plugs for US, Japan, Europe, UK and Australia) is included.

Battery IconBattery Power
For battery-powered operation during fieldwork, Sonnet’s optional XLR 4-pin adapter cable interfaces Qio CF4 with an external battery pack, such as Tekkeon myPower ALL batteries at an 8-19V setting.

FireWire IconFireWire® Bus Power
Alternatively, you can power the Qio CF4 by connecting it to a computer with a FireWire port with Sonnet’s optional FireWire 400-to-3.5mm power cable

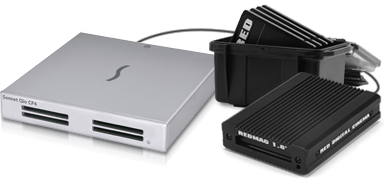

Qio CF4 Connected to RED STATION REDMAG 1.8" Reader

Travel and Desktop Companion

Qio CF4 pro media reader is small—about the size of three stacked CD cases—and takes up so little space, you can use it just about anywhere. It’s rugged, too—the robust aluminum case easily withstands heavy use. This pro media reader even incorporates a slot for Kensington® and similar security locks to secure the device and deter theft.

Qio CF4 from Studio to On Location

Built for the Pro. Whether shooting on location with your notebook or editing footage or photos in the studio on your iMac®, Mac mini, or Mac Pro, Qio CF4 conveniently connects to your system via an ExpressCard/34 or PCIe 2.0 interface card, or Thunderbolt interface, so your projects are always at hand.

6Gb/s SATA PCIe 2.0 Host Controller Inside

Qio CF4 includes two 6Gb/s eSATA ports, perfect for connecting media readers with an eSATA interface, such as the RED STATION REDMAG 1.8" and 2.5".

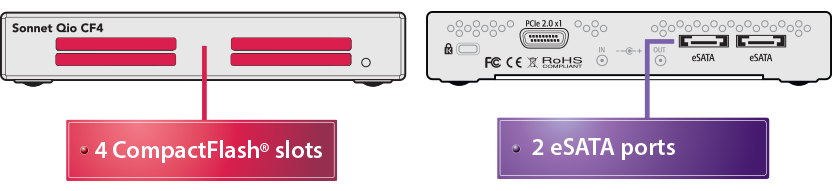

Qio CF4 Front & Back Panels Overview



Media cards, computers, and accessories shown in photos for illustration purposes; items sold separately.
Part No.

Qio CF4 (with PCIe Card Interface)
QIO-CF4-PCIE Discontinued
Qio CF4 (with ExpressCard/34 Card Interface)
QIO-CF4-E34 Discontinued
Qio CF4 (with Thunderbolt Interface Kit)
QIO-CF4-TB


Discontinued
Hardware
Warranty 2-year
Form Factor Qio media card reader
External Connectors
(Qio CF4 Enclosure)
  • Four CompactFlash (CF)
  • Two 6Gb/s eSATA
  • External PCIe 2.0 x1 18-pin
  • Two 12V power
Host Connector
(PCIe and ExpressCard Adapter Cards)
  • External PCIe x1 - 18
Host Connector
(Thunderbolt Adapter)
  • Thunderbolt
Bus Interface PCI Express 2.0 x1
Supported Media Type I CompactFlash
External Media Readers Supported Two with eSATA interface, such as RED STATION REDMAG 1.8" or 2.5"
Firmware Flash-ROM upgradeable to latest firmware version
Hot Plug Qio CF4 Supported when connected via Thunderbolt
Dimensions WxDxH: 5.9 x 6.2 x 1 in. (14.9 x 15.7 x 2.5 cm)
Power
  • 12V @ 3A input
  • 12V @ 0.5A output to support Sonnet Fusion F2QR
Absolute Maximum Input Voltage 20V
RoHS Compliant Yes
Universal Package Contents
  • Qio CF4 Pro CompactFlash Media Reader
  • Universal 12V power supply with 10-foot cable
  • 1-meter external PCIe x1 interface cable
  • Documentation
Unique Package Contents
(QIO-CF4-PCIE)
  • PCIe 2.0 bus extender card
Unique Package Contents
(QIO-CF4-E34)
  • PCIe 2.0 bus extender ExpressCard/34
Uniqe Package Contents
(QIO-CF4-TB)
  • Thunderbolt interface adapter
  • 0.5-meter Thunderbolt cable



Specifications subject to change without notice.

white space









Mac Compatibility

OS X 10.6.8-10.12.6

macOS Sierra compatible

Mac® with a Thunderbolt or Thunderbolt 2 port
Part No. QIO-CF4-TB

Mac Pro® (with card slots)
Part No. QIO-CF4-PCIE

MacBook® Pro (with an ExpressCard/34 slot)
Part No. QIO-CF4-E34



Mac LogoeSATA LogoExpressCard LogoCompactFlash LogoroHS Logo

Simultaneous Ingest Aggregate Speed

System Legacy Mac Pro Mac (with Thunderbolt) MacBook Pro
Qio CF4 Interface PCIe Card Thunderbolt ExpressCard/34
1 x CF Card 160 MB/sec 160 MB/sec 160 MB/sec
2 x CF Cards 320 MB/sec 320 MB/sec 200 MB/sec
3 x CF Cards 410 MB/sec 410 MB/sec 200 MB/sec
4 x CF Cards 410 MB/sec 410 MB/sec 200 MB/sec
Shadow
Product Part No. Description
FireWire Power Cable FireWire 400-to-3.5mm Power Cable CABLE-PWR-P200S 1-meter FireWire 400 to 3.5mm power connector cable
XLR 4-pin DC Power Adapter Cable XLR 4-pin DC Power Adapter Cable QCB-XLR4 XLR 4-pin adapter cable
Sonnet PCIe Bus Extender ExpressCard/34 Adapter PCIe 2.0 Bus Extender ExpressCard/34 PCIE-E34 Spare ExpressCard/34 interface
Qio Thunderbolt Interface Adapter Kit Qio Thunderbolt Interface Adapter Kit QTB-IFK Thunderbolt interface adapter with PCIe and Thunderbolt cables
