Presto Gigabit Pro PCIe (GE1000LA-E) is sold out and replaced by revised product (GE1000LAB-E).

Advanced Network Connection

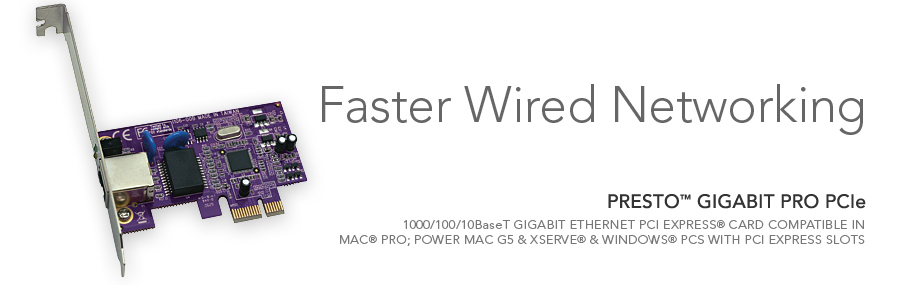

Whether you need to add a third Gigabit Ethernet port to your Mac Pro for improved performance, or step up to Gigabit Ethernet connectivity for your PC, get a Sonnet Presto™ Gigabit Pro PCIe Gigabit Ethernet adapter card for PCI Express for an advanced networking solution! This Sonnet card supports link aggregation(1) with your Mac’s onboard Gigabit Ethernet ports and full duplex communication to achieve 2000 Mbps transfer rates—the ideal solution for high-bandwidth data transfer requirements. Presto Gigabit Ethernet Pro PCIe also supports 9000 byte jumbo packet transfers (compared to 1500 byte standard packets) to support higher performance and reduced overhead when transferring large files.

Usage vignette for Presto Gigabit Pro PCIe

Whether you need to add a third Gigabit Ethernet port to your Mac Pro for improved performance, or step up to Gigabit Ethernet connectivity for your PC, get a Sonnet Presto Gigabit Pro PCIe Gigabit Ethernet adapter card for PCI Express for an advanced networking solution!





Key Features

Simple way to add or expand Gigabit Ethernet connectivity to any compatible computer

Supports gigabit speeds on common CAT-5 cabling—no need for costly cable replacement

Supports jumbo packets (Mac and Windows)

Supports link aggregation with onboard Gigabit Ethernet ports (Mac only)

Full/half duplex

1000/100/10BaseT auto-negotiation

Plug-and-play installation in Mac computers

Thunderbolt-compatible

Shadow

Presto Gigabit Pro PCIe supports gigabit speeds over common CAT-5 cabling, so costly cable replacement is unnecessary. If your computer already has onboard Gigabit Ethernet, you can add a Presto Gigabit Pro PCIe and use it for dedicated connection to a printer, AirPort® Extreme base station, DSL or cable modem, or a video server, while leaving your onboard Gigabit Ethernet port(s) available for other connections.

Presto Gigabit Pro PCIe is compatible in Mac Pro, and Power Mac G5 & Xserve(2) & PCs with a PCI Express (PCIe) slot. Offering simple configuration, this Sonnet card is easy to use, and its support for 1000/100/10BaseT auto-negotiation and full/half duplex communication enable it to be used in most networks.

Part No.
GE1000LA-E Discontinued; replaced by revised product
(GE1000LAB-E)
Hardware
Warranty 1-year
RoHS Compliant Yes
Network Connectors One RJ-45 connector supports 1000Mbps, 100Mbps, 10Mbps network speed and Auto-MDI/MDI-X
Bus Interface PCI Express x1
Standard Compliant with 10/100/1000 IEEE 802.3 specification
Network Gigabit Ethernet (1000BaseT, 100BaseTX, 10BaseT)
Network Power UTP x 1 (Auto-MDI/MDI-X)
IRQ Line Assigned by system
I/O Address Assigned by system
Transmission Rates 10 Mbps/20 Mbps;
100 Mbps/200 Mbps;
1000 Mbps/2000 Mbps
Link Supports Link Aggregation
Packets Maximum packet size:
9000 bytes (Jumbo packets)
Package Contents PCIe Ethernet network adapter card











Mac Compatibility

Mac Pro® (with card slots), OS X® 10.4.11+

Power Mac G5 (with PCIe slots), OS X 10.5.8+

Xserve (Late 2006)(2) ,OS X Server 10.4.11+

OS X Yosemite compatible

Windows Compatibility

PC (with PCIe slots)(3)

Windows® 8, 7, Vista®

Windows Server 2003, XP

Technical Notes

  1. Link aggregation not supported by Windows Vista.
  2. Xserve (Early 2008) and Xserve (2009) not compatible.
  3. Not compatible with PCIe 3.0 slots.

Specifications subject to change without notice.
