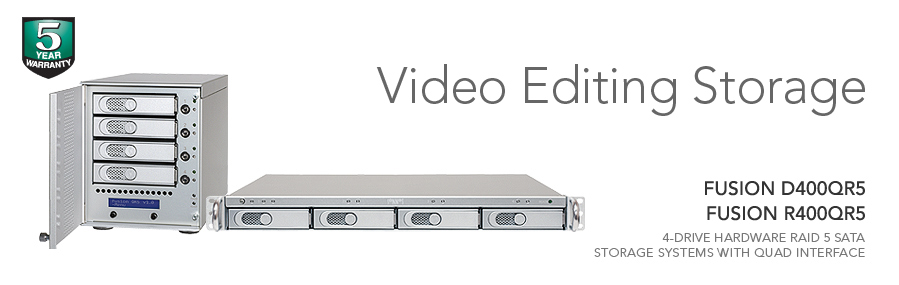

    Considering a multi-drive storage system? If so, you already know about the benefits of striping data across multiple drives—you’ll gain the faster performance necessary for working with HD video formats when you connect the system to an eSATA host controller. Sonnet’s Fusion™ D400QR5 desktop and Fusion R400QR5 rackmount SATA storage systems deliver speed, reliability, and versatility in easy to deploy packages. Fusion D400QR5 and R400QR5 systems offer security, too—each one features a high performance internal RAID controller that manages the enclosed drives and supports RAID 5 drive formatting, which provides data protection in case one of the drives fails. Available in configurations from 4 to 12TB, these Sonnet storage systems incorporate an informative display and status LEDs, and simple to use controls that enable you to easily configure the drives or select information to be displayed.

    Connected to a Sonnet Tempo™ SATA E4P PCIe or X4P PCI-X host controller installed in a Mac® or Windows® computer, a Fusion D400QR5 or R400QR5 system’s drives can be accessed at maximum speed(2), whether configured as a RAID 0 or RAID 5 set. With its drives configured as a RAID 5 group (four drives striped with parity across all group members), a single Fusion D400QR5 or R400QR5 system achieves data throughput of 225 MB/sec read and 210 MB/sec write, fast enough to support multiple streams of DV, HDV, DVCPRO, ProRes 422, or a single stream of uncompressed 10-bit NTSC video. Do you want even more performance? Up to four Fusion D400QR5 or R400QR5 systems can be ganged on a single Tempo SATA E4P or X4P controller for enhanced data throughput and multiple times the available streams (as well as increasing the number of supported video formats).

    One Cable, All the Data

    Fusion Enclosure Back PanelFusion D400QR5 and R400QR5 storage systems feature a quad interface that requires just a single locking data cable to connect the enclosure to an eSATA host controller card. This efficient interface simplifies setup and cuts cable clutter without compromising performance. No SATA? No problem—connected via a single FireWire® 800, FireWire 400, or USB cable, all four drives can be accessed at the full speed of the respective interface. Sonnet even includes all the cables so you can connect your Fusion storage system right out of the box.

    Quad Interface Logos



    Information on Display

    Fusion R400QR5 DisplayFusion 400QR5 storage systems feature integrated controls and an informative display (rear-mounted on the R400QR5), making setup and monitoring simple. RAID mode, drive health (S.M.A.R.T., or Self Monitoring, Analysis, and Reporting Technology), drive temperature, and operating status can be displayed with a couple of button presses. Status LED indicators enable you to determine drive presence, activity, and fault status at a glance.

    Quiet Either Way

    To keep things cool, the Fusion D400QR5 uses a swappable fan module. The fan is 80% quieter than a standard case fan, making this system perfectly suited for use in noise-sensitive environments. The 1U rackmount Fusion R400QR5 system enclosure, at just 1.75" tall, is simple to deploy in most server racks, but can also be used on a desktop—use of four low noise fans make it suitable for use in noise-sensitive environments, too.

    Key Features

    High Performance, Protected Data—When connected via eSATA and with four 1TB drives configured as a RAID 5 set, data transfers up to 225 MB/sec read, 210 MB/sec write while protecting the data

    RAID 5 Onboard—Integrated hardware RAID controller supports RAID 5 drive configuration on its own; no need for a specialized RAID controller card

    Four Interfaces, Single Cable Connection—Choose from eSATA, FireWire 800, FireWire 400, and USB 2.0 interfaces, and connect to your computer with a single cable

    Informative Display and LED Indicators—Determine operating status at a glance

    Simple Configuration—Integrated controls enable you to select RAID modes and configure the drives to meet your performance and data security needs, no matter which interface you choose

    Quiet Fans—Low fan noise levels make these Fusion storage systems suitable for use in noise-sensitive environments

    4TB, 8TB, and 12TB configurations

    eSATA, FireWire 800, FireWire 400 and USB cables included

    Compatible with Sonnet Tempo™ SATA PCI-X, PCIe, and ExpressCard/34 host controllers

    RoHS compliant

    Shadow

    Quiet
    Fusion D400QR5 storage systems integrate an ultra-quiet, user-swappable fan module using the Vantec Stealth™ fan. This fan is 80% quieter than a standard case fan, making these desktop system well suited for use in noise-sensitive environments. Fusion R400QR5 storage systems employ four low-noise fans, making these rackmount systems suitable for desktop use, too.

    Secure Connection
    Fusion D400QR5 and R400QR5 enclosures link to Sonnet Tempo SATA E4P and X4P SATA host controller cards with Sonnet’s exclusive locking eSATA data cables with connectors that lock securely at both ends.

    Driving Force

    Fusion D400QR5 and R400QR5 storage systems employ Sonnet certified desktop drives that have been selected for their superior performance, error handling, and reliability characteristics, especially when used in RAID groups. These drives are subjected to hours of additional, stringent testing to check for soft errors, vibration, and other reliability predictors. Just the sturdiest drives pass these tests become the building blocks of a super-reliable Fusion storage system.

    Versatile Performance

    These systems are ideal for use in mixed environments—various operating systems, editing applications and output demands requiring the flexibility and interoperability that Fusion D400QR5 and R400QR5 storage systems provide. These Fusion storage systems support Mac OS® X, Windows 7, Vista®, Windows XP(4) Windows Server 2008 and 2003, and Linux. They are compatible with caputre cards from AJA, Blackmagic Design, Matrox, and Bluefiss444, and work with all mainstream video editing applications including Apple® Final Cut Pro®, and Adobe® Premiere® Pro.



    Part No.
    FUS-D4QR5 Discontinued
    Hardware
    Warranty 5-year
    External Connectors eSATA, 2 x FireWire 800, FireWire 400, Mini-USB 2.0
    Drives Supported Up-to-date compatible hard drives listed on our Certified Hard Drive Compatibility Chart
    Data Transfer Speed Up to 225 MB/s, depending on drives, interface(2), and configuration
    Supported Drive Configurations Hardware-based RAID 0, 5(3)
    Supported Vide Formats Uncompressed 10-bit NTSC HD, DV, HDV, DVCPRO, and uncompressed SD
    Power Supply Universal 180W, 100–240V AC, 50–60Hz
    Operating Temperature +32º F to +95º F (0º C to +35º C)
    Dimensions (D400QR5) WxDxH: 5.9 x 11.2 x 7.5 in (14.9 x 28.5 x 19.0 cm)
    Dimensions (R400QR5) WxDxH: 17.0 x 16.5 x 1.75 in (43.8 x 41.9 x 4.4 cm)
    Weight (D400QR5) 14.7 lbs (6.7 kg) with drives,
    9.1 lbs (4.1 kg) without
    Weight (R400QR5) 18.4 lbs (8.3 kg) with drives,
    12.8 lbs (5.8 kg) without
    Noise Fusion D400QR5: 40 dBA
    Fusion R400QR5: 41 dBA
    (Ambient Office 40-50 dBA)
    Package Contents
    • Disk enclosure
    • Four 3.5" drive modules
    • One locking eSATA cable
    • One FireWire 800 cable
    • One FireWire 400 cable
    • One USB cable
    • Power cord
    • User’s Guide















    OS Compatibility

    Platform independent—works with Mac, Windows(4), and Linux computers

    Capture Card Compatibility

    AJA, Blackmagic Design, Matrox, and Bluefish444

    Video Editing Application Compatibility

    Apple Final Cut Pro and Adobe Premiere Pro

    Technical Notes

    1. Although hard drive manufacturers and Mac OS X 10.6 define 1 gigabyte as 1,000,000,000 byte, many other computer operating systems calculate a gigabyte by dividing the bytes by 1,073,741,824 (). This distinction may be a cause of confusion, as a hard disk with a manufacturer rating of 1000GB may have its capacity reported by the operating system as 915GB.
    2. When connected to a computer via its eSATA interface, Fusion D400QR5 and R400QR5 storage systems perform their best when used with a high performance SATA host controller such as Sonnet's Tempo SATA E4P for computers with PCI Express slots, Tempo SATA X4P for computers with PCI-X slots, or Tempo SATA Pro ExpressCard/34 for portable computers with an ExpressCard slot.
    3. Creating RAID volumes under Windows requires dynamic disk storage, a formatting option available with Windows Server 2008 R2, Windows Server 2003 SP1, Windows 7 Professional, Enterprise or Ultimate (32- and 64-bit versions), Windows Vista Enterprise or Ultimate (32- and 64-bit versions), or Windows XP Professional (32- and 64-bit versions). In order to create RAID volumes larger than 2TB, you must do one of the following: Span (link together in a virtual chain) the volumes, and then format them as NTFS. -OR- Use GPT formatting. Note that drives and volumes with GPT formatting are not visible to any version of Windows XP Professional, nor to the 32-bit version of Windows Server 2003 SP1.
    4. Applicable to Fusion D400QR5/R400QR5 shipped from Sonnet April 12, 2011 and later.
    5. All 4, 8 and 12TB models of the Fusion D400QR5 and R400QR5 ship with hard drives which have been tested to support video editing applications. These drives are among those noted as "approved for video editing" as found on the Drive Compatibility Matrix.


    Specifications subject to change without notice.
