eSATA & Thunderbolt Logos

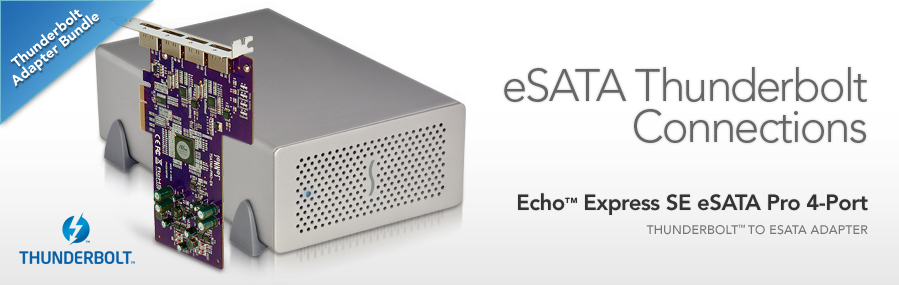

6 Gb/s eSATA Over Thunderbolt

Do you need an uncomplicated way to connect a Thunderbolt technology-enabled Mac to high speed storage using the eSATA interface? Look no further—Sonnet's new Echo Express eSATA Pro 4-Port Thunderbolt Adapter provides you a powerfully simple way to add 6 Gb/s eSATA connectivity to your iMac®, Mac® mini, MacBook® Air, or MacBook Pro computer with a Thunderbolt port.

The Echo Express SE eSATA Pro 4-Port is a Thunderbolt-to-eSATA adapter that bundles the Echo Express SE PCIe Expansion Chassis for PCIe Cards and the Tempo™ SATA Pro 6Gb 4-Port eSATA host controller, providing you a plug-and-play solution for adding four high-performance eSATA ports to any computer with a Thunderbolt port. This adapter enables you to connect eSATA port-equipped single- and multi-drive storage systems and take advantage of the 6 Gb/s interface’s superior throughput compared to all FireWire and USB interfaces. The Tempo SATA Pro 6Gb 4-Port card was designed for optimum performance over Thunderbolt, and the adapter's ability to support aggregate transfer speeds of up to 760 MB/s reflects its optimized design. Setup is simple—connect the Echo Express SE eSATA Pro 4-Port to the host computer via a Thunderbolt cable (sold separately) and to storage via eSATA cables (sold separately), plug in the included power supply, and then configure the attached storage using the OS X® Disk Utility application. A temperature-controlled, variable-speed fan keeps the adapter running cool and whisper-quiet. Two Thunderbolt ports support daisy chaining of up to six devices to a single port on the host computer. This Sonnet Thunderbolt adapter includes a five-year warranty.



Key Features

Provides eSATA Connectivity to Most Mac Computers—Powerfully simple way to add four high-performance 6 Gb/s eSATA ports to your Thunderbolt-enabled computer

Easy Setup—AHCI compliance ensures plug-and-play configuration; attached drives configured using the OS X Disk Utility application

Temperature-Controlled, Variable-Speed Fan—Ensures quiet operation

Two Thunderbolt Ports—Daisy chain up to six devices to a single port on the host computer

Pro 5-Year Warranty—Includes 5-year warranty

Shadow

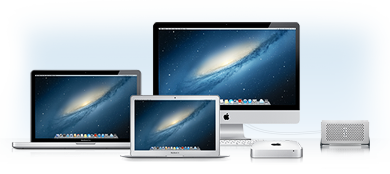

Echo Express SE eSATA Adapter Connected to Macs


Sonnet Thunderbolt eNews Signup

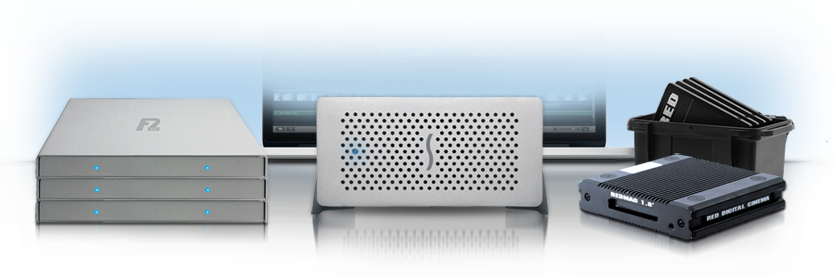

Echo Express SE eSATA Adapter Connected to Portable Devices

Fast 4-Port eSATA 6 Gb/s Connections. The Echo Express SE eSATA Pro 4-Port Thunderbolt-to-eSATA Adapter enables speedy transfers from an array of connected devices, such as three portable Fusion F2QR portable RAID storage drives and a REDMAG 1.8" SSD drive, to your Thunderbolt port-equipped Mac for the ultimate portable video workflow.

Part No. Product Discontinued
ECHO-EXP-SE4S Discontinued
Hardware
Warranty 5-year
Dimensions WxDxH: 5.7 x 8.8 x 2.9 in. (14.5 x 22.3 x 7.4 cm)
Weight

2.6 lbs. (1.18 kg)

External Connectors
  • Two Thunderbolt
  • Four locking eSATA
  • 12V power
Drives Supported Up to 16(2)
Data Transfer Rate Up to 760 MB/s aggregate
Drive Types Supported SATA 6 Gb/s, SATA 3 Gb/s, and SATA 1.5 Gb/s
AHCI Support

Boot from attached drives, hot-plug drive

Advanced Features
  • Supports drive hot-swapping
  • Supports ATAPI (CD/DVD) drives
  • Supports S.M.A.R.T. status data reporting
  • Supports Spread Spectrum Clocking for compatibility with SATA drives and for lower EMI emissions
Power Adapter Input: 100-240V AC 1.6A, 50-60 Hz
Output: 12V@5.0A (60W)
Operating Temperature

0º C to 35º C (32º F to 95º F)

RoHS Compliant Yes
Package Contents
  • Echo Express SE eSATA Pro 4-Port Thunderbolt-to-eSATA Adapter(1)
  • Universal power adapter
  • Power cord
  • User's guide

Note: Thunderbolt and eSATA cables sold separately














Compatibility

iMac, Mac mini, MacBook Air, or MacBook Pro with a Thunderbolt port

Mac OS X 10.6.8+

Mac OS X Server 10.6.8+

Mac OS X Server and OS X Mavericks compatible


Technical Notes

  1. eSATA cables sold separately; requires Thunderbolt cable, available at the Apple Store.
  2. Support for up to 16 drives requires the use of drive enclosures employing a hardware RAID controller (like Sonnet's Fusion D400QR5 or R400QR5).


Specifications subject to change without notice.
