Connect a High-Performance Graphics Card
or Other Bandwidth-Hungry PCIe Card to a
Thunderbolt™ 3 Equipped Computer

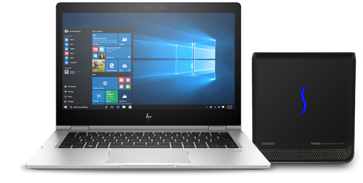

Thunderbolt 3 Notebooks

Sonnet’s eGFX Breakaway Box, a Thunderbolt 3 to PCIe card expansion solution, supports any Thunderbolt compatible PCIe card, but is designed specifically for bandwidth-intensive video graphic cards. The Breakaway Box enables all the popular GPU cards that support connecting to a computer over Thunderbolt such as AMD Radeon® R9 and RX and NVIDIA® GeForce® GTX7, 9 and 10 series, providing GPU support for computationally-intensive applications and games.

AMD RADEON & NVIDIA GEOFORCE GTX Logos
Supports AMD XCONNECT Technology

Graphic Intensive Gaming

Gamer with eGFX Breakaway Box There’s no need to carry a heavy and expensive gaming laptop to have a great gaming experience—just plug in a Breakaway Box and add the GPU power you want when you need it! By delivering much higher frame rates for smooth game play, the Breakaway Box is ideal for enabling graphic-intensive gaming on computers (such as thin/light notebooks) that otherwise would not be able to produce an acceptable gaming experience. When used with computers that properly support eGPUs, accelerated graphics can either be displayed on your notebook’s own display panel or on external monitors. And, unlike with gaming laptops, when the next generation of GPUs rolls around and you are ready for another performance boost, simply upgrade the GPU card—nobody should have to replace their computer just to keep up with the latest in GPU technology.

Ready for Work, Coolest & Quietest eGFX Graphics Card Box on the Market

PCIe Card and Notebook Icons

In addition to eGPU cards, the Breakaway Box supports every other Thunderbolt-compatible PCIe card, regardless of the card's length or width—its single x16 PCIe 3.0 slot easily accommodates full-length cards such as the RED Rocket-X or AVID Pro Tools|HDX.
The Breakaway Box’s single-port 40Gbps Thunderbolt 3 interface ensures the full 2750 MB/s of PCIe bandwidth⁽¹⁾ is dedicated to the installed card.

eGFX Breakaway Box Internal Fan

The Sonnet eGFX Breakaway Box is the coolest and quietest eGFX box on the market—with its large variable-speed, temperature-controlled fan that quietly and effectively cools the installed card, the Breakaway Box can be comfortably used in noise-sensitive working environments.

Key Features

Connects High Performance GPU Cards to Computers with Thunderbolt 3 Ports—Connects a supported GPU card to your eGFX-compatible computer with Thunderbolt 3 ports

Supports Cards With Popular GPU Chipsets—Includes AMD Radeon R9 and RX and NVIDIA GeForce GTX 7, 9 and 10 series

x16 PCI Express 3.0 slot—Supports up to full-length, full-height, single- or double-width card

Supports Other Thunderbolt™ 3 Compatible PCIe Cards—Perfect for full-length cards such as the RED ROCKET-X or AVID Pro Tools|HDX

40Gbps Thunderbolt 3 Interface with One Thunderbolt 3 (USB-C) Port—Ensures full 2750 MB/s of PCIe bandwidth⁽¹⁾ is dedicated to the installed card

Choice of Models—eGFX Breakaway Box supports up to 300W card and delivers 15W of upstream power; 550 model supports up to 375W card and delivers up to 87W upstream power to charge your computer; Developer Edition (included as part of the Apple External Graphics Development Kit, not sold separately) supports up to 225W card and delivers up to 60W of upstream power.

Quietest eGFX System Available—Large built-in, variable-speed, temperature-controlled fan quietly and effectively cools the installed card

Thunderbolt Certified for Mac & Windows

Gallery

Liquid Coolers Supported

eGFX Breakaway Box with Mac Pro In Video Editing Studio

For Media Professionals

In today’s 4K workflows, harnessing the computational engine in today’s GPU cards is essential to keeping up with on-set and post production timelines. The eGFX Breakaway Box is ideal for supporting the acceleration of special effects, animation, color grading, rendering, and editing.

40Gbps Thunderbolt 3 Performance

Thunderbolt 3 Port Icon Thunderbolt 3 is a leap forward in every way. Whether you’re editing 4K video at high frame rates or blasting aliens out of the sky, you can now transform your notebook into a true desktop experience. With up to 2750 MB/s available bandwidth⁽¹⁾, the Breakaway Box exploits its 40Gbps Thunderbolt 3 interface to offer the best-possible eGPU experience, or handle the most demanding, highest performance PCIe cards.

Two Models From Which to Choose

Sonnet offers two eGFX Breakaway Box models from which to choose, enabling you to select
one best suited to your needs:

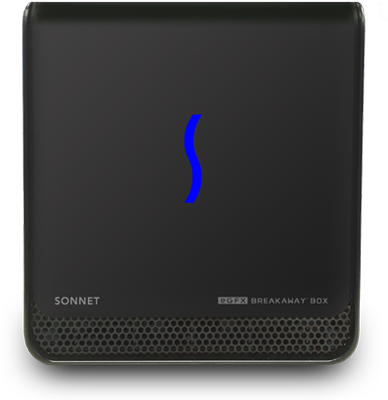

eGFX Breakaway Fox Front Shot

eGFX Breakaway Box

Includes one 8-pin (6+2 pin) plus one 6-pin auxiliary power connectors, supports cards requiring up to 300W of power (~600W recommended system power equivalent), and provides 15W of upstream power.

eGFX Breakaway Fox Front Shot

eGFX Breakaway Box 550

Includes two 8-pin (6+2 pin) auxiliary power connectors, supports cards requiring 375W of power (~750W recommended system power equivalent), and provides 87W of upstream power, useful for charging your notebook.

eGFX Breakaway Box 550 ships late September, 2017 | Notify Me

Additionally, the eGFX Breakaway Box Developer Edition (included as part of the Apple External Graphics Development Kit, not sold separately) includes one 8-pin auxiliary power connector, supports cards requiring 225W or less power (500W recommended system power equivalent), and provides 60W of upstream power.

All models include a 0.5-meter Thunderbolt 3 (40Gbps) cable to connect the box to your computer. Whichever model you choose, the Breakaway Box is Thunderbolt Certified for Mac and Windows.

eGFX Breakaway with Notebook & Three Monitor Setup

Fire Power to Drive Multiple Displays and Charge Your Notebook

Part No.
GPU-350W-TB3Z	eGFX Breakaway Box Equivalent to ~600W recommended system power One 8-pin (6+2 pin) plus one 6-pin power connector Supports up to 300W card Provides laptop charging up to 15W
GPU-550W-TB3	eGFX Breakaway Box 550 Equivalent to ~750W recommended system power Two 8-pin (6+2pin) power connectors Supports up to 375W card Provides laptop charging up to 87W
eGFX Breakaway Box 550 ships late September, 2017 \| Notify Me
GPU-350W-TB3	eGFX Breakaway Box Developer Edition Equivalent to ~500W recommended system power One 8-pin (6+2 pin) power connector Supports up to 225W card Provides laptop charging up to 60W (included as part of the Apple External Graphics Development Kit, not sold separately)
Hardware
Warranty	1-year
Form Factor	Desktop Thunderbolt 3 to PCIe card expansion system
External Connectors	One Thunderbolt 3 (USB-C) Power (C14-type)
Expansion Slot	One PCIe 3.0 slot x16 Mechanical x4 Electrical (Thunderbolt 3 Spec)
PCIe Card Supported	One full-length, full-height, double-width PCIe card
Liquid Cooling (Liquid Cooling Support)	Supports 120mm Water Block Coolers
Input Power	Universal 110-240V AC, 50-60 Hz
Operating Temperature	0˚C to 35˚C (32˚F to 95˚F)
Dimensions (WxDxH)	7.25 x 13.38 x 8 in. (18.5 x 34.0 x 20.2 cm)
Weight	7.1 lbs (3.2 kg)
RoHS Compliant	Yes
Package Contents	eGFX Breakaway Box system Power cord 0.5-meter Thunderbolt 3 (40Gbps) cable Documentation Note: PCIe cards sold separately
Specifications subject to change without notice

Windows Compatibility

Windows PC with a Thunderbolt 3 port (GPU card requires an eGFX-enabled Windows PC)

64-bit Windows 10, version 1703 or later

Mac Compatibility

Mac with Thunderbolt 3 ports

Mac with a Thunderbolt 2 or Thunderbolt port with an Apple Thunderbolt 3 (USB C) to Thunderbolt 2 Adapter

macOS 10.12.5+

GPU card use see tech note 2

Technical Notes

While the eGFX Breakaway box features a 40Gbps Thunderbolt 3 interface, some computers equipped with Thunderbolt 3 use an x2 PCIe lane implementation of Thunderbolt 3 technology that limits PCIe performance to 20Gbps. Find more computer information here. Full performance also requires the use of the included Thunderbolt 3 (40Gbps) cable, or other Thunderbolt 3 (40Gbps) cables; look for the Thunderbolt icon AND the number 3 on the connector housings to identify these cables.
Other than macOS High Sierra Developer Beta, macOS does not yet support connection of GPU cards over Thunderbolt and GPU card drivers are not yet officially Thunderbolt compatible for macOS.
Choose eGFX Breakaway Box model that supports the power requirement of the chosen card.

GPU Card Family Support⁽³⁾
AMD GPU Cards Supported
	AMD Radeon RX 580 AMD Radeon RX 570 AMD Radeon RX 560 AMD Radeon RX 550 AMD Radeon RX 480 AMD Radeon RX 470 AMD Radeon RX 460	AMD Radeon R9 Fury AMD Radeon R9 Nano AMD Radeon R9 300 Series AMD Radeon R9 290X AMD Radeon R9 290 AMD Radeon R9 285
NVIDIA GPU Cards Supported
	NVIDIA GeForce GTX Titan Xp NVIDIA GeForce GTX 1080 Ti NVIDIA GeForce GTX 1080 NVIDIA GeForce GTX 1070 NVIDIA GeForce GTX 1060 NVIDIA GeForce GTX 1050 Ti NVIDIA GeForce GTX 1050	NVIDIA GeForce GTX Titan X NVIDIA GeForce GTX 980 Ti NVIDIA GeForce GTX 980 NVIDIA GeForce GTX 970 NVIDIA GeForce GTX 960 NVIDIA GeForce GTX 950 NVIDIA GeForce GTX 750 Ti NVIDIA GeForce GTX 750
See Graphics Cards tab for details. Future cards listed as they become available.
Other PCIe Cards
PCIe cards listed on our supporting PCIe Card Thunderbolt Compatibility Chart and as specified by card manufacturers.

Graphics Cards Power Compatibility

Manufacturer	Video Card	Part No.	Power Connectors	Breakaway Developer Ed. (8-pin)	Breakaway (8-pin+6-pin)	Breakaway 550 (8-pin+8-pin)

ASUS	Radeon RX 460 ROG Strix	ROG STRIX-RX 460-O4G-GAMING	6-pin
ASUS	Radeon RX 460 Dual Series	DUAL-RX460-O2G	-
ASUS	Radeon RX 470 ROG Strix	ROG STRIX-RX 470-O4G-GAMING	6-pin
ASUS	Radeon RX 480 ROG Strix Aura	ROG STRIX-RX 480-O8G-GAMING	8-pin
ASUS	Radeon RX 480 Dual Series 4G	DUAL-RX480-O4G	8-pin
ASUS	Radeon RX 480 Dual Series 8G	DUAL-RX480-O8G	8-pin
ASUS	Radeon RX 550 2G	RX550-2G	-
ASUS	Radeon RX 550 4G	RX550-4G	-
ASUS	Radeon RX 560 ROG Strix OC 4G	ROG-STRIX-RX560-O4G-GAMING	6-pin
ASUS	Radeon RX 560 OC Edition 2G	RX560-O2G	6-pin
ASUS	Radeon RX 560 ROG Strix 4G	ROG-STRIX-RX560-4G-GAMING	6-pin
ASUS	Radeon RX 560 OC 4G	RX560-O4G	6-pin
ASUS	Radeon RX 560 4G	RX560-4G	6-pin
ASUS	Radeon RX 570 ROG Strix OC 4G	ROG-STRIX-RX570-O4G-GAMING	8-pin
ASUS	Radeon RX 570 ROG Strix 4G	ROG-STRIX-RX570-4G-GAMING	8-pin
ASUS	Radeon RX 580 ROG Strix OC 8G	ROG-STRIX-RX580-O8G-GAMING	8-pin
ASUS	Radeon RX 580 Dual Series OC 4G	DUAL-RX580-O4G	8-pin
ASUS	Radeon RX 580 ROG Strix 8G	ROG-STRIX-RX580-T8G-GAMING	8-pin
ASUS	Radeon RX 580 Dual Series OC 8G	DUAL-RX580-O8G	8-pin
ASUS	Radeon RX 580 ROG Strix 8G Aura	ROG-STRIX-RX580-8G-GAMING	8-pin
ASUS	Radeon RX 580 Dual Series 4G	DUAL-RX580-4G	8-pin

Gigabyte	Radeon RX 460 Windforce OC 2G	GV-RX460WF2OC-2GD	-
Gigabyte	Radeon RX 460 Windforce OC 4G	GV-RX460WF2OC-4GD	-
Gigabyte	Radeon RX 470 Windforce OC 4G	GV-RX470WF2-4GD	8-pin
Gigabyte	Radeon RX 470 G1 Gaming 4G	GV-RX470G1 GAMING-4GD	8-pin
Gigabyte	Radeon RX 480 Windforce OC 4G	GV-RX480WF2-4GD	8-pin
Gigabyte	Radeon RX 480 Windforce OC 8G	GV-RX480WF2-8GD	8-pin
Gigabyte	Radeon RX 480 G1 Gaming 4G	GV-RX480G1 GAMING-4GD	8-pin
Gigabyte	Radeon RX 480 G1 Gaming 8G	GV-RX480G1 GAMING-8GD	8-pin
Gigabyte	Radeon RX 480 8G	GV-RX480D5-8GD-B	6-pin
Gigabyte	Radeon RX 550 D5 2G	GV-RX550D5-2GD	-
Gigabyte	Radeon RX 550 Gaming OC 2G	GV-RX550GAMING OC-2GD	-
Gigabyte	Radeon RX 560 Gaming OC 4G	GV-RX560GAMING OC-4GD	6-pin
Gigabyte	Radeon RX 560 OC 2G	GV-RX560OC-2GD	-
Gigabyte	Radeon RX 560 OC 4G	GV-RX560OC-4GD	-
Gigabyte	Radeon RX 560 Gaming OC 2G	GV-RX560GAMING OC-2GD	6-pin
Gigabyte	Radeon RX 570 4G	GV-RX570AORUS-4GD	8-pin
Gigabyte	Radeon RX 570 Gaming 4G	-	8-pin
Gigabyte	Aorus Radeon RX 580 4G	GV-RX580AORUS-4GD	8-pin
Gigabyte	Aorus Radeon RX 580 8G	GV-RX580AORUS-8GD	8-pin
Gigabyte	Radeon RX 580 Gaming 4G	GV-RX580GAMING-8GD	8-pin
Gigabyte	Radeon RX 580 Gaming 4G	GV-RX580GAMING-4GD	8-pin
Gigabyte	Aorus Radeon RX 580 XTR 8G	GV-RX580XTRAORUS-8GD	8-pin + 6-pin	-

MSI	Radeon RX 460 2GT LP	R4602GTLP	-
MSI	Radeon RX 460 2G OC	R4602GC	-
MSI	Radeon RX 460 4G OC	R4604GC	-
MSI	Radeon RX 470 Armor 4G OC	R470AR4C	8-pin
MSI	Radeon RX 470 Armor 8G OC	R470AR8C	8-pin
MSI	Radeon RX 470 Gaming 4G	R470G4	8-pin
MSI	Radeon RX 470 Gaming 8G	R470G8	8-pin
MSI	Radeon RX 470 Gaming X 8G	R470GX4	8-pin
MSI	Radeon RX 470 Gaming X 8G	R470GX8	8-pin
MSI	Radeon RX 480 8G	R4808G	6-pin
MSI	Radeon RX 480 Armor 4G	R480AR4	8-pin
MSI	Radeon RX 480 Armor 4G OC	R480AR4C	8-pin
MSI	Radeon RX 480 Armor 8G	R480AR8	8-pin
MSI	Radeon RX 480 Armor 8G OC	R480AR8C	8-pin
MSI	Radeon RX 480 Gaming 4G	R480G4	8-pin
MSI	Radeon RX 480 Gaming 8G	R480G8	8-pin
MSI	Radeon RX 480 Gaming X 4G	R480GX4	8-pin
MSI	Radeon RX 480 Gaming X 8G	R480GX8	8-pin
MSI	Radeon RX 550 2GT LP OC	R5502GTLPOC	-
MSI	Radeon RX 570 Gaming X 4G	R570GX4	8-pin
MSI	Radeon RX 580 Armor 4G OC	R580AR4C	8-pin
MSI	Radeon RX 580 Armor 8G OC	R580AR8C	8-pin
MSI	Radeon RX 580 8G	R5808G	8-pin
MSI	Radeon RX 580 Gaming X 4G	R580GX4	8-pin
MSI	Radeon RX 580 Gaming X 8G	R580GX8	8-pin
MSI	Radeon RX 580 Gaming X+ 8G	R580GXp8	8-pin + 8-pin	-	-

PowerColor	Radeon RX 460 2GB Red Dragon Single Fan	AXRX 460 2GBD5-DH/OC	-
PowerColor	Radeon RX 460 4GB Red Dragon	AXRX 460 4GBD5-DHV2/OC	-
PowerColor	Radeon RX 470 4GB Red Dragon	AXRX 470 4GBD5-3DH/OC, AXRX 470 4GBD5-3DHD/OC	8-pin
PowerColor	Radeon RX 470 4GB Red Dragon Single Fan	AXRX470 4GBD5-3DHDV2/OC	6-pin
PowerColor	Radeon RX 480 8GB Red Devil	AXRX 480 8GBD5-3DH/OC	8-pin
PowerColor	Radeon RX 480 8GB Red Dragon	AXRX 480 8GBD5-3DHD	8-pin
PowerColor	Radeon RX 480 4GB Red Dragon	AXRX 480 4GBD5-3DHD	8-pin
PowerColor	Radeon RX 480 4GB Red Dragon Single Fan	AXRX 480 4GBD5-3DHDV2	8-pin
PowerColor	Radeon RX 480 8GB	AXRX 480 8GBD5-M3DH	6-pin
PowerColor	Radeon RX 480 4GB	AXRX 480 4GBD5-M3DH	6-pin
PowerColor	Radeon RX 550 2GB Red Dragon Single Fan	AXRX 550 2GBD5-DH/OC	-
PowerColor	Radeon RX 550 2GB Red Dragon Single Fan	AXRX 550 2GBD5-DHV2/OC	-
PowerColor	Radeon RX 560 2GB OC V3 Red Dragon Single Fan	AXRX 560 2GBD5-DHV3/OC	-
PowerColor	Radeon RX 560 4GB OC V3 Red Dragon Single Fan	AXRX 560 4GBD5-DHV3/OC	-
PowerColor	Radeon RX 570 4GB Red Devil	AXRX 570 4GBD5-3DH/OC	8-pin
PowerColor	Radeon RX 570 4GB Red Dragon	AXRX 570 4GBD5-3DHD/OC	8-pin
PowerColor	Radeon RX 580 8GB Red Devil Golden Sample	AXRX 580 8GBD5-3DHG/OC	8-pin + 6-pin	-	-
PowerColor	Radeon RX 580 8GB Red Devil	AXRX 580 8GBD5-3DH/OC	8-pin + 6-pin	-
PowerColor	Radeon RX 580 8GB Red Dragon	AXRX 580 8GBD5-3DHD/OC, AXRX 580 8GBD5-3DHDV2/OC	8-pin
PowerColor	Radeon RX 580 4GB Red Dragon	AXRX 580 4GBD5-3DHD/OC	8-pin

Sapphire R9 Nano	Radeon R9 NANO 4G HBM	21249-00	8-pin
Sapphire Tri-X R9 FURY	Radeon R9 FURY 4G HBM	21247-00, 21247-01	8-pin + 8-pin	-	-
Sapphire NITRO R9 FURY	Radeon R9 FURY 4G HBM with Back Plate	21247-03, 21247-04	8-pin + 8-pin	-	-
Sapphire R9 FURY X	Radeon R9 FURY X 4G D5	21246-00	8-pin + 8-pin	-	-
Sapphire	Radeon RX 460 2GD5 OC	11257-00	-
Sapphire	Radeon RX 460 2GD5 OC Single Fan	11257-10	-
Sapphire	Radeon RX 460 4GD5	11257-06	-
Sapphire	Radeon RX 460 4GD5 OC (single fan)	11257-11	-
Sapphire NITRO	Radeon RX 460 4GD5 OC	11257-02, 11257-07	6-pin
Sapphire NITRO	Radeon RX 460 8GD5 OC	11257-17, 11257-26	8-pin
Sapphire	Radeon RX 470 4GD5 OC	11256-00	6-pin
Sapphire NITRO	Radeon RX 470 4GD5 OC	11256-10, 11256-20	8-pin
Sapphire NITRO	Radeon RX 470 8GD5 OC	11256-17, 11256-26	8-pin
Sapphire NITRO+	Radeon RX 470 4GD5 OC	11256-01, 11256-06	8-pin
Sapphire NITRO+	Radeon RX 470 8GD5 OC	11256-02, 11256-07, 11256-14	8-pin
Sapphire	Radeon RX 480 4GD5	21260-01	6-pin
Sapphire	Radeon RX 480 8GD5	21260-00	6-pin
Sapphire NITRO	Radeon RX 480 4GD5 OC	11260-13, 11260-16	8-pin
Sapphire NITRO+	Radeon RX 480 4GD5 OC	11260-02, 11260-09	8-pin
Sapphire NITRO+	Radeon RX 480 8GD5 OC	11260-01, 11260-07, 11260-10	8-pin
Sapphire NITRO	Radeon RX 480 8GD5 OC	11260-20, 11260-23	8-pin
Sapphire PULSE	Radeon RX 550 2GD5	11268-03	-
Sapphire PULSE	Radeon RX 550 4GD5	11268-01	-
Sapphire PULSE	Radeon RX 560 2GD5	11267-13	-
Sapphire PULSE	Radeon RX 560 2GD5	11267-02	6-pin
Sapphire PULSE	Radeon RX 560 4GD5 (45W)	11267-01	-
Sapphire PULSE	Radeon RX 560 4GD5	11267-00	6-pin
Sapphire PULSE ITX	Radeon RX 570 4GD5	11266-06	6-pin
Sapphire PULSE	Radeon RX 570 4GD5	11266-04, 11266-05	8-pin
Sapphire NITRO+	Radeon RX 570 4GD5	11266-14, 11266-15	8-pin + 6-pin	-
Sapphire NITRO+	Radeon RX 570 8GD5	11266-01, 11266-09	8-pin + 6-pin	-
Sapphire PULSE	Radeon RX 580 4GD5	11265-09, 11265-10	8-pin
Sapphire PULSE	Radeon RX 580 8GD5	11265-05, 11265-06	8-pin
Sapphire NITRO+	Radeon RX 580 4GD5	11265-07, 11265-08	8-pin + 6-pin	-
Sapphire NITRO+	Radeon RX 580 8GD5	11265-01, 11265-03	8-pin + 6-pin	-
Sapphire NITRO+	Radeon RX 580 8GD5 Limited Edition	11265-00	8-pin + 6-pin	-
Sapphire NITRO+	Radeon RX 580 8GD5 Special Edition	11265-21	8-pin + 6-pin	-

XFX	Radeon RX 460 2GB Single Fan	RX-460P2SFG5	6-pin
XFX	Radeon RX 460 2GB Double Dissipation	RX-460P2DFG5	6-pin
XFX	Radeon RX 460 2GB Heatsink (Passive cooled)	RX-460P2HFG5	-
XFX	Radeon RX 460 2GB Slim Single Slot Design	RX-460P2TFG5	-
XFX	Radeon RX 460 4GB Single Fan	RX-460P4SFG5	6-pin
XFX	Radeon RX 460 4GB Double Dissipation	RX-460P4DFG5	6-pin
XFX	Radeon RX 460 4GB Double Dissipation Best Buy	RX-460P4DDGR	6-pin
XFX	Radeon RX 460 4GB Heatsink (Passive cooled)	RX-460P4HFG5	-
XFX	Radeon RX 460 4GB Slim Single Slot Design	RX-460P4TFG5	-
XFX	Radeon RX 470 RS 4GB Hard Swap Black Edition	RX-470P437BM	6-pin
XFX	Radeon RX 470 RS 4GB Hard Swap Triple X	RX-470P4LFB6	6-pin
XFX	Radeon RX 470 RS 4GB Hard Swap Triple X	RX-470P436BM	6-pin
XFX	Radeon RX 470 RS 4GB Hard Swap Black Edition	RX-470P4LDB6	6-pin
XFX	Radeon RX 470 RS 4GB Single Fan Triple X	RX-470P4SFD5	6-pin
XFX	Radeon RX 470 RS 4GB Hard Swap Triple X Best Buy	RX-470P4LDLR	6-pin
XFX	Radeon RX 480 Core Edition	RX-480M4BFA6	6-pin
XFX	Radeon RX 480 RS 4GB Hard Swap Best Buy	RX-480P4JFLR	8-pin
XFX	Radeon RX 480 RS 4GB Hard Swap	RX-480P4LFB6	8-pin
XFX	Radeon RX 480 RS Core 4GB Hard Swap	RX-480P4JFC6	8-pin
XFX	Radeon RX 480 Tuned by XFX Custom Backplate	RX-480M8BFA6	6-pin
XFX	Radeon RX 480 Tuned by XFX Custom Backplate Black Editon	RX-480M8BBA6	6-pin
XFX	Radeon RX 480 GTR 8GB Hard Swap	RX-480P8DFA6	8-pin
XFX	Radeon RX 480 GTR 8GB Hard Swap Black Edition	RX-480P8DBA6	8-pin
XFX	Radeon RX 480 RS 8GB Hard Swap XXX Edition	RX-480P836BM	8-pin
XFX	Radeon RX 480 RS 8GB Hard Swap Best Buy	RX-480P8LFLR	8-pin
XFX	Radeon RX 480 RS 8GB Hard Swap	RX-480P8LFB6	8-pin
XFX	Radeon RX 480 RS 8GB Hard Swap Crimson Edition	RX-480P8LFR6	8-pin
XFX	Radeon RX 550 2GB Slim Single Slot Design	RX-550P2TFG5	-
XFX	Radeon RX 550 2GB Core Edition	RX-550P2SFG5	-
XFX	Radeon RX 550 2GB Low Profile	RX-550P2LFG5	-
XFX	Radeon RX 550 4GB Slim Single Slot Desing	RX-550P4TFG5	-
XFX	Radeon RX 550 4GB Core Edition	RX-550P4SFG5	-
XFX	Radeon RX 550 4GB Low Profile	RX-550P4LFG5	-
XFX	Radeon RX 550 4GB Low Profile	RX-550P4LFGR	-
XFX	Radeon RX 560 4GB Single Fan	RX-560P4SFG5	6-pin
XFX	Radeon RX 560 4GB Single Fan	RX-560P4SFGR	6-pin
XFX	Radeon RX 570 RS 4GB Black Edition	RX-570P4DBD6	8-pin
XFX	Radeon RX 570 RS 4GB XXX Edition	RX-570P4DFD6, RX-570P427D6, RX-570P4DFDR	8-pin
XFX	Radeon RX 580 Core Edition 4GB	RX-580M4BFA6	8-pin
XFX	Radeon RX 580 Black Edition 8GB Crimson Best Buy	RX-580P8DBRR	8-pin + 6-pin	-
XFX	Radeon RX 580 XXX Edition 8GB Crimson Best Buy	RX-580P8DFWR	8-pin + 6-pin	-
XFX	Radeon RX 580 GTR-S Black Edition 8GB Crimson	RX-580A8DBR6	8-pin + 6-pin	-
XFX	Radeon RX 580 GTR-S Black Edition 8GB White	RX-580A8DBW6	8-pin + 6-pin	-
XFX	Radeon RX 580 GTS XXX Edition 4GB	RX-580P4DFD6, RX-580P427D6	8-pin
XFX	Radeon RX 580 GTS XXX Edition 8GB	RX-580P826D6, RX-580P8DFD6	8-pin
XFX	Radeon RX 580 GTS Black Edition 8GB	RX-580P8DBD6	8-pin
XFX	Radeon RX 580 GTS Black Core Edition 8GB	RX-580P828D6	8-pin


Asus	GeForce GT 1030 2GB	GT1030-2G-CSM	-
Asus	GeForce GT 1030 2GB Phoenix Fan OC Edition	PH-GT1030-O2G	-
Asus	GeForce GTX 1050 2GB Phoenix Fan Edition	PH-GTX1050-2G	-
Asus	GeForce GTX 1050 2GB Dual Fan Edition	DUAL-GTX1050-O2G	-
Asus	GeForce GTX 1050Ti 4GB ROG STRIX OC Edition	ROG STRIX-GTX1050Ti-O4G-GAMING	6-pin
Asus	GeForce GTX 1050Ti 4GB Dual Fan Edition	DUAL-GTX1050TI-4G	-
Asus	GeForce GTX 1050Ti 4GB Phoenix Fan Edition	PH-GTX1050TI-4G	-
Asus	GeForce GTX 1050Ti 4GB ROG STRIX	ROG STRIX-GTX1050Ti-4G-GAMING	6-pin
Asus	GeForce GTX 1050Ti 4GB Dual Fan Edition White	DUAL-GTX1050TI-O4G	-
Asus	GeForce GTX 1060 ROG Strix	ROG STRIX-GTX1060-O6G-GAMING	8-pin
Asus	GeForce GTX 1060 Dual Series	DUAL-GTX1060-O6G	6-pin
Asus	GeForce GTX 1060 Turbo	TURBO-GTX1060-6G	6-pin
Asus	GeForce GTX 1060 OC Edition 6GB	GTX1060-O6G-9GBPS	6-pin
Asus	GeForce GTX 1060 Dual Series	DUAL-GTX1060-O3G	6-pin
Asus	GeForce GTX 1060 ROG Strix	ROG STRIX-GTX1060-6G-GAMING	8-pin
Asus	GeForce GTX 1060 Phoenix Fan Edition 3GB	PH-GTX1060-3G	6-pin
Asus	GeForce GTX 1070 ROG Strix	ROG STRIX-GTX1070-O8G-GAMING	8-pin
Asus	GeForce GTX 1070 Dual Series	DUAL-GTX1070-O8G	8-pin
Asus	GeForce GTX 1070 ROG Strix	ROG STRIX-GTX1070-8G-GAMING	8-pin
Asus	GeForce GTX 1070 Turbo	TURBO-GTX1070-8G	8-pin
Asus	GeForce GTX 1070 Dual Series	DUAL-GTX1070-8G	8-pin
Asus	GeForce GTX 1080 ROG Strix OC Edition 8GB	ROG STRIX-GTX1080-O8G-11GBPS	8-pin + 6-pin	-
Asus	GeForce GTX 1080 ROG Strix	ROG STRIX-GTX1080-A8G-GAMING	8-pin + 6-pin	-
Asus	GeForce GTX 1080 ROG Strix	ROG STRIX-GTX1080-8G-GAMING	8-pin + 6-pin	-
Asus	GeForce GTX 1080 Turbo	TURBO-GTX1080-8G	8-pin
Asus	GeForce GTX 1080 ROG Strix 11Gbps Advanced Edition	ROG STRIX-GTX1080-A8G-11GBPS	8-pin + 6-pin	-
Asus	GeForce GTX 1080TI ROG Strix OC Edition	ROG STRIX-GTX1080TI-O11G-GAMING	8-pin + 8-pin	-	-
Asus	GeForce GTX 1080TI ROG Poseidon Platinum Edition	ROG POSEIDON-GTX1080TI-P11G-GAMING	8-pin + 8-pin	-	-
Asus	GeForce GTX 1080TI Founders Edition	GTX1080TI-FE	8-pin + 6-pin	-
Asus	GeForce GTX 1080TI Turbo Edition	TURBO-GTX1080TI-11G	8-pin + 6-pin	-
Asus	GeForce GTX 1080TI ROG Strix	ROG STRIX-GTX1080TI-11G-GAMING	8-pin + 8-pin	-	-

EVGA	Geforce GT 1030	02G-P4-6333-KR	-
EVGA	GeForce GTX 1050 2GB ACX 2.0	02G-P4-6150-KR	-
EVGA	GeForce GTX 1050 2GB SC ACX 2.0	02G-P4-6152-KR	-
EVGA	GeForce GTX 1050 2GB SSC ACX 3.0	02G-P4-6154-KR	-
EVGA	GeForce GTX 1050 2GB ACX 3.0	02G-P4-6157-KR	6-pin
EVGA	GeForce GTX 1050 Ti 4GB ACX 2.0	04G-P4-6251-KR	-
EVGA	GeForce GTX 1050 Ti 4GB SSC ACX 3.0	04G-P4-6255-KR	-
EVGA	GeForce GTX 1050 Ti 4GB FTW ACX 3.0	04G-P4-6258-KR	6-pin
EVGA	GeForce GTX 1060 3GB SCC2	03G-P4-6567-KR	8-pin
EVGA	GeForce GTX 1060 3GB FTW+ ACX 3.0	03G-P4-6367-KR	8-pin
EVGA	GeForce GTX 1060 3GB FTW+ DT ACX 3.0	03G-P4-6365-KR	8-pin
EVGA	GeForce GTX 1060 3GB FTW ACX 3.0	03G-P4-6168-KR	8-pin
EVGA	GeForce GTX 1060 3GB SCC ACX 3.0	03G-P4-6167-KR	8-pin
EVGA	GeForce GTX 1060 3GB SC ACX 2.0	03G-P4-6162-KR	6-pin
EVGA	GeForce GTX 1060 3GB ACX 2.0	03G-P4-6160-KR	6-pin
EVGA	GeForce GTX 1060 3GB	03G-P4-5160-KR	6-pin
EVGA	GeForce GTX 1060 6GB ACX 2.0	06G-P4-6161-KR	6-pin
EVGA	GeForce GTX 1060 6GB	06G-P4-5161-KR	6-pin
EVGA	GeForce GTX 1060 6GB SC ACX 2.0	06G-P4-6163-KR	6-pin
EVGA	GeForce GTX 1060 6GB SSC DT ACX 3.0	06G-P4-6265-KR	8-pin
EVGA	GeForce GTX 1060 6GB ACX 3.0	06G-P4-6262-KR	8-pin
EVGA	GeForce GTX 1060 6GB FTW+ DT ACX 3.0	06G-P4-6266-KR	8-pin
EVGA	GeForce GTX 1060 6GB SSC ACX 3.0	06G-P4-6267-KR	8-pin
EVGA	GeForce GTX 1060 6GB FTW ACX 3.0	06G-P4-6268-KR	8-pin
EVGA	GeForce GTX 1060 6GB FTW+ DT ACX 3.0	06G-P4-6366-KR	8-pin
EVGA	GeForce GTX 1060 6GB FTW+ ACX 3.0	06G-P4-6368-KR	8-pin
EVGA	GeForce GTX 1060 6GB SSC2	06G-P4-6667-KR	8-pin
EVGA	GeForce GTX 1060 6GB FTW2	06G-P4-6768-KR	8-pin
EVGA	GeForce GTX 1070	08G-P4-5170-KR	8-pin
EVGA	GeForce GTX 1070 SC ACX 3.0	08G-P4-5173-KR	8-pin
EVGA	GeForce GTX 1070 Founders Edition	08G-P4-6170-KR	8-pin
EVGA	GeForce GTX 1070 ACX 3.0	08G-P4-6171-KR	8-pin
EVGA	GeForce GTX 1070 ACX 3.0 Black Edition	08G-P4-5171-KR	8-pin
EVGA	GeForce GTX 1070 FTW DT ACX 3.0	08G-P4-6274-KR	8-pin + 8-pin	-	-
EVGA	GeForce GTX 1070 SC ACX 3.0	08G-P4-6173-KR	8-pin
EVGA	GeForce GTX 1070 iCX - 9	08G-P4-6571-KR	8-pin
EVGA	GeForce GTX 1070 SC2 iCX - 9	08G-P4-6573-KR	8-pin
EVGA	GeForce GTX 1070 FTW2 DT iCX - 9	08G-P4-6674-KR	8-pin + 8-pin	-	-
EVGA	GeForce GTX 1070 Hybrid	08G-P4-6178-KR	8-pin
EVGA	GeForce GTX 1070 FTW ACX 3.0	08G-P4-6276-KR	8-pin + 8-pin	-	-
EVGA	GeForce GTX 1070 FTW2 iCX - 9	08G-P4-6676-KR	8-pin + 8-pin	-	-
EVGA	GeForce GTX 1070 FTW Hybrid	08G-P4-6278-KR	8-pin + 8-pin	-	-
EVGA	Geforce GTX 1080	08G-P4-5180-KR	8-pin
EVGA	Geforce GTX 1080 ACX 3.0	08G-P4-6181-KR	8-pin
EVGA	Geforce GTX 1080 FTW DT ACX 3.0	08G-P4-6284-KR	8-pin + 8-pin	-	-
EVGA	Geforce GTX 1080 SC ACX 3.0	08G-P4-6183-KR	8-pin
EVGA	Geforce GTX 1080 iCX - 9	08G-P4-6581-KR	8-pin
EVGA	Geforce GTX 1080 Founders Edition	08G-P4-6180-KR	8-pin
EVGA	Geforce GTX 1080 FTW ACX 3.0	08G-P4-6286-KR	8-pin + 8-pin	-	-
EVGA	Geforce GTX 1080 FTW2 DT iCX - 9	08G-P4-6684-KR	8-pin + 8-pin	-	-
EVGA	Geforce GTX 1080 SC2 iCX - 9	08G-P4-6583-KR	8-pin
EVGA	Geforce GTX 1080 Hybrid	08G-P4-6188-KR	8-pin
EVGA	Geforce GTX 1080 FTW2 iCX - 9	08G-P4-6686-KR	8-pin + 8-pin	-	-
EVGA	Geforce GTX 1080 FTW	08G-P4-6288-KR	8-pin + 8-pin	-	-
EVGA	Geforce GTX 1080 Classified ACX 3.0	08G-P4-6386-KR	8-pin + 8-pin	-	-
EVGA	Geforce GTX 1080 FTW Hydro Copper	08G-P4-6299-KR	8-pin + 8-pin	-	-
EVGA	GeForce GTX 1080 Ti	11G-P4-5390-KR	8-pin + 6-pin	-
EVGA	GeForce GTX 1080 Ti Founders Edition	11G-P4-6390-KR	8-pin + 6-pin	-
EVGA	GeForce GTX 1080 Ti SC Black Edition iCX	11G-P4-6393-KR	8-pin + 6-pin	-
EVGA	GeForce GTX 1080 Ti CX - 9	11G-P4-6591-KR	8-pin + 6-pin	-
EVGA	GeForce GTX 1080 Ti SC2 iCX - 9	11G-P4-6593-KR	8-pin + 6-pin	-
EVGA	GeForce GTX 1080 Ti FTW3 DT iCX - 9	11G-P4-6694-KR	8-pin + 8-pin	-	-
EVGA	GeForce GTX 1080 Ti SC2 ELITE White iCX - 9	11G-P4-6693-KR	8-pin + 6-pin	-
EVGA	GeForce GTX 1080 Ti SC2 ELITE iCX - 9	11G-P4-6693-KR	8-pin + 6-pin	-
EVGA	GeForce GTX 1080 Ti FTW3 iCX - 9	11G-P4-6696-KR	8-pin + 8-pin	-	-
EVGA	GeForce GTX 1080 Ti FTW3 ELITE iCX - 9	11G-P4-6796-KR	8-pin + 8-pin	-	-
EVGA	GeForce GTX 1080 Ti FTW3 ELITE Green iCX - 9	11G-P4-6796-K4	8-pin + 8-pin	-	-
EVGA	GeForce GTX 1080 Ti SC2 Hybrid iCX - 9	11G-P4-6598-KR	8-pin + 6-pin	-
EVGA	GeForce GTX 1080 Ti SC Hydro Copper	11G-P4-6399-KR	8-pin + 6-pin	-
EVGA	GeForce GTX 1080 Ti SC2 Hydro Copper iCX - 9	11G-P4-6599-KR	8-pin + 6-pin	-
EVGA	GeForce GTX 1080 Ti gFTW3 Hydro Copper iCX - 9	11G-P4-6699-KR	8-pin + 8-pin	-	-

Gigabyte	GeForce GT 1030 OC 2G	GV-N1030OC-2GI	-
Gigabyte	GeForce GT 1030 Silent Low Profile 2G	GV-N1030SL-2GL	-
Gigabyte	GeForce GT 1030 Low Profile 2G	GV-N1030D5-2GL	-
Gigabyte	GeForce GTX 1050 Low Profile 2G	GV-N1050-2GL	-
Gigabyte	GeForce GTX 1050 OC Low Profile 2G	GV-N1050OC-2GL	-
Gigabyte	GeForce GTX 1050 Windforce 2G	GV-N1050WF2-2GD	6-pin
Gigabyte	GeForce GTX 1050 D5 2G (rev1.0/rev1.1)	GV-N1050D5-2GD	-
Gigabyte	GeForce GTX 1050 OC 2G (rev1.0/rev1.1)	GV-N1050OC-2GD	-
Gigabyte	GeForce GTX 1050 Windforce OC 2G	GV-N1050WF2OC-2GD	6-pin
Gigabyte	GeForce GTX 1050 G1 Gaming 2G	GV-N1050G1 GAMING-2GD	6-pin
Gigabyte	GeForce GTX 1050 Ti OC Low Profile 4G	GV-N105TOC-4GL	-
Gigabyte	GeForce GTX 1050 Ti Windforce 4G	GV-N105TWF2-4GD	6-pin
Gigabyte	GeForce GTX 1050 Ti G1 Gaming 4G	GV-N105TG1 GAMING-4GD	6-pin
Gigabyte	GeForce GTX 1050 Ti 4GD5	GV-N105TD5-4GD	-
Gigabyte	GeForce GTX 1050 Ti Windforce OC 4G	GV-N105TWF2OC-4GD	6-pin
Gigabyte	GeForce GTX 1050 Ti OC 4G (rev1.0/rev1.1)	GV-N105TOC-4GD	-
Gigabyte	GeForce GTX 1050 Ti D5 4G (rev1.0/rev1.1)	GV-N105TD5-4GD	-
Gigabyte	GeForce GTX 1060 Aorus Xtreme Edition 6G	GV-N1060AORUS X-6GD	8-pin
Gigabyte	GeForce GTX 1060 Aorus 6G	GV-N1060AORUS-6GD	8-pin
Gigabyte	GeForce GTX 1060 Aorus Xtreme Edition 6G 9Gbps	GV-N1060AORUS X-6GD	8-pin
Gigabyte	GeForce GTX 1060 Aorus 6G 9Gbps	GV-N1060AORUS-6GD	8-pin
Gigabyte	GeForce GTX 1060 D5 3G	GV-N1060D5-3GD	8-pin
Gigabyte	GeForce GTX 1060 D5 6G	GV-N1060D5-6GD	8-pin
Gigabyte	GeForce GTX 1060 Windforce 6G	GV-N1060WF2-6GD	6-pin
Gigabyte	GeForce GTX 1060 Windforce 3G	GV-N1060WF2-3GD	6-pin
Gigabyte	GeForce GTX 1060 G1 Gaming 3G	GV-N1060G1 GAMING-3GD	8-pin
Gigabyte	GeForce GTX 1060 3GB OC	GV-N1060IX-3GD	6-pin
Gigabyte	GeForce GTX 1060 6GB OC	GV-N1060IX-6GD	6-pin
Gigabyte	GeForce GTX 1060 3GB OC	GV-N1060IXOC-3GD	6-pin
Gigabyte	GeForce GTX 1060 6GB OC	GV-N1060IXOC-6GD	6-pin
Gigabyte	GeForce GTX 1070 Xtreme Gaming 8GB	GV-N1070XTREME-8GD	8-pin + 6-pin	-
Gigabyte	GeForce GTX 1070 8GB	GV-N1070AORUS-8GD	8-pin + 6-pin	-
Gigabyte	GeForce GTX 1070 8GB	GV-N1070IX-8GD	8-pin
Gigabyte	GeForce GTX 1070 8GB OC	GV-N1070IXOC-8GD	8-pin
Gigabyte	GeForce GTX 1070 Windforce 8GB	GV-N1070WF2-8GD	8-pin
Gigabyte	GeForce GTX 1070 G1 Rock 8GB	GV-N1070G1 ROCK-8GD	8-pin
Gigabyte	GeForce GTX 1070 Founders Edition 8GB	GV-N1070D5-8GD-B	8-pin
Gigabyte	GeForce GTX 1070 Windforce OC 8GB	GV-N1070WF2OC-8GD	8-pin
Gigabyte	GeForce GTX 1070 Xtreme Gaming 8GB	GV-N1070XTREME-8GD	8-pin + 6-pin	-
Gigabyte	GeForce GTX 1070 G1 Gaming 8GB	GV-N1070G1 GAMING-8GD	8-pin
Gigabyte	GeForce GTX 1080 Xtreme Edition 8G 11Gbps	GV-N1080AORUS X11-8GD	8-pin + 8-pin	-	-
Gigabyte	GeForce GTX 1080 8G 11Gbps	GV-N1080AORUS-8GD	8-pin + 8-pin	-	-
Gigabyte	GeForce GTX 1080 Xtreme Edition 8G	GV-N1080AORUS X-8GD	8-pin + 8-pin	-	-
Gigabyte	GeForce GTX 1080 D5X 8G	GV-N1080D5X-8GD	8-pin
Gigabyte	GeForce GTX 1080 Xtreme Gaming Waterforce	GV-N1080XTREME WB-8GD	8-pin + 8-pin	-	-
Gigabyte	GeForce GTX 1080 Turbo OC 8G	GV-N1080TTOC-8GD	8-pin
Gigabyte	GeForce GTX 1080 Xtreme Gaming Waterforce 8G	GV-N1080XTREME W-8GD	8-pin + 8-pin	-	-
Gigabyte	GeForce GTX 1080 Xtreme Gaming 8G	GV-N1080XTREME-8GD	8-pin + 8-pin	-	-
Gigabyte	GeForce GTX 1080 Xtreme Gaming Premium Pack 8G	GV-N1080XTREME-8GD-PP	8-pin + 8-pin	-	-
Gigabyte	GeForce GTX 1080 G1 Rock 8G	GV-N1080G1 ROCK-8GD	8-pin
Gigabyte	GeForce GTX 1080 Windforce OC 8G	GV-N1080WF3OC-8GD	8-pin
Gigabyte	GeForce GTX 1080 Xtreme Gaming Premium Pack 8G	GV-N1080XTREME-8GD-PP	8-pin + 8-pin	-	-
Gigabyte	GeForce GTX 1080 Xtreme Gaming Waterforce 8G	GV-N1080XTREME W-8GD	8-pin + 8-pin	-	-
Gigabyte	GeForce GTX 1080 Xtreme Gaming 8G	GV-N1080XTREME-8GD	8-pin + 8-pin	-	-
Gigabyte	GeForce GTX 1080 Founders Edition 8G	GV-N1080D5X-8GD-B	8-pin
Gigabyte	GeForce GTX 1080 Ti Waterforce Xtreme Edition 11G	GV-N108TAORUSX W-11GD	8-pin + 8-pin	-	-
Gigabyte	GeForce GTX 1080 Ti Waterforce WB Xtreme Edition 11G	-	8-pin + 8-pin	-	-
Gigabyte	GeForce GTX 1080 Ti Turbo 11G	GV-N108TTURBO-11GD	8-pin + 6-pin	-
Gigabyte	GeForce GTX 1080 Ti Gaming 11G	GV-N108TGAMING-11GD	8-pin + 6-pin	-
Gigabyte	GeForce GTX 1080 Ti Gaming OC 11G	GV-N108TGAMING OC-11G	8-pin + 6-pin	-
Gigabyte	GeForce GTX 1080 Ti Xtreme Edition 11G	GV-N108TAORUS X-11GD	8-pin + 8-pin	-	-
Gigabyte	GeForce GTX 1080 Ti 11G	GV-N108TAORUS-11GD	8-pin + 8-pin	-	-
Gigabyte	GeForce GTX 1080 Ti Founders Edition 11G	GV-N108TD5X-B	8-pin + 6-pin	-

MSI	GeForce GTX 1050 2G		-
MSI	GeForce GTX 1050 2G OC		-
MSI	GeForce GTX 1050 2GT OC		-
MSI	GeForce GTX 1050 AERO ITX 2G OC		-
MSI	Geforce GTX 1050 Gaming 2G		6-pin
MSI	GeForce GTX 1050 Gaming X 2G		6-pin
MSI	GeForce GTX 1050 Ti 4GB		-
MSI	GeForce GTX 1050 Ti 4GB OC		-
MSI	GeForce GTX 1050 TI 4GT OC		-
MSI AERO ITX	GeForce GTX 1050 Ti 4GB OC		-
MSI	GeForce GTX 1050 TI Gaming 4G		6-pin
MSI	GeForce GTX 1050 TI Gaming X 4G		6-pin
MSI	GeForce GTX 1060 Gaming X+ 6G		8-pin
MSI	GeForce GTX 1060 Gaming X 3G		8-pin
MSI	GeForce GTX 1060 Gaming X 6G		8-pin
MSI	GeForce GTX 1060 Gaming+ 6G		8-pin
MSI	GeForce GTX 1060 CAMO SQUAD 6G		8-pin
MSI	GeForce GTX 1060 Gaming 3G		8-pin
MSI	GeForce GTX 1060 Gaming 6G		8-pin
MSI	GeForce GTX 1060 ARMOR 6G OCV1		8-pin
MSI	GeForce GTX 1060 ARMOR 3G OCV1		8-pin
MSI	GeForce GTX 1060 ARMOR 6G OC		8-pin
MSI	GeForce GTX 1060 ARMOR 3G V1		8-pin
MSI	GeForce GTX 1060 ARMOR 6G		8-pin
MSI	GeForce GTX 1060 6GT OCV1		6-pin
MSI	GeForce GTX 1060 6G OCV1		6-pin
MSI	GeForce GTX 1060 3G OCV1		6-pin
MSI	GeForce GTX 1060 3GT OC		6-pin
MSI	GeForce GTX 1060 6GT OC		6-pin
MSI AERO ITX	GeForce GTX 1060 3GB OC		6-pin
MSI AERO ITX	GeForce GTX 1060 6GB OC		6-pin
MSI	GeForce GTX 1060 3GB OCV1		6-pin
MSI	GeForce GTX 1060 6GB OCV1		6-pin
MSI	GeForce GTX 1070 Founders Edition		8-pin
MSI	GeForce GTX 1070 AERO 8G		8-pin
MSI	GeForce GTX 1070 AERO 8G OC		8-pin
MSI	GeForce GTX 1070 SEA HAWK		8-pin
MSI	GeForce GTX 1070 SEA HAWK		8-pin
MSI	GeForce GTX 1070 ARMOR 8G		8-pin
MSI	GeForce GTX 1070 ARMOR 8G OC		8-pin
MSI	GeForce GTX 1070 Gaming 8G		8-pin + 6-pin	-
MSI	GeForce GTX 1070 Gaming X 8G		8-pin + 6-pin	-
MSI	GeForce GTX 1070 Gaming Z 8G		8-pin + 6-pin	-
MSI	GeForce GTX 1070 QUICK SILVER 8G OC		8-pin + 6-pin	-
MSI	GeForce GTX 1070 SEA HAWK EK X		8-pin + 6-pin	-	-	-
MSI AERO ITX	GeForce GTX 1070 8GB OC		8-pin
MSI	GeForce GTX 1080 Founders Edition		8-pin
MSI	GeForce GTX 1080 AERO 8G		8-pin
MSI	GeForce GTX 1080 AERO 8G OC		8-pin
MSI	GeForce GTX 1080 SEA HAWK X		8-pin
MSI	GeForce GTX 1080 SEA HAWK EK X		8-pin + 6-pin	-	-	-
MSI	GeForce GTX 1080 30TH ANNIVERSARY		8-pin + 6-pin	-	-	-
MSI	GeForce GTX 1080 ARMOR 8G		8-pin + 6-pin	-
MSI	GeForce GTX 1080 ARMOR 8G OC		8-pin + 6-pin	-
MSI	GeForce GTX 1080 Gaming X 8G		8-pin + 6-pin	-
MSI	GeForce GTX 1080 Gaming X+ 8G		8-pin + 6-pin	-
MSI	GeForce GTX 1080 Duke 8G OC		8-pin + 6-pin	-
MSI	GeForce GTX 1080 Gaming 8G		8-pin + 6-pin	-
MSI	GeForce GTX 1080 Gaming+ 8G		8-pin + 6-pin	-
MSI	GeForce GTX 1080 Gaming Z 8G		8-pin + 6-pin	-
MSI	GeForce GTX 1080 Ti Founders Edition		8-pin + 6-pin	-
MSI	GeForce GTX 1080 Ti AERO 11G		8-pin + 6-pin	-
MSI	GeForce GTX 1080 Ti AERO 11G OC		8-pin + 6-pin	-
MSI	GeForce GTX 1080 Ti SEA HAWK EK X		8-pin + 8-pin	-	-	-
MSI	GeForce GTX 1080 Ti ARMOR 11G		8-pin + 8-pin	-	-
MSI	GeForce GTX 1080 Ti ARMOR 11G OC		8-pin + 8-pin	-	-
MSI	GeForce GTX 1080 Ti Gaming X 11G		8-pin + 8-pin	-	-
MSI	GeForce GTX 1080 Ti Gaming 11G		8-pin + 8-pin	-	-
MSI	GeForce GTX 1080 Ti DUKE 11G		8-pin + 8-pin	-	-	-
MSI	GeForce GTX 1080 Ti DUKE 11G OC		8-pin + 8-pin	-	-	-
MSI	GeForce GTX 1080 Ti LIGHTNING Z		8-pin + 8-pin + 8-pin	-	-	-

NVIDIA	GeForce GTX 1060		6-pin
NVIDIA	GeForce GTX 1070		8-pin
NVIDIA	GeForce GTX 1080		8-pin
NVIDIA	GeForce 1080 Ti		8-pin + 6-pin	-
NVIDIA	TITAN Xp (Pascal)		8-pin + 6-pin	-
NVIDIA	TITAN X (Maxwell)		8-pin + 6-pin	-

ZOTAC	GeForce GT 1030 2GB	ZT-P10300A-10L	-
ZOTAC	GeForce GTX 1050 Mini 2GB	ZT-P10500A-10L	-
ZOTAC	GeForce GTX 1050 Low Profile	ZT-P10500E-10L	-
ZOTAC	GeForce GTX 1050 OC	ZT-P10500C-10L	-
ZOTAC	GeForce GTX 1050 Ti Mini 4GB	ZT-P10510A-10L	-
ZOTAC	GeForce GTX 1050 Ti OC Edition	ZT-P10510B-10L	-
ZOTAC	GeForce GTX 1050 Ti Low Profile	ZT-P10510E-10L	-
ZOTAC	GeForce GTX 1060 Mini 3GB	ZT-P10600A-10L	6-pin
ZOTAC	GeForce GTX 1060 6GB AMP! Edition	ZT-P10600B-10M	6-pin
ZOTAC	GeForce GTX 1060 Mini 6GB	ZT-P10610A-10L	6-pin
ZOTAC	GeForce GTX 1060 6GB AMP! Edition+	ZT-P10600G-10M	6-pin
ZOTAC	GeForce GTX 1060 3GB AMP! Edition	ZT-P10610E-10M	6-pin
ZOTAC	GeForce GTX 1070 8GB AMP Edition	ZT-P10700C-10P	8-pin + 8-pin	-	-
ZOTAC	GeForce GTX 1070 8GB AMP Extreme	ZT-P10700B-10P	8-pin + 8-pin	-	-	-
ZOTAC	GeForce GTX 1070 8GB Mini 8GB	ZT-P10700G-10M	8-pin
ZOTAC	GeForce GTX 1070 8GB AMP Core Edition	ZT-P10700N-10P	8-pin
ZOTAC	GeForce GTX 1070 8GB	ZT-P10700I-10P	8-pin
ZOTAC	GeForce GTX 1070 8GB Founders Edition	ZT-P10700A-10P	8-pin
ZOTAC	GeForce GTX 1080 AMP Extreme	ZT-P10800B-10P	8-pin + 8-pin	-	-	-
ZOTAC	GeForce GTX 1080 AMP Edition	ZT-P10800C-10P	8-pin + 8-pin	-	-
ZOTAC	GeForce GTX 1080 Arctic Storm	ZT-P10800F-30P	8-pin + 8-pin	-	-
ZOTAC	GeForce GTX 1080 Mini	ZT-P10800H-10P	8-pin
ZOTAC	GeForce GTX 1080 AMP Extreme+	ZT-P10800I-10P	8-pin + 8-pin	-	-	-
ZOTAC	GeForce GTX 1080 Arctic Storm Anniversary Edition	ZT-P10800G-30P	8-pin + 8-pin	-	-	-
ZOTAC	GeForce GTX 1080 Founders Edition	ZT-P10800A-10P	8-pin
ZOTAC	GeForce GTX 1080 Ti Mini	ZT-P10810G-10P	8-pin + 8-pin	-	-
ZOTAC	GeForce GTX 1080 Ti AMP Edition	ZT-P10810D-10P	8-pin + 8-pin	-	-
ZOTAC	GeForce GTX 1080 Ti AMP Extreme	ZT-P10810C-10P	8-pin + 8-pin	-	-	-
ZOTAC	GeForce GTX 1080 Ti Arctic Storm	ZT-P10810E-30P	8-pin + 8-pin	-	-
ZOTAC	GeForce GTX 1080 Ti AMP Extreme Core Edition	ZT-P10810F-10P	8-pin + 8-pin	-	-	-
ZOTAC	GeForce GTX 1080 Ti Founders Edition	ZT-P10810A-10P	8-pin + 6-pin	-
ZOTAC	GeForce GTX 1080 Ti Blower	ZT-P10810B-10P	8-pin + 6-pin	-

External Graphics under Windows 10

Thunderbolt 3 PCs with 64-bit Windows 10
External Graphics using AMD and NVIDIA graphics cards are supported on some, but not all Windows computers.

Sonnet supports only computers running 64-bit Windows 10.
(32-bit Windows 10, Windows 7 and Linux are not supported.)

Sonnet has compiled a partial list of computers compatible with
external graphics cards. ASUS, Razer, and Intel report their compatible computers. Other listed computers may be Sonnet tested or user reported.
If a listed computer has an optional discrete NVIDIA GPU, then it may not currently be compatible with external NVIDIA GTX graphics, even if the model is listed as compatible (these models should be compatible with
AMD cards).

Compatibility List
Acer • Acer Aspire V15 Nitro • Acer Aspire V17 Nitro ASUS • ASUS ROG G501VW • ASUS ROG GL502VM • ASUS ROG G701VI • ASUS ROG GL702VM • ASUS ROG G752VL • ASUS ROG G752VM • ASUS ROG G752VS • ASUS ROG G752VT • ASUS ROG G752VY • ASUS ROG GX800VH • ASUS Transformer 3 Pro T303UA • ASUS Transformer 3 T305CA • ASUS UX501VW • ASUS ZenBook Pro UX490UA • ASUS ZenBook Pro UX501VW • ASUS ZenBook Pro UX550VD • ASUS ZenBook Pro UX550VE Dell • Dell Latitude 7280 • Dell XPS 13 9350 • Dell XPS 13 9360 • Dell XPS 13 9365 • Dell XPS 15 9550 • Dell XPS 15 9560		HP • HP EliteBook x360 G2 • HP Spectre 13-ac076nr • HP Spectre 13-w063nr • HP Spectre 13-v011dx • HP Spectre x360 • HP Spectre x360 (2nd Generation 2017) • HP ZBook 15 G2 without dGPU • HP ZBook 15 G3 without dGPU • HP ZBook 17 G3 without dGPU • HP ZBook Studio G3 • HP ZBook Studio G4 Intel • Intel NUC6i7KYK NUC • Intel NUC7i5BNH NUC • Intel NUC7i5BNK NUC • Intel NUC7i7BNH NUC Lenovo • Lenovo ThinkPad X1 Carbon (5th Gen 2017) Razer • Razer Blade • Razer Blade Pro • Razer Blade Stealth 12.5" • Razer Blade Stealth New 12.5" 4K • Razer Blade Stealth New (Late 2016) • Razer Blade Stealth New 12.5" 4K • Razer Blade Stealth New (Late 2016)

Installation Guide

1. Update Windows. Sonnet strongly recommends Windows 10, 64-Bit Version 1703 (OS Build 15063) or newer. This is also called the Creator’s Update. To check the version number, enter winver in the search bar and click enter.

2. Update your computer’s BIOS to the latest version. If you need help updating your BIOS, contact your computer manufacturer for further information.

3. Update your Thunderbolt Bus Driver to the latest version. You will need version 16.3.61.275 or newer. To check your driver version, go to Settings:Apps:Thunderbolt(TM) Software and you will see the version number. If it is not 16.3.61.275 or greater, then you need to update it. Check with your computer manufacturer for an update.

4. Install your NVIDIA or AMD card in the Breakaway Box and connect the Breakaway Box to your computer. You should get a message asking whether you want to connect this Thunderbolt peripheral. Select “Connect Always”. (You may get an additional message from Windows alerting you that External Graphics is not supported on this computer. Click OK and continue.)

5. Download and install the driver software. Go to the AMD or NVIDIA website to find, select, download and install the appropriate graphics driver for your system. If the installer fails to recognize a graphics card, then restart your computer. If the installer still does not recognize the card, then you either have a computer that has not been fully updated or else it is not compatible with external graphics.

6. There are a few additional things you need to know:

• You may not be able to hibernate your computer.

• You should not unplug external graphics while your computer is sleeping.

• When you disconnect external graphics, you may need to wait for Windows to recognize the disconnection
(two beeps) before you plug external graphics back in again.

• You may have to close applications running on external graphics before unplugging. Applications may have
no issues, may migrate to the internal graphics, may display an error message, or may crash.

7. Share your experience with the community! Please share whether you were successful and which computer and graphics card you were using by joining our Facebook eGFX Breakaway Box community:

https://www.facebook.com/SonnetTech/

Sonnet eGFX Breakaway Box Videos

<br> External GPU Use - How Much Power Does My eGPU Card Really Need? (3:57 mins)

View More Sonnet Videos

Sonnet eGFX Breakaway Reviews

	First Look at Apple's External GPU Developer's Kit for the macOS High Sierra beta The Sonnet kit is very quiet. Previous enclosures have demanded enormous tidal volumes of air, with one we tested able to push a box of tissue across the desk when under load. In the interest of performance, up to now we've borne that burden—but no longer… Read Full Review

	What Did We Learn? The eGFX Breakaway Box with the NVIDIA GeForce GTX 1080 Ti and connected to a Mac can speed up multi-GPU rendering in apps like Blender and Resolve (Noise Reduction render on the fly during playback); add CUDA support to your AMD equipped Macs thereby enabling 'CUDA only' apps like Octane Render to function and 'CUDA capable' apps like Blender to function faster than the "OpenCL only" AMD GPUs provided by Apple; provide a surge in the OpenCL render rate as well as combine with factory AMD GPUs to double the render rate; and triple and quadruple the frame rates of OpenGL apps like Valley and Tomb Raider. Sonnet Technologies came up with their own unique eGPU design. It includes all the best eGPU features such as quiet exhaust fan and the ability to send power to your 2016 MacBook Pro laptop. An nice touch was the PCIe Card Bracket Locking Plate. Unlike other eGPUs, the eGFX Breakaway Box does not require you to run the tb3-enabler in order to be detected as a supported Thunderbolt device. Read Full Review

	Sonnet Breakaway Box 350 Review – It's Cool to Be Quiet Priced at $299, the Sonnet Breakaway Box is an eGPU enclosure whose single purpose is to provide graphics performance boost through its sole Thunderbolt 3 port. For first impressions and additional photos, check out the unboxing post. The two components of this enclosure worth paying close attention to are the PSU and the main cooling fan. Both are built by Akasa, a supplier of thermal solutions to the electronics industry. The power supply is a 350W SFX unit. It’s custom-made to have one 24-pin main power cable, one 6-pin PCIe cable, and one 6-pin + 2 PCIe cable. The 120mm fan is rated for 6.9 -16.05 dB(A), with 10 dB being the noise of a pin dropping. Airflow is routed out of the enclosure space behind the GPU and in front of the PSU. This main cooling fan is inaudible to my ears when a powerful graphics card is in use. Another cool aspect of the thermal control system is the fan bracket. It’s very sturdy which helps prevent vibration. I’ve been using this Sonnet Breakaway + RX 580 eGPU setup for the past week. It has been a reliable, capable and quiet workhorse with the Late 2013 Mac Pro trashcan… Read Full Review
