Faster Performance

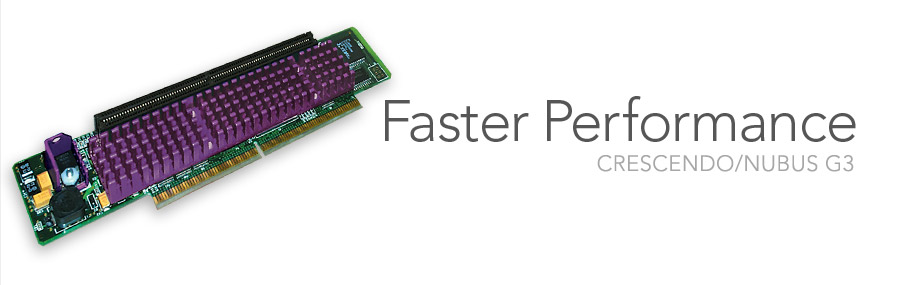

Your Power Mac® 6100, 7100, or 8100 series computer may be older, but its performance can be upgraded. Enjoy faster response time with a Sonnet Crescendo™/NuBus G3 processor upgrade card. Delivering up to a 16x overall speed improvement, you'll be able to run all your favorite applications faster and more efficiently under your favorite operating system up to Mac OS® 9.1.
Fortissimo Bus-Doubling Technology
Sonnet's Fortissimo™ technology enables us to exclusively deliver 400 and 500 MHz G3 upgrades for NuBus Power Macs. These upgrades operate at or near these respective speeds for every NuBus Power Mac, regardless of bus speed. The PowerPC G3 operating speeds are limited to 10x the computer's bus speed. For example, a Macintosh with an original bus speed of 33.3 MHz would previously have supported a G3 running only up to 333 MHz. With Fortissimo, Sonnet has designed a separate bus on the upgrade card that runs at twice the speed of the host motherboard. In this example, a G3 processors would operate based on a Fortissimo bus speed of 66.6 MHz, easily supporting a 500 MHz G3 at full speed.
Technical Notes:

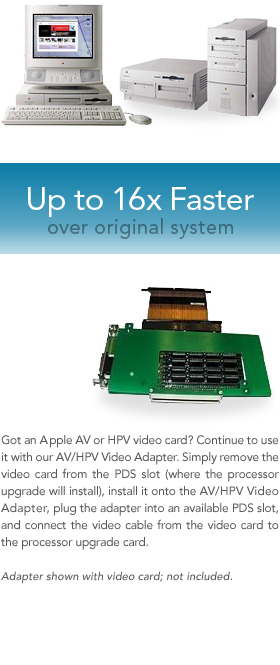

(1) If your computer's video card is an Apple® AV or HPV video card (or similar card in a Mac OS clone), you will require the Crescendo/NuBus Video Adapter (part no. C61A-7181; sold separately).
(2) Depending on computer's bus speed, upgrade will auto-configure to highest achievable speed ranging from 477-500 MHz.
| Key Benefits | |||||||||||||
|
Faster performance—up to 16x overall speed improvement over original system Supports 7100 & 8100 PDS-based AV or HPV (High Performance Video) card with optional adapter 100% compatible with existing hardware and software Clear and concise documentation for simple installation |
|||||||||||||
| Mac Compatibility | |||||||||||||
|
Power Mac 6100, 7100(1), and 8100(1) series Performa® 611X series Workgroup Server 6150/60, 8150/110(1), 9150/80(1) Power Computing 100, 120 Radius System 100(1), 81/100(1) Supports up to Mac OS® 9.1 |
|||||||||||||
| Technical Specifications | |||||||||||||
Specifications subject to change without notice.
|
|||||||||||||
