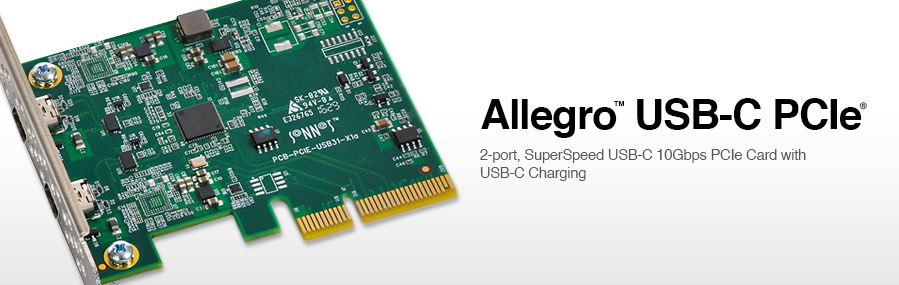

Computers with Allegro USB-C PCIe Cards
Add SuperSpeed+ USB Technology

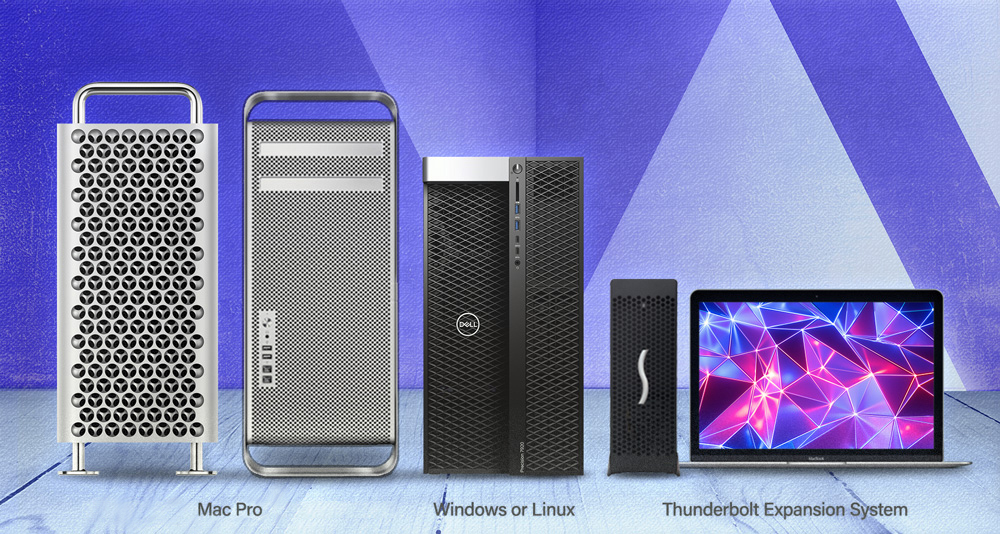

Add Two Powerful 10Gbps USB-C (USB 3.1 Gen 2) Connections to Your Mac Pro Tower,
Windows PC, Linux Computer(1), or Thunderbolt to PCIe Card Expansion System(3)

Up to 2 Times As Fast As USB 3.0 Connections

When it comes to supporting the fastest USB drives available, your computer’s USB 3.0 ports are perfectly adequate… for connecting peripherals that don’t depend on the ultimate USB 3.1 speeds. However, common USB 3.0 ports can be underachievers—at 5Gbps, they can’t support the maximum performance from many storage devices, and may not provide enough power to enable them to operate. You need SuperSpeed+ USB. You need Sonnet’s Allegro USB-C PCIe card.

The Allegro™ USB-C PCIe supports data transfers at up to twice as fast as USB 3.0, and can also deliver 15W of power per port to USB-C bus-powered devices (three times the 4.5W specified in the USB 3.0 spec). Don’t settle for mediocre performance or insufficient power for the fastest SSDs—install an Allegro USB-C card to instantly add two Gen 2 USB 3.1 ports to your system and take full advantage of today’s SSD performance.

Speed and Power

Sonnet's Allegro USB-C PCIe computer card supports data transfers up to 960 MB/s when connected to a USB-C Gen 2 SSD RAID device—transfers complete in half the time compared with using a USB 3.0 2.5-inch SSD! Sonnet specially engineered the Allegro USB-C card to provide 15W of power through each of its ports. The ports communicate with the host that 3A of VBUS current is available, enabling this Sonnet solution to support USB-C bus-powered SSDs and SSD RAID devices that need 15W during demanding write operations.

Key Features

SuperSpeed+ USB Technology—Adds two 10Gbps USB-C (USB 3.1 Gen 2) ports to your Mac Pro® with PCIe slots, Windows® PC, Linux computer or Thunderbolt™ to PCIe card expansion system; transfers data up to 2x as fast as USB 3.0 connections

Super-Powered Ports—Supports USB-C bus-powered SSD, SSD RAID, and hard drive devices with up to 15W (3.0A) power per port

Protected Ports—Independent power regulation isolates each port to prevent cross-coupled power glitches that may cause accidental disconnects

Resettable Fuses—Device overcurrent fuses are resettable—just shut down your machine to reset a fuse without permanent damage to card or computer

PCIe Data Link Auto-Negotiation—Card auto-negotiates one lane data link in a PCIe 3.0 slot and two lanes in a PCIe 2.0 slot, ensuring full 10Gbps performance in either generation PCIe slot

Broad USB Device Support & Compatibility—Supports storage, hubs, and other USB-IF compliant USB devices

Supports Hot-Swappable Device Connection—Plug in and disconnect peripherals without shutting off your computer

Optimized for Thunderbolt—Provides maximum performance over Thunderbolt

Easy Installation—Quick and easy user installation into any available PCIe slot

Shadow

Sonnet Advantages:

USB-C Ports Power Icon

Regulates Power to Each Port

Ordinary USB-C adapter cards deal with power delivered through the ports as an afterthought, requiring an additional power source for the card and providing little regulation. The Allegro USB-C PCIe is no ordinary adapter card. The Allegro card regulates its own power without requiring a back-of-the card power cable connection, thus enabling full compatibility in any computer or Thunderbolt expansion chassis that doesn’t have these power connectors available.

Sonnet’s Allegro USB-C is unique in regulating power to each port independently, giving each one protection from power glitches on the adjacent port. Without this protection (such as found on an ordinary card), connects and disconnects of one device may cause auto-disconnects of the other.

Resettable Fuses Icon

Resettable Fuses

The Allegro USB-C card features a resettable fuse on each port to protect the card and computer should there be a cable or peripheral failure. Should a fuse trip on the Sonnet card, you can reset it simply by shutting down the computer.

PCIe Auto-Negotiation Icon

PCIe Auto-Negotiation

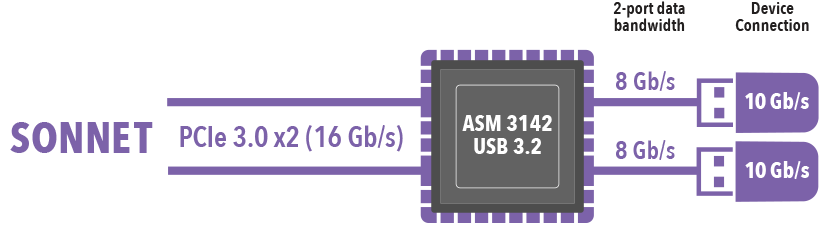

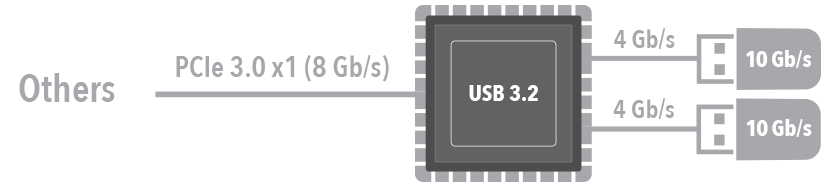

Sonnet's Allegro USB-C PCIe features PCI Express auto-negotiation. The card automatically negotiates to a x1 data link in a PCIe 3.0 slot, and to a x2 link in a PCIe 2.0 slot, giving full bandwidth to both generations of PCIe slots, ensuring great performance in any configuration.

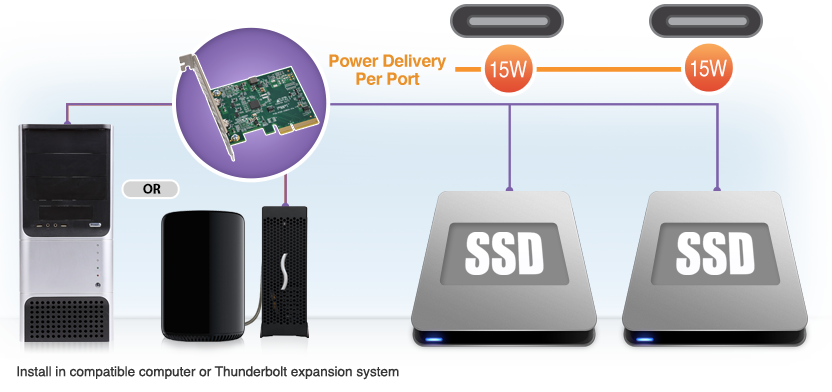

Allegro USB-C 15W Power Per Port Illustration

Specially engineered to provide 15W of power through each port to support USB-C
bus-powered SSDs and SSD RAID devices that need 15W during demanding write operations

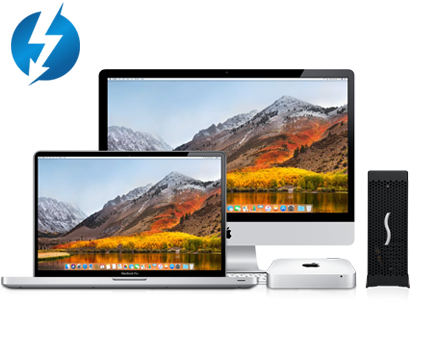

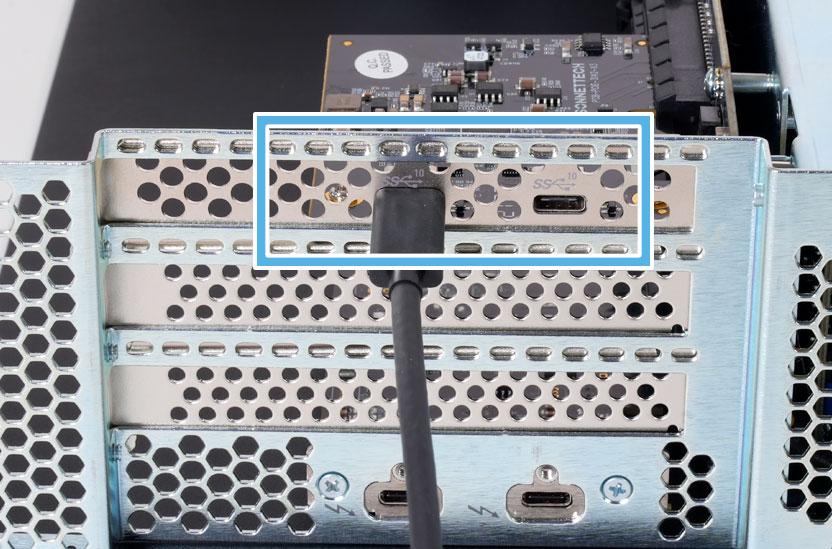

Mac Computers with Echo Express III-DOptimized for Thunderbolt

Got a Thunderbolt connection, but no PCIe slot? The Allegro USB-C PCIe card is ideal for use in any Thunderbolt 2 or Thunderbolt 3 to PCIe card expansion chassis, including Sonnet’s Echo Express™ or xMac™ Thunderbolt to PCI Express card expansion systems, offering full performance wherever you install it—now you can add dual USB-C ports in any current Sonnet Thunderbolt chassis.

Easy Installation

This Allegro USB-C PCIe card installs easily into any PCIe x4 (mechanical) slot; both low-profile and full-height mounting brackets are included. The Sonnet card features hot-pluggable and hot-swappable device connection support with automatic device configuration, and works with all USB-IF compliant USB peripherals.

 Computer hardware shown in photos for illustration purposes; items sold separately.
See Tech Specs Tab for footnotes
Part No.
USB3C-2PM-E Allegro USB-C PCIe
Hardware
Warranty 5-year
Form Factor PCIe x4 low-profile computer card; full-height mounting bracket attached, low-profile bracket included
Bus Interface PCI Express 2.0 x2, or 3.0 x1 auto-negotiate
Peripherals Supported Industry standard USB 3.1 Gen 2, 3.0, 2.0, and 1.1
Bus Powered Peripherals Supported
  • HD, SSD, SSD RAID, DVD & Blu-ray devices
  • 3A per port advertised using USB-C CC (Channel Configuration)
  • Up to 15W per port for operation or charging
Cables Supported
  • USB-C 10Gbps
  • USB-C 15Gbps
  • Thunderbolt 3 40Gbps (0.5-meter only)
  • Thunderbolt 3 20Gbps
Chipset ASMedia 1142
RoHS Compliant Yes
Package Contents
  • Allegro USB-C PCIe Adapter Card with attached full-height mounting bracket
  • Low-profile mounting bracket
  • Documentation
USB Support
Number of Ports 2 external
Standard Complies with OHCI (Open Host Controller Interface), EHCI (Enhanced Host Controller Interface), and xHCI (eXtensible Host Controller Interface) standards
UASP USB attached SCSI protocol supported under
macOS 10.10 & 10.12+, Windows 10
Chipset Throughput 10Gbps combined port throughput
Number of Devices Supported Up to 31
Hot Plug Supports hot-pluggable and hot swappable device connection



Specifications subject to change without notice.

white space









Mac Compatibility

Mac Pro® 3,1 4,1 or 5,1

macOS 10.10.5, 10.12.6+(2)
(not compatible with macOS 10.11)

macOS High Sierra compatible

PC Compatibility

PC desktop

Windows 10, 8.1, 7

Windows Server 2016, 2012, 2008 (64-bit editions)

Linux Compatibility

Computer with PCIe

Linux 4.12+ Kernel (LTS version only)

Thunderbolt Compatibility

Mac or PC via a Thunderbolt 2 or Thunderbolt 3 PCIe expansion system(3)

macOS 10.12.6+(2)

Windows 10 Build 1703 or newer (64-bit edition)


Technical Notes

  1. Linux supports only 5Gb transfer rate as of 4.12.13 Kernel.
  2. macOS erroneously reports a 5Gbps connection when connected at 10Gbps.
  3. Not compatible with Thunderbolt 1 PCIe Expansion systems.
